Q
What are Dell Optical Transceivers?
A

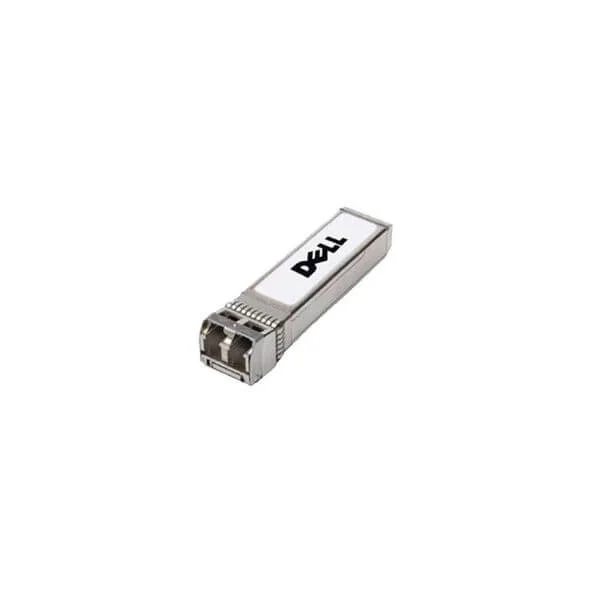

Dell Optical Transceivers are hot-pluggable modules that enable high-speed fiber connectivity for Dell switches, routers and storage arrays, supporting data rates from 1GbE to 100GbE.
Q
Which form factors are available for Dell Optical Transceivers?
A
Dell offers SFP, SFP+, SFP28, QSFP+, QSFP28 and CFP form factors to cover 1GbE, 10GbE, 25GbE, 40GbE and 100GbE applications in single-mode and multi-mode fiber networks.
Q
How do I choose the right Dell transceiver for my network?
A
Select based on port speed, fiber type (single-mode or multi-mode), required reach (e.g., 300m to 80km), connector type (LC, SC), and Dell model compatibility to ensure optimal performance.
Q
What fiber types and distances do Dell Optical Transceivers support?
A
Dell modules support OM1/OM2/OM3/OM4 multi-mode fiber up to 550m and single-mode fiber up to 80km, depending on the transceiver model and data rate.
Q
Are Dell Optical Transceivers compatible with non-Dell equipment?
A
Dell transceivers are MSA-compliant and may work in non-Dell devices, but full compatibility and warranty coverage require validation with official Dell platforms.
Q
How do I install a Dell Optical Transceiver?
A
Simply remove the dust cap, align the module key, and slide it into the SFP/QSFP slot until it clicks; no reboot is required for hot-swap capable Dell hardware.
Q
How can I verify that a Dell transceiver is recognized by my switch?
A
Access the CLI and run “show interface transceiver details” or use the Dell OpenManage Network Manager to confirm module type, serial number and operational status.
Q
What diagnostics are available for Dell Optical Transceivers?
A
Dell transceivers support Digital Diagnostic Monitoring (DDM) to report real-time optical power, temperature, voltage and laser bias current via standard MSA registers.
Q
How do I clean and maintain Dell fiber transceivers?
A
Use lint-free swabs and 99% isopropyl alcohol to clean connector end faces before insertion; store modules with dust caps when not in use to prevent contamination.
Q
Can I use third-party optical transceivers in Dell switches?
A
While many third-party modules are MSA-compliant, Dell’s firmware may block unbranded optics; for guaranteed compatibility and support, use Dell-branded transceivers.
Q
How do I identify the correct Dell transceiver part number?
A
Locate the Dell Product ID (PID) on the label (e.g., 0N4MNX) and cross-reference with Dell’s documentation to confirm speed, reach and compatible platforms.
Q
What warranty covers Dell Optical Transceivers?
A
All Dell-branded transceivers carry a one-year limited hardware warranty and are eligible for ProSupport or ProSupport Plus coverage when purchased with a valid service contract.
Q
How much power do Dell Optical Transceivers consume?
A
Power consumption varies by form factor: SFP/SFP+ modules typically use <1W, SFP28 <1.5W and QSFP28 modules around 3.5W; exact values are in the transceiver datasheet.
Q
What operating temperature range do Dell transceivers support?
A
Standard Dell optical modules operate between 0°C and 70°C; extended-temperature versions cover –40°C to 85°C for harsh-environment deployments.
Q
How do I troubleshoot link issues with Dell transceivers?
A
Verify cable type, distance and cleanliness; confirm transceiver settings with CLI diagnostics; update switch firmware; and review SFP/QSFP error logs for signal faults.
Q
Where can I purchase genuine Dell Optical Transceivers?
A
Buy directly from Dell’s online store or authorized partners to ensure genuine parts, full warranty support and access to Dell technical resources.
