EP1Z01IPHO

EP1Z01IPHO Specification

Type

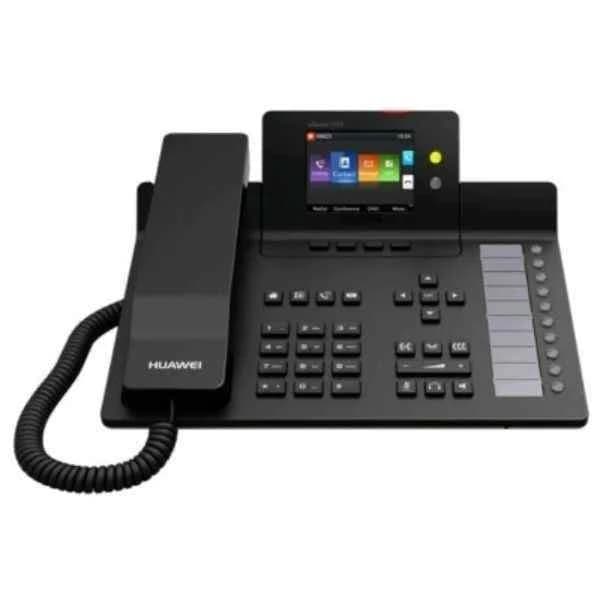

Huawei eSpace 7910 IP Phone

Screen

2.83-inch, 320 x 240 pixels, 260,000 colors, color screen

LEDs

Line, Message Waiting Indicator (MWI), Mute, Speaker, Call History, Headset, and programmable button LEDs

Angle Adjustment

2 adjustable angles

Buttons

· 2 line buttons
· 5 navigation buttons (up, down, left, right, OK)
· 10 programmable buttons
· 4 soft keys
· 4 fixed function buttons with LEDs (speaker, headset, mute, and call history)
· 7 fixed function buttons without LEDs (home, message, volume, contacts, hold, conference, and transfer

Ethernet Ports

2 GE ports: 10/100/1,000 Mbit/s adaptive, support for VLAN configuration

Handset Port

RJ-9

Headset Port

RJ-9

PoE

Class 1

Power Adapter

Input: 100V to 240V AC
Output: 5V DC, 2A

Dimensions

9 in. x 8.1 in. x 4 in (231 mm x 208 mm x 103 mm)

Power Consumption

About 3.84W

Net Weight

About 1.8 lb. (0.85 kg)

Network protocols

TCP/IP, SIP, and SDP

UDP, RTP, and RTCP

DHCP, DNS, and PPPoE

HTTP, HTTPS, SNTP, and XCAP

Multiple lines

6

Multiple accounts

3

Audio codecs

G.711a, G.711μ

G.722, G.722.1, G.722.2

G.729AB, iLBC, Opus, AAC-LD

Audio features

· Dual-tone Multiple Frequency (DTMF): Inband/RFC2833
· Anti-clipping (ACLP)
· Acoustic Echo Cancelation (AEC)
· Automatic Gain Control (AGC)
· Adaptive Jitter Buffer (AJB)
· Automatic Noise Restraint (ANR)
· Comfort Noise Generation (CNG)
· Hearing Aid Compatibility (HAC)
· Packet Loss Concealment (PLC)
· Voice Activity Detection (VAD)
· Side Tone Cancelation
· Voice Quality Monitor (VQM)
· Buzz Cancelation

Call history

· Up to 100 records for each dialed, received, and missed call
· Missed call notification

Contacts

· Up to 1,000 contacts
· Contact query, import, and export

Languages

Display:

Chinese (simplified and traditional)

English, Portuguese, Spanish,

French, Arabic, Turkish, Russian

German, Polish, and Hungarian

Input:

Chinese (simplified and traditional)

English, French, Portuguese

Spanish, Arabic, Polish, Hungarian, and Russian

Ringtone

· 10 system ringtones
· Ringtone import

Wallpaper

· 12 system wallpapers
· Wallpaper import capability

Local conference

· 6-party audio conference
· Participant status display
· Operations including adding, muting, and removing participants

Basic voice services

Call waiting, call hold, call transfer, call forward, call deflection

DND

Advanced secretary service

Call park

Pickup

Group pickup

Distinctive ring

Automatic call back

Voicemail

Abbreviated dial

BLF

Paging broadcast

Hunt group

Password-based call barring

Emergency call

Corporate directory

Contact query, direct dial, and adding contacts to the local address book

Name and department display

Peer party€™s name, department, and phone number displays for incoming and outgoing calls

Profile picture display

Peer party€™s profile picture displays for incoming and outgoing calls

Linkage

· Call control using Desktop Client
· Status synchronization between Desktop Client and IP Phone 7910/7950

Call recording

· Recording during audio calls
· Recorded information saved on the server
· Recording control (start or stop) on IP Phone 7910/7950

Instant conference

Instant audio conference with the conference button

Group conference

Audio conference with participants in a contact group
