Question 1

What are Cisco Catalyst 4500 switch modules?

Accepted Answer

Cisco Catalyst 4500 switch modules are line cards that plug into the Catalyst 4500 chassis to provide switching, routing, and advanced network services.

Question 2

How do I choose the right module for my Catalyst 4500 chassis?

Accepted Answer

Select a module based on required port density, interface type (Ethernet, Gigabit, 10 Gigabit), throughput, and feature set matching your network design.

Question 3

Are Cisco 4500 switch modules hot-swappable?

Accepted Answer

Yes. Cisco Catalyst 4500 switch modules support hot-swapping, allowing insertion or removal without powering down the chassis.

Question 4

How do I install a module in the Catalyst 4500 chassis?

Accepted Answer

Power off the chassis, align the module with the card guide, slide it into the slot until it clicks, secure the captive screws, and power the chassis back on.

Question 5

Which supervisor engines are compatible with Catalyst 4500 modules?

Accepted Answer

Supported supervisors include Supervisor Engine 7-E, Supervisor Engine 6-E, and Supervisor Engine 2T, offering varying forwarding rates and features.

Question 6

Can I mix different line card speeds in one Catalyst 4500 chassis?

Accepted Answer

Yes. The Catalyst 4500 supports mixed line card speeds (1G, 10G, 40G) as long as the supervisor engine supports the combined throughput.

Question 7

What is the maximum throughput per slot on Catalyst 4500 modules?

Accepted Answer

Maximum throughput ranges from 32 Gbps per slot on older modules up to 480 Gbps on Supervisor Engine 7-E with compatible line cards.

Question 8

How do Catalyst 4500 modules handle power and cooling?

Accepted Answer

Switch modules draw power from shared chassis power supplies and rely on redundant fans and airflow design to maintain optimal temperatures.

Question 9

Which uplink modules are available for the Catalyst 4500 series?

Accepted Answer

Available uplinks include 4-port 10G, 2-port 40G, and 8-port 1G modules, enabling high-capacity network aggregation and uplink redundancy.

Question 10

How can I upgrade from a 4500 V1 module to a newer V2 module?

Accepted Answer

Power down the chassis, replace the module, update the IOS image to a supported release, and verify module functionality via CLI.

Question 11

What IOS features do Catalyst 4500 modules support?

Accepted Answer

They support advanced Layer 2/3 switching, MPLS, QoS, IPv6, VSS, Cisco TrustSec, and Smart Net Total Care capabilities.

Question 12

How do I validate module compatibility before purchase?

Accepted Answer

Consult the Cisco compatibility matrix for the Catalyst 4500 series or use the Cisco Feature Navigator to verify supported modules and software versions.

Question 13

Can Catalyst 4500 modules be managed via Cisco DNA Center?

Accepted Answer

Yes. Supported modules integrated with Cisco IOS XE can be managed, monitored, and automated through Cisco DNA Center.

Question 14

What security features are available on 4500 switch modules?

Accepted Answer

They include 802.1X port authentication, MACsec encryption, Dynamic ARP Inspection, DHCP snooping, and Cisco TrustSec segmentation.

Question 15

How do I monitor module health and performance?

Accepted Answer

Use CLI commands like show module, show interface, and show environment, or SNMP and Cisco Prime Infrastructure for real-time monitoring.

Question 16

What warranty and support options exist for Catalyst 4500 modules?

Accepted Answer

Cisco offers limited lifetime warranty with return-to-factory service, plus optional SMARTnet and Solution Support for expedited hardware replacement and software updates.

Cisco 4500 Switch Modules

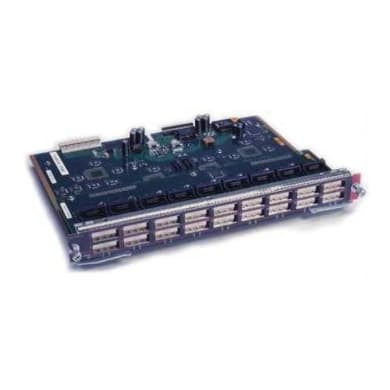

WS-X4418-GB (Catalyst 4500 Supervisor Engine V (2 GE),Console(RJ-45))

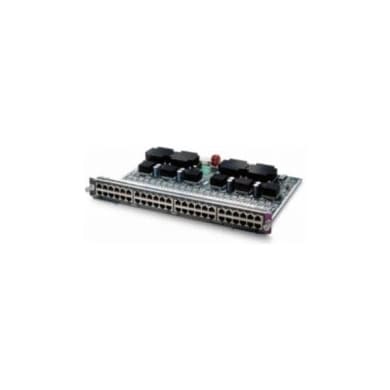

WS-X4748-RJ45-E (Catalyst 4506-E Fan Tray (Spare))

WS-X4748-UPOE+E (Catalyst 4503 Supervisor Engine SupII-Plus-TS, 12 10/100/1000 PoE+8 SFP slots)

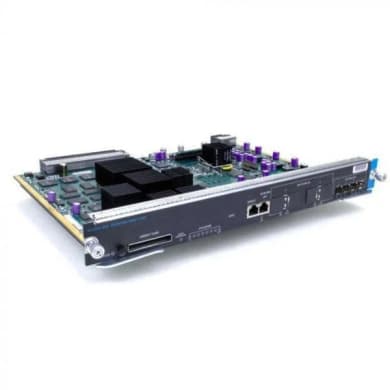

WS-X4516-10GE (Model:Cisco Catalyst 4500-X 8 Port 10GE Ethernet port uplink Module C4KX-NM-8SFP+)

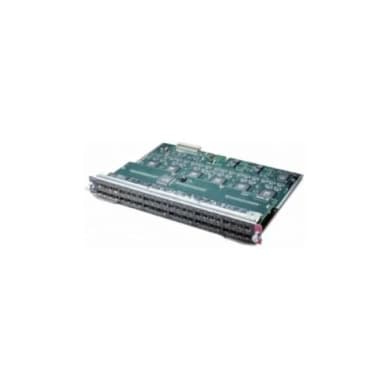

WS-X4448-GB-SFP (Catalyst 4500 E-Series Supervisor Engine 6-E Lite, 2x10GE(X2) w/ Twin Gig)

WS-X45-SUP7L-E (Catalyst 4500 6-Port 10/100/1000 PoE or SFP (Optional) Linecard)

WS-X45-SUP6L-E (Catalyst 4507R-E/4510R-E Clock Module (Spare))

WS-X45-SUP8-E (Catalyst 4500 PoE+ Ready 10/100/1000, 48-Port (RJ45) Linecard)

WS-X45-SUP6-E (Catalyst 4500 Gigabit Ethernet Module, 6-Ports (GBIC) Base-X GE Linecard)

WS-X45-SUP7-E (CAT4500 E-SERIES SUPERVISOR 848GBPS)

WS-X4013+ (Catalyst 4500 E-Series Linecard 24-Port GE (SFP))

WS-X4596-E (Catalyst 4500-X Series Switches Front To‑Back Fan, Spare)

WS-X4306-GB (Catalyst 4500 48-Port 100BASE-X (SFPs Optional) Base-X FE Linecard)

WS-X4232-GB-RJ (Catalyst 4500 PoE 802.3af 10/100, 48-Ports (RJ21) Linecard)

WS-X4515 (Catalyst 4500 E-Series Supervisor 8L-E, Spare)

WS-X4424-GB-RJ45 (48port FE SFP FTTH module, GLC-FE-100BX-D48 is required Base-X FE Linecard)

WS-X4K-CLOCK-E (Catalyst 4500 10/100 Module,24-Ports(RJ45) Linecard)

WS-X4582-E (Catalyst 4500 E-Series Line card 12-Port GE (SFP))

WS-X4248-RJ21V (Catalyst 4500 48-Port 1000Base-X (SFPs Optional) Base-X GE Linecard)

WS-X4224-RJ45V (Catalyst 4500 Gigabit Ethernet Module, 2-Ports (GBIC) Fiber Migration)
