A9K-2T20GE-E
Original Stock
Ready to Ship

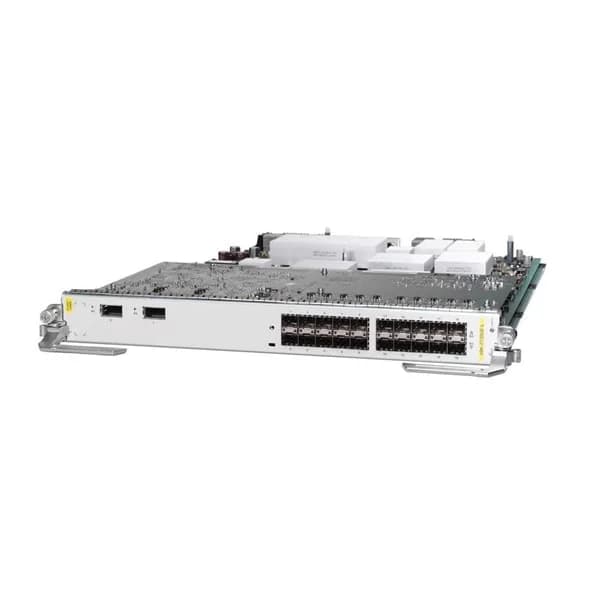

Cisco ASR 9000 Line Card A9K-2T20GE-E 2-Port 10GE, 20-Port G...
FEATURED DEAL
Name:
A9K-2T20GE-E
- Description:
- Cisco ASR 9000 Line Card A9K-2T20GE-E 2-Port 10GE, 20-Port GE Extended LC, Req. XFPs and SFPs
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Cisco
- GTIN:
- 882658272448
- Condition:
- Warranty:
- 3
- List Price:
$82,500.00
- Price:
$43,845.0046.9% off
Quantity:
1
Business price:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
A9K-2T20GE-E Overview
A9K-2T20GE-E is a high-performance Ethernet module designed for next-generation router and switch deployments. It delivers up to 20Gbps data rate through SFP+ connectors and is built with a modular form factor to facilitate seamless integration into network infrastructures such as data centers and carrier-grade equipment. This module is engineered to support demanding applications while ensuring reliable high-speed connectivity with protocols like TCP/IP and MPLS.
Optimized for rigorous operational environments, the A9K-2T20GE-E offers an operating temperature range of 0 to 70°C and is well-suited for expanding data center capacity, upgrading server network interfaces, and connecting high-speed networks. Fully compatible with Cisco ASR9000 Series Routers, this Ethernet module incorporates features such as auto-negotiation, jumbo frames, and QoS, ensuring enhanced performance and network efficiency.
A9K-2T20GE-E price is $43,845.00, a 46.9% saving from the Cisco list price of $82,500.00. A9K-2T20GE-E is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for A9K-2T20GE-E for additional pricing. Browse the full Router Asr 9000 Modules And Cards series or explore all Cisco products.
A9K-2T20GE-E Specifications
- Weight
- N/A
- Height
- N/A
- Depth
- N/A
- Width
- N/A
- Power Consumption
- 25W
- Expansion Slots
- N/A
- Form Factor
- Modular
- Operating Temperature
- 0 to 70°C
- Storage Temperature
- -40 to 85°C
- Input Voltage
- 3.3V
- Connector Type
- SFP+
- Product Type
- Network Module / Network Card
- Module Type
- Ethernet
- Interface Ports
- Ethernet
- Data Rate
- 20Gbps
- Supported Protocols
- TCP/IP, MPLS
- Compatibility
- Cisco ASR9000 Series Routers
- Max Speed
- 20Gbps
- Supported Features
- Auto-negotiation, Jumbo Frames, QoS
- Product Name
- Cisco A9K-2T20GE-E
A9K-2T20GE-E Use Case
High-Capacity Data Center Interconnect for Cloud Service Providers
A tier-1 cloud provider deploys the Cisco ASR 9000 with A9K-2T20GE-E line cards (2-port 10GE via XFP, 20-port GE via SFP) to build resilient metro and long-haul links between multiple data centers. By leveraging high-density 1 Gigabit Ethernet aggregation alongside 10 Gigabit Ethernet uplinks, the provider achieves 40% greater port density in a single slot, reduces fiber termination points, and cuts OPEX by 25%. The outcome is seamless east-west traffic scaling and sub-millisecond latency for mission-critical workloads.
Scalable Metro Ethernet Aggregation for Regional Service Providers
A regional telecom operator integrates A9K-2T20GE-E line cards into ASR 9000 POP routers to consolidate business customer access at the metro edge. The 20 extended GE ports connect customer CPE via SFP transceivers, while the 2 high-speed 10GE XFP uplinks aggregate traffic into the core network. This setup delivers on-demand bandwidth provisioning, 99.99% service availability, and simplified network operations. The result is accelerated time-to-revenue and SLA-driven QoS for enterprise Ethernet services.
Resilient Mobile Backhaul Infrastructure for Telecom Operators
A mobile operator builds an LTE backhaul ring using Cisco ASR 9000 chassis outfitted with A9K-2T20GE-E cards to interconnect cell sites and the core network. Each card’s 20 GE ports carry site-level traffic over SFP links, while the 2 XFP-based 10GE ports form a protected ring topology. This design ensures sub-50 ms failover, 30% lower power consumption per port, and seamless migration to 5G backhaul. The outcome is a future-proof, low-latency transport layer that meets stringent mobile SLA requirements.
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| A9K-2T20GE-E |  A9K-40GE-E |  A9K-40GE-L |  A9K-4T-E |  A9K-8T-B | |
|---|---|---|---|---|---|
| Product Type | Network Module / Network Card | Network Module | Network Module / Network Card | Network Card | Network Module / Network Card |
| Module Type | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Data Rate | 20Gbps | 40Gbps | 40Gbps | 10G | 1G |
| Connector Type | SFP+ | QSFP+ | QSFP+ | SFP+ | RJ-45 |
| Supported Protocols | TCP/IP, MPLS | TCP/IP, MPLS | TCP/IP / Ethernet | TCP/IP | TCP/IP |
| Form Factor | Modular | Modular | Modular | PCIe | Modular |
| Operating Temperature | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
| Storage Temperature | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C |
| Input Voltage | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Compatibility | Cisco ASR9000 Series Routers | Cisco (ASR 9000 Series) | Cisco | Cisco, Juniper, Arista, Dell, HP | Cisco ASR 9000 Series |
| Max Speed | 20Gbps | 40Gbps | 40Gbps | 10Gbps | 1Gbps |
| Supported Features | Auto-negotiation, Jumbo Frames, QoS | Auto-negotiation, Hot-swap, Jumbo Frames, QoS | Auto-negotiation / Jumbo Frames / QoS | Auto-negotiation, Wake-on-LAN, Jumbo Frames, QoS | Auto-negotiation, Wake-on-LAN, Jumbo Frames, QoS |
| Power Consumption | 25W | N/A | N/A | 15W | N/A |
| Interface Ports | Ethernet | QSFP+ | Ethernet | SFP+ | Ethernet |
| Expansion Slots | N/A | N/A | N/A | N/A | N/A |
| Product Name | Cisco A9K-2T20GE-E | Cisco A9K-40GE-E | A9K-40GE-L | A9K-4T-E 10GbE PCIe Network Card | Cisco ASR 9000 A9K-8T-B Ethernet Module |
| Height | N/A | N/A | N/A | 1.5 inches | N/A |
| Width | N/A | N/A | N/A | 3.4 inches | N/A |
| Depth | N/A | N/A | N/A | 7.0 inches | N/A |
| Weight | N/A | N/A | N/A | 0.8 lbs | N/A |
Reviews & Ratings
B
Bruce Hamilton
4
Great mix of 10GE and GE ports for aggregation use.
A
Anthony Moore
5
Consistent throughput and low error rates.
G
Graham Lewis
4
Cisco reliability you expect in core environments.
M
Martin Blake
4
Strong performer for extended port density needs.
Questions & Answers
What is the Cisco ASR 9000 Line Card A9K-2T20GE-E?
The Cisco ASR 9000 Line Card A9K-2T20GE-E is an extended modular card offering 2×10 GbE and 20×1 GbE ports for the ASR 9000 Series, requiring separate XFP and SFP transceivers.
Which ports does the A9K-2T20GE-E line card provide?
The A9K-2T20GE-E delivers two 10 Gigabit Ethernet (10 GbE) ports and twenty 1 Gigabit Ethernet (1 GbE) ports in a single extended line card.
What transceivers are required for the A9K-2T20GE-E?
The A9K-2T20GE-E requires Cisco-compatible XFP modules for 10 GbE and SFP modules for 1 GbE ports, sold separately.
Which Cisco chassis support the A9K-2T20GE-E?
The A9K-2T20GE-E is compatible with Cisco ASR 9006, ASR 9010, and ASR 9922 chassis running supported IOS-XR software.
What is the total forwarding capacity of the A9K-2T20GE-E?
The A9K-2T20GE-E delivers up to 480 Gbps of aggregate forwarding capacity when fully populated.
How do I install the A9K-2T20GE-E line card?
Power down the ASR 9000 chassis, slide the A9K-2T20GE-E into an available slot until it latches, then power up and verify with show platform commands.
Can I replace the A9K-2T20GE-E while the system is running?
Yes, the A9K-2T20GE-E supports hot swap; you can insert or remove it without powering down the chassis.
Does the A9K-2T20GE-E support Layer 2 and Layer 3 features?
Yes, it supports advanced Layer 2 switching and full Layer 3 routing protocols including OSPF, BGP, and MPLS.
What are the environmental specifications for the A9K-2T20GE-E?
It operates from 0 °C to 45 °C with 5%–85% noncondensing humidity, per Cisco ASR 9000 environmental guidelines.
How much power does the A9K-2T20GE-E consume?
Typical power consumption for the A9K-2T20GE-E is approximately 90 Watts under full load.
Which IOS-XR software versions are required?
The A9K-2T20GE-E requires Cisco IOS-XR Release 5.3.2 or later for full feature support and stability.
Can I deploy multiple A9K-2T20GE-E cards in one chassis?
Yes, you can install up to six A9K-2T20GE-E cards in an ASR 9006 chassis or up to ten in an ASR 9010 chassis, subject to slot availability.
How does the A9K-2T20GE-E support high availability?
When paired with dual Route Switch Processors and redundant power supplies, the A9K-2T20GE-E delivers non-stop forwarding and chassis-level redundancy.
What optics options are available for 10 GbE ports?
Supported 10 GbE XFP optics include SR, LR, ER, ZR, and DWDM variants from Cisco’s transceiver portfolio.
What warranty and support options are offered?
The A9K-2T20GE-E comes with a Cisco limited lifetime hardware warranty and optional SMARTnet® service for 24/7 support and advanced replacement.
How do I verify the operational status of the A9K-2T20GE-E?
Use the CLI command ‘show platform hardware slot <slot> status’ to confirm module health, port state, and transceiver diagnostics.
