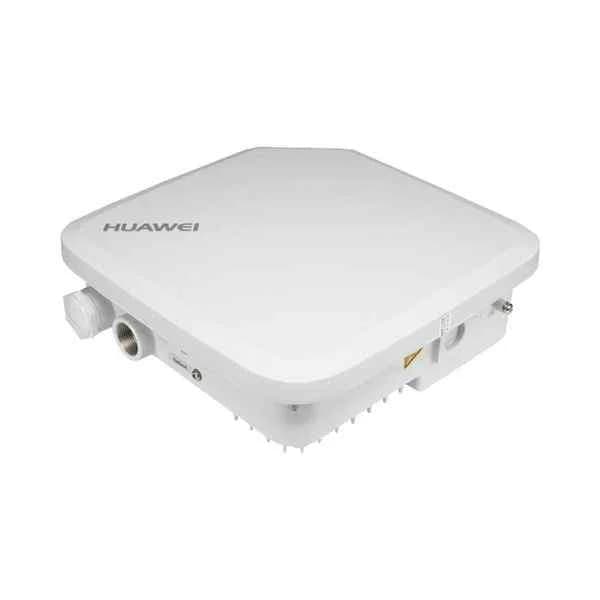

AP6510DN-AGN-USA

AP6510DN-AGN-USA Specifications

Mainframe

AP6510DN-AGN-USA Mainframe (11n, General AP Outdoor,

2x2 DoubleFrequency, 63mW (2.4G), 63mW (5G), United States dedicated)

Technical

Dimensions (H W D)

3.2 in. x 10 in. x 10 in. (83 mm x 255 mm x 255 mm)

Weight

4.8 lb. (2.2 kg)

System memory

128 MB DDR2

32 MB Flash

Power

Power input

PoE, in  compliance with IEEE 802.3at

Maximum power consumption

25.5W

Note: Maximum power consumption depends on local laws

Environment

Operating temperature

-40oF to 140oF (-40oC to 60oC)

Storage temperature

-40oF to 158oF (-40oC to 70oC)

Humidity

0% to 100% (Non-condensing)

Waterproof grade

IP67

Altitude

196.8 ft. to 16,404.1 ft. (-60m to 5,000m)

Radio

Antenna Type

Dual-polarization or common outdoor

Maximum Number of Concurrent Users

128

Maximum Transmit Power

2.4 GHz: 26 dBm

5 GHz: 20 dBm

You can adjust the transmit power to the maximum of 20 dB in 1 dB steps.

Note: Actual transmit power depends on local laws and regulations.

Maximum Number of Non-overlapping Channels

2.4 GHz

802.11b/g

·20 MHz: 3

802.11n

·20 MHz: 3

·40 MHz: 1

5 GHz

802.11a

·20 MHz: 5

802.11n

·20 MHz: 5

·40 MHz: 2

Note: The number of non-overlapping channels allowed varies in different countries.

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate: (2.4 GHz and 5 GHz)

GI2 = 800 ns

GI = 400 ns

20 MHz (Mbit/s)

40 MHz (Mbit/s)

20 MHz (Mbit/s)

40 MHz (Mbit/s)

6.5 @ MCS10

13.5 @ MCS0

7.2 @ MCS0

15 @ MCS0

13 @ MCS1

27 @ MCS1

14.4 @ MCS1

30 @ MCS1

19.5 @ MCS2

40.5 @ MCS2

21.7 @ MCS2

45 @ MCS2

26 @ MCS3

54 @ MCS3

28.9 @ MCS3

60 @ MCS3

39 @ MCS4

81 @ MCS4

43.3 @ MCS4

90 @ MCS4

52 @ MCS5

108 @ MCS5

57.8 @ MCS5

120 @ MCS5

58.5 @ MCS6

121.5 @ MCS6

65 @ MCS6

135 @ MCS6

65 @ MCS7

135 @ MCS7

72.2 @ MCS7

150 @ MCS7

13 @ MCS8

27 @ MCS8

14.4 @ MCS8

30 @ MCS8

26 @ MCS9

54 @ MCS9

28.9 @ MCS9

60 @ MCS9

39 @ MCS10

81 @ MCS10

43.3 @ MCS10

90 @ MCS10

52 @ MCS11

108 @ MCS11

57.8 @ MCS11

120 @ MCS11

78 @ MCS12

162 @ MCS12

86.7 @ MCS12

180 @ MCS12

104 @ MCS13

216 @ MCS13

115.6 @ MCS13

240 @ MCS13

117 @ MCS14

243 @ MCS14

130 @ MCS14

270 @ MCS14

130 @ MCS15

270 @ MCS15

144.4 @ MCS15

300 @ MCS15

Note: Modulation Coding Scheme (MCS) index: Determines the spatial flow quantity, modulation, coding rate, and data rate

GI Indicates the period in nanoseconds the radio listens between packets

Receiver Sensitivity

2.4 GHz

802.11b (CCK)

·-97 dBm @ 1 Mbit/s

·-92 dBm @ 2 Mbit/s

·-92 dBm @ 5.5 Mbit/s

·-90 dBm @ 11 Mbit/ss

5 GHz

802.11a (Non-HT20)

·-90 dBm @ 6 Mbit/s

2.4 GHz

802.11g (Non-HT20)

·-92 dBm @ 6 Mbit/s

·-91 dBm @ 9 Mbit/s

·-90 dBm @ 12 Mbit/s

·-87 dBm @ 18 Mbit/s

·-83 dBm @ 24 Mbit/s

·-80 dBm @ 36 Mbit/s

·-76 dBm @ 48 Mbit/s

·-74 dBm @ 54 Mbit/s

2.4 GHz

802.11n (HT20)

·-92 dBm @ MCS0/8

·-89 dBm @ MCS1/9

·-86 dBm @ MCS2/10

·-82 dBm @ MCS3/11

·-79 dBm @ MCS4/12

·-74 dBm @ MCS5/13

·-73 dBm @ MCS6/14

·-71 dBm @ MCS7/15

2.4 GHz

802.11n (HT40)

·-89 dBm @ MCS0/8

·-86 dBm @ MCS1/9

·-83 dBm @ MCS2/10

·-79 dBm @ MCS3/11

·-76 dBm @ MCS4/12

·-72 dBm @ MCS5/13

·-70 dBm @ MCS6/14

·-68 dBm @ MCS7/15

5 GHz

802.11a (Non-HT20)

• ·-90 dBm @ 6 Mbit/s
• ·-89 dBm @ 9 Mbit/s
• ·-86 dBm @ 12 Mbit/s
• ·-84 dBm @ 18 Mbit/s
• ·-81 dBm @ 24 Mbit/s
• ·-77 dBm @ 36 Mbit/s
• ·-72 dBm @ 48 Mbit/s
• ·-71 dBm @ 54 Mbit/s

5 GHz

802.11n (HT20)

·-84 dBm @ MCS0/8

·-81 dBm @ MCS1/9

·-79 dBm @ MCS2/10

·-76 dBm @ MCS3/11

·-72 dBm @ MCS4/12

·-68 dBm @ MCS5/13

·-67 dBm @ MCS6/14

·-67 dBm @ MCS7/15

5 GHz

802.11n (HT40)

·-81 dBm @ MCS0/8

·-78 dBm @ MCS1/9

·-76 dBm @ MCS2/10

·-73 dBm @ MCS3/11

·-69 dBm @ MCS4/12

·-65 dBm @ MCS5/13

·-64 dBm @ MCS6/14

·-64 dBm @ MCS7/15
