42U enclosure without sides offers flexible customization.
AR2401
NETSHELTER SV 42U 600MMX1060MM DEEP ENCLOSURE WITHOUT SIDES...
FEATURED DEAL
Name:
AR2401
- Description:
- NETSHELTER SV 42U 600MMX1060MM DEEP ENCLOSURE WITHOUT SIDES BLACK
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Apc
- Condition:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By

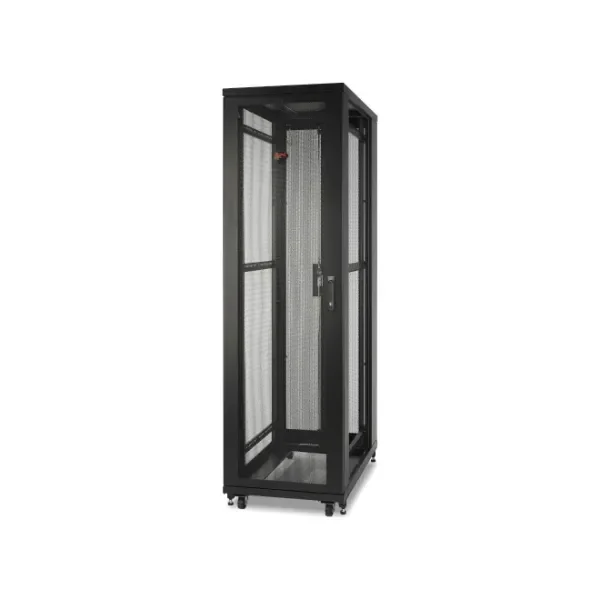

AR2401 Overview
AR2401 is an enclosed cabinet rack designed for demanding environments, featuring a 42U height with a standard 19-inch width and a depth in the 600–800mm range. It adheres to the 19″ mounting standard and is engineered to support up to 501–1000 lbs, ensuring reliable safeguarding for critical IT equipment in high-demand setups.
This AR2401 model incorporates a vented door design and integrated cable management for optimal organization and effective airflow. Further, it features passive cooling support, optional casters paired with included leveling feet, and a robust front door lock—making it ideal for network closets, data centers, telecom racks, and AV equipment installations.
AR2401 price is is available on request. Get immediate quote.
Request bulk order quote for AR2401 for additional pricing. Browse the full Apc Racks series or explore all Apc products.
AR2401 Specifications
- Product Type
- Rack
- Rack Type
- Enclosed Cabinet
- Mounting Type
- Floor Standing
- Rack Height (U)
- 42U
- Use Case
- Data Center / Networking Closet / Telecom
- Rack Width
- 19-inch
- Rack Depth
- 600–800mm
- Weight Capacity
- 501–1000 lbs
- Material
- Cold-Rolled Steel
- Door Type
- Vented Door
- Side Panels
- Removable
- Cable Management
- Horizontal
- Cooling Support
- Passive Ventilation
- Locking Mechanism
- Front Door Lock
- Casters
- Optional
- Leveling Feet
- Included
- Rails Included
- Yes
- Expansion Ready
- Yes
- Grounding Kit Included
- Yes
- Color
- Black
- Compliance
- EIA-310-D / RoHS / UL Listed
- Product Name
- AR2401 Enclosed Data Center Cabinet
- Height
- 73.5 inches
- Width
- 19 inches
- Depth
- 30 inches
- Weight
- 600 lbs
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
 AR2401 |  AR7589 |  AR3300X306 |  AR8602A |  AR8737 | |
|---|---|---|---|---|---|
| Product Type | Rack | Rack | Rack | Rack | Rack |
| Rack Type | Enclosed Cabinet | Enclosed Cabinet | Enclosed Cabinet | Enclosed Cabinet | Enclosed Cabinet |
| Mounting Type | Floor Standing | Floor Standing | Floor Standing | Floor Standing | Floor Standing |
| Rack Height (U) | 42U | 42U | 42U | 42U | 42U |
| Use Case | Data Center / Networking Closet / Telecom | Data Center / Networking Closet / Telecom / AV Rack | Data Center / Networking Closet / Telecom | Data Center / Networking Closet / Telecom / AV Rack | Data Center / Networking Closet / Telecom / AV Rack |
| Rack Width | 19-inch | 19-inch | 19-inch | 19-inch | 19-inch |
| Rack Depth | 600–800mm | 800–1000mm | 800–1000mm | 800–1000mm | 800–1000mm |
| Weight Capacity | 501–1000 lbs | 1001–2000 lbs | 501–1000 lbs | 501–1000 lbs | 1001–2000 lbs |
| Material | Cold-Rolled Steel | Cold-Rolled Steel | Cold-Rolled Steel | Cold-Rolled Steel | Cold-Rolled Steel |
| Door Type | Vented Door | Vented Door | Vented Door | Vented Door | Vented Door |
| Side Panels | Removable | Removable | Tool-less | Removable | Removable |
| Cable Management | Horizontal | Tool-less | Included | Included | Included |
| Cooling Support | Passive Ventilation | Passive Ventilation | Passive Ventilation | Passive Ventilation | Passive Ventilation |
| Locking Mechanism | Front Door Lock | Front Door Lock | Front Door Lock | Front Door Lock | Front Door Lock |
| Casters | Optional | Optional | Optional | Optional | No |
| Leveling Feet | Included | Included | Included | Included | Included |
| Rails Included | Yes | Yes | Yes | Yes | Yes |
| Expansion Ready | Yes | Yes | Yes | Yes | Yes |
| Grounding Kit Included | Yes | Yes | Yes | Yes | Yes |
| Color | Black | Black | Black | Black | Black |
| Compliance | EIA-310-D / RoHS / UL Listed | RoHS | UL Listed | RoHS | EIA-310-D / RoHS / UL Listed / CE |
| Product Name | AR2401 Enclosed Data Center Cabinet | AR7589 Enclosed Cabinet Rack | AR3300X306 Enclosed Rack Cabinet | AR8602A Enclosed Server Rack | AR8737 Enclosed Cabinet Rack |
| Height | 73.5 inches | 78 inches | 73.5 inches | 73.5 inches | 73.5 inches |
| Width | 19 inches | 24 inches | 23 inches | 23 inches | 24 inches |
| Depth | 30 inches | 39 inches | 36 inches | 39 inches | 36 inches |
| Weight | 600 lbs | 280 lbs | 850 lbs | 350 lbs | 450 lbs |
Reviews & Ratings
C
Caitlin Rhodes
4
Strong frame and easy integration into our rack row.
G
Glen Whitaker
5
Reliable and spacious cabinet for scalable deployments.
A
Ariana Cole
3
Excellent airflow flexibility.
S
Stephen Kerr
4
Professional rack solution with solid durability.
Questions & Answers
What are the external dimensions of the NETShelter SV 42U 600mm x 1060mm Deep Enclosure (SKU: AR2401)?
The NETShelter SV 42U enclosure measures 600 mm (W) x 1060 mm (D) x 2000 mm (H) externally, providing a standardized 42U vertical mounting space without side panels.
What is the usable vertical rack space of this 42U NETShelter enclosure?
The enclosure offers a full 42U of usable mounting height (approximately 1866 mm) conforming to EIA-310-D standards for equipment installation.
Does the NETShelter SV AR2401 include side panels?
No, this model ships without side panels, allowing for customized cable management or accessory installation based on your data center requirements.
What is the weight capacity of the AR2401 NETShelter SV enclosure?
The NETShelter SV 42U enclosure supports up to 1360 kg (3000 lb) of evenly distributed load when installed on a level surface.
