Transceiver Cables Precision Connectivity

A

Transceiver cables are integrated assemblies combining optical or copper cables with built-in transceiver modules to enable direct high-speed network connections between devices.

A

Transceiver cables convert electrical signals into optical signals (and vice versa) within a single assembly, streamlining data transmission between switches, routers, and servers.

A

Common types include direct attach copper (DAC), active optical cables (AOC), and MPO/MTP breakout assemblies, each tailored for specific data rates and distance requirements.

A

Single-mode cables use a 9 µm core for long-haul links up to 10 km, while multimode cables use 50/62.5 µm cores for shorter runs up to 550 m.

A

Select based on required data rate, distance, connector type (SFP, SFP+, QSFP), and compatibility with your switch or router’s specifications.

A

Reach varies by type: passive DAC up to 7 m, AOC up to 100 m at 10 Gbps, and single-mode optical cables up to 10 km or more.

A

Yes, most SFP, SFP+, and QSFP transceiver cables support hot swapping, enabling replacements without powering down network equipment.

A

Insert the transceiver module into the port until it clicks, then firmly connect the cable to the peer module or device port.

A

Yes, if both comply with MSA standards, but always verify compatibility against your switch vendor’s interoperability list to avoid link issues.

A

Use lint-free wipes with isopropyl alcohol or dedicated fiber optic cleaning tools to remove dust and contaminants without harming the ferrule.

A

Check port LEDs, confirm speed/duplex settings, test with a known-good cable or loopback adapter, and inspect connectors for damage or contamination.

A

Transceiver cables support speeds from 1 Gbps (SFP) up to 400 Gbps (QSFP-DD), depending on form factor and module technology.

A

SFP supports up to 4 Gbps, SFP+ up to 10 Gbps, and QSFP up to 40/100 Gbps, each using distinct form factors and port densities.

A

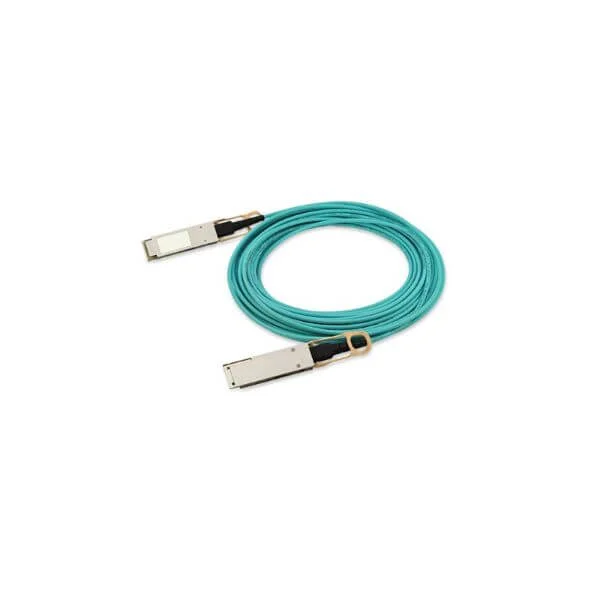

AOCs use fiber with integrated transceivers for longer, lower-power links, while DACs use copper conductors for cost-effective, short-distance connections.

A

High-quality transceiver cables adhere to Multi-Source Agreement (MSA) specifications, ensuring interoperability and consistent performance across vendors.

A

Review your device’s supported module list, confirm MSA compliance, and match form factor, data rate, and wavelength to your equipment’s requirements.

A

Warranties vary by manufacturer but commonly range from one to five years, covering material defects and workmanship under normal operating conditions.
