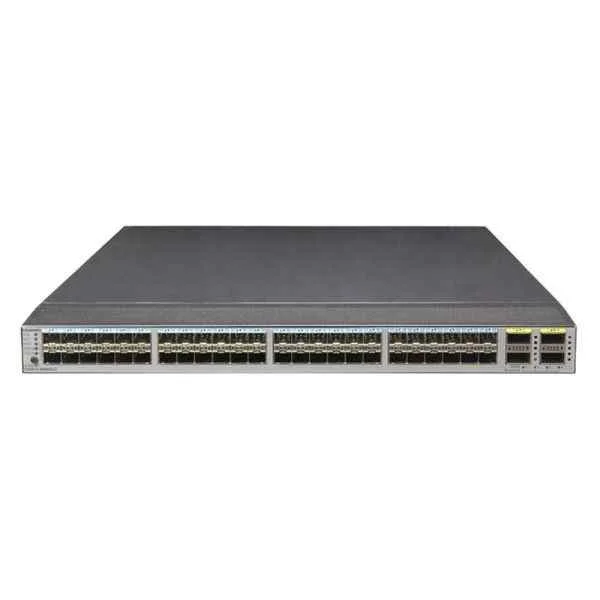

Name: CE6810-48S4Q-LI Switch(2*AC Power Module,2*FAN Box,Port-side Intake)
Brand: Huawei
SKU: CE6810-LI-B-B0A
Price: 8801.34 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What are the key features of the CE6810-LI-B-B0A switch?

Accepted Answer

The CE6810-LI-B-B0A delivers 48 SFP ports, 4 QSFP ports, dual AC power modules, redundant fan modules with port‐side intake, Layer 2 and Layer 3 switching, advanced QoS, and enterprise-grade security features.

Question 2

How many and what types of ports does this switch support?

Accepted Answer

This model provides 48 1 Gbps SFP fiber ports and 4 40 Gbps QSFP ports, supporting a mix of SFP/SFP+ and breakout QSFP optics for flexible uplinks.

Question 3

What is the switching capacity and forwarding performance?

Accepted Answer

It offers a non-blocking switching capacity of up to 576 Gbps and a packet forwarding rate of up to 430 Mpps, ensuring line-rate performance under full load.

Question 4

Does the CE6810-LI-B-B0A support advanced Layer 3 routing?

Accepted Answer

Yes, it supports OSPF, BGP, RIP, VRRP, static routing, and policy-based routing, enabling scalable multi-site and data center deployments.

Question 5

What power supply modules are included?

Accepted Answer

The switch includes two hot-swappable AC power modules (100–240 VAC) that provide redundant power and allow live replacement without downtime.

Question 6

How is the cooling configured and what is the airflow direction?

Accepted Answer

It features two hot-swappable fan boxes with port-side intake and rear exhaust, ensuring efficient front-to-back airflow in rack installations.

Question 7

What is the typical power consumption?

Accepted Answer

Typical power consumption is 130 W under standard load, with a maximum of 210 W when all ports and modules are fully active.

Question 8

Which management interfaces are available?

Accepted Answer

You can manage the switch via console (RJ-45), out-of-band 10/100 Mbps Ethernet port, Web GUI, CLI, SSH, SNMP v2/v3, and RESTful APIs.

Question 9

What high-availability and redundancy features are supported?

Accepted Answer

The CE6810 offers redundant power and fan modules, VRRP, RSTP/MSTP, link aggregation (LACP), and nonstop forwarding for carrier-grade uptime.

Question 10

What environmental conditions does it require?

Accepted Answer

It operates in 0 °C to 45 °C ambient temperatures, 10%–90% non-condensing humidity, up to 5,000 m altitude, and meets ETSI and NEBS thermal guidelines.

Question 11

Is the switch compatible with standard SFP and QSFP optics?

Accepted Answer

Yes, it supports IEEE-compliant 1 G/10 G SFP/SFP+ transceivers and 40 G QSFP-SR/LR modules from major vendors for seamless interoperability.

Question 12

Which IEEE standards and certifications does it support?

Accepted Answer

It complies with IEEE 802.3/802.3u/802.3ab/802.3z/802.3ae, 802.1Q, 802.1p, RoHS, CE, FCC, UL, and EN safety and EMC standards.

Question 13

What security features are built in?

Accepted Answer

It includes 802.1X port-based authentication, DHCP snooping, IP source guard, ACLs, RADIUS/TACACS+ authentication, and CPU protection mechanisms.

Question 14

What is covered under the warranty and support plan?

Accepted Answer

The switch comes with a one-year limited warranty and 24/7 technical support, with optional extensions for hardware replacement and software updates.

Question 15

Can I mount the CE6810-LI-B-B0A in a standard rack?

Accepted Answer

Yes, it is designed for 19-inch racks, occupies 1 RU, and includes rack ears and captive screws for secure installation.

Question 16

What are the physical dimensions and weight?

Accepted Answer

The switch measures 440 mm (W) × 330 mm (D) × 44 mm (H) and weighs approximately 4.5 kg (excluding power and fan modules).

	CE6810-LI-B-B0A	CE6850-EI-B01	CE6850-48S4Q-EI	CE6850U-HI-F-B0B	CE6850U-24S2Q-HI-B
Depth	18 inches	18 inches	12 inches	18 inches	18 inches
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Flash Memory	64 MB	256 MB	256 MB	64 MB	256 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	1.75 inches	1 inches	1.73 inches	1.75 inches	1.75 inches
IOS	IP Services	LAN Base	IP Lite	IP Services	IP Services
Interface Ports	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Layer Supported	Layer 2 / Layer 3	Layer 2	Layer 2 / Layer 3	Layer 2 / Layer 3	Layer 2 / Layer 3
Manageable	Managed	Managed	Managed	Managed	Managed
Manufacturer Part Number	CE6810-LI-B-B0A	CE6850-EI-B01	CE6850-48S4Q-EI	CE6850U-HI-F-B0B	CE6850U-24S2Q-HI-B
Media Type Supported	Twisted Pair / Fiber / Combo	Combo	Combo	Combo	Combo
Memory	256 MB	512 MB	256 MB	256 MB	512 MB
Number of Downlink Ports	24 Ports	24 Ports	48 Ports	48 Ports	2 Ports
Number of Ethernet Ports	24–48 Ports	24–48 Ports	24–48 Ports	24–48 Ports	12–24 Ports
POE Support	Non POE	POE+	Non POE	POE+	Non POE
Port/Expansion Slot Details	N/A	8 fixed ports with 2 expansion slots	48 fixed Ethernet ports, 4 fixed SFP+ uplink ports	48 Gigabit Ethernet ports and 4 SFP+ uplink ports	24 fixed SFP ports, 2 fixed QSFP+ uplink ports
Power Consumption	N/A	150 W	N/A	75W	N/A
Power Source	AC Power Supply	AC Power Supply	AC Power Supply	Redundant Power Supply / AC Power Supply	Redundant Power Supply / AC Power Supply
Product Name	CE6810-LI-B-B0A Ethernet Switch	CE6850 Ethernet Intelligent Switch	Cisco Catalyst 6850 Series CE6850-48S4Q-EI Ethernet Switch	CE6850U-HI-F-B0B Enterprise Rack-Mount Switch	CE6850U-24S2Q-HI-B High-Performance Layer 3 Switch
Product Type	Switch	Switch	Switch	Switch	Switch
Rack Units	1 RU	1 RU	1 RU	1 RU	1 RU
Redundant Power Supply Supported	Yes	Yes	No	Yes	Yes
SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	24 SFP Ports
Switching Capacity	N/A	176 Gbps	176 Gbps	128 Gbps	480 Gbps
Switching Capacity with Stacking	N/A	352 Gbps	352 Gbps	256 Gbps	960 Gbps
Uplink Configuration	10G	10G	10G	10G	40G
Weight	15 lbs	15 lbs	13 lbs	25 lbs	15 lbs
Width	19 inches	17 inches	17.5 inches	17 inches	17.5 inches
