What connector type does the DWDM-XFP10G-1535-04 use?

It features a duplex LC ceramic connector for low insertion loss and high mechanical durability.

What data rate does the DWDM-XFP10G-1535-04 support?

The module supports a line rate of 9.95 Gbps to 10.56 Gbps, fully compliant with 10G Ethernet and SONET/SDH formats.

Is the DWDM-XFP10G-1535-04 hot-swappable?

Yes. It complies with the XFP MSA for hot-swapping without interrupting the host device or network traffic.

Which industry standards and compliance certifications does it meet?

It meets ITU-T G.694.1 for DWDM grid, IEEE 802.3ae 10GBASE-LR, SFF-8472 diagnostics, and ROHS environmental directives.

What is the operating temperature range of the DWDM-XFP10G-1535-04?

The module operates from 0 °C to 70 °C (commercial grade) to ensure stable performance in standard data-center and metro environments.

What is the typical power consumption of the DWDM-XFP10G-1535-04?

It consumes ≤2.5 Watts under full operating conditions, optimizing energy efficiency for dense deployments.

Does the DWDM-XFP10G-1535-04 support digital diagnostics monitoring?

Yes. It supports SFF-8472 digital diagnostics for real-time monitoring of optical power, temperature, voltage, and bias current.

What applications is the DWDM-XFP10G-1535-04 best suited for?

Ideal for metro DWDM rings, long-haul backbone links, data-center interconnects, and high-capacity fiber-optic networks.

How do I install the DWDM-XFP10G-1535-04 in my network device?

Power down the host port, insert the XFP module into the port until it clicks, secure the latch, reconnect the LC fiber, and power up.

How can I troubleshoot a no-link condition with this transceiver?

Verify correct channel and polarity, inspect fiber for bends or dirt, check host port configuration for matching rate, and monitor diagnostic output.

How do I order or replace the DWDM-XFP10G-1535-04?

Contact your authorized distributor with SKU DWDM-XFP10G-1535-04, specify quantity, delivery location, and request lead-time confirmation.

What is the typical lead time for delivery of the DWDM-XFP10G-1535-04?

Lead time normally ranges from 3 to 5 business days, subject to stock availability and shipping destination.

FEATURED DEAL

Name:

DWDM-XFP10G-1535-04

Name: DWDM Optical Transceiver,XFP,10G,Single-mode Module(1535.04nm,80km,LC)
Brand: Huawei
SKU: DWDM-XFP10G-1535-04
Price: 2338.42 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Description:: DWDM Optical Transceiver,XFP,10G,Single-mode Module(1535.04nm,80km,LC)
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Huawei
GTIN:: 6920702795667
Condition:
Warranty:: 3
List Price:: $5,314.60
Price:: $2,338.4256% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

dwdm-xfp10g-1535-04 dwdm optical transceiver,xfp,10g,single-mode module(1535.04nm,80km,lc)

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

DWDM-XFP10G-1535-04

DWDM Optical Transceiver,XFP,10G,Single-mode Module(1535.04n...

$5,314.60 $2,338.4256% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

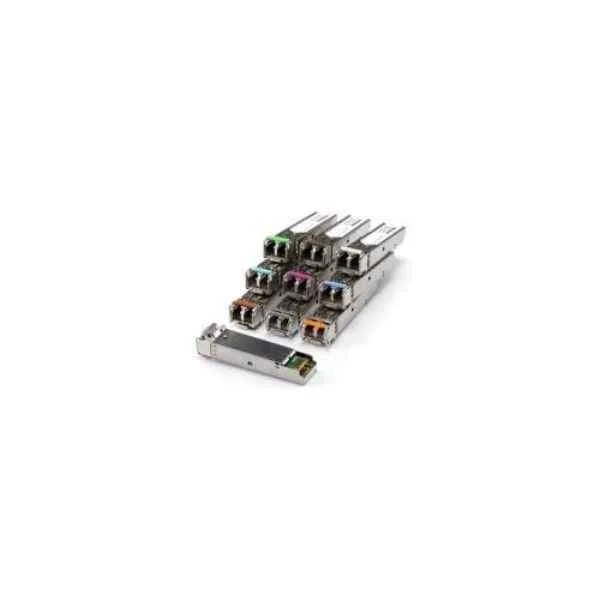

DWDM-XFP10G-1535-04 Overview

DWDM-XFP10G-1535-04 is a high-performance DWDM transceiver that uses the XFP form factor and supports a 10G data rate over single-mode fiber. It features LC connectors designed for long-range transmission with a maximum reach of up to 80 km, making it ideal for Ethernet applications in enterprise networks, data centers, and telecom environments.

This transceiver operates at a center wavelength of 1535 nm and is engineered to integrate seamlessly into DWDM systems. With robust design parameters, including precise physical dimensions and reliable power consumption of 6W, DWDM-XFP10G-1535-04 meets the demands of next-generation network infrastructures while ensuring interoperability with leading network vendors such as Cisco, Juniper, Huawei, and Arista.

DWDM-XFP10G-1535-04 price is $2,338.42, a 56% saving from the Huawei list price of $5,314.60. DWDM-XFP10G-1535-04 is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for DWDM-XFP10G-1535-04 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

DWDM-XFP10G-1535-04 Specifications

Product Type: Transceiver
Form Factor: XFP
Data Rate: 10G
Connector Type: LC
Wavelength: 1535 nm
Transmission Distance: Long-Range
Fiber Type: Single-mode
Max Distance: 80 km
Supported Protocols: Ethernet
Network Interface: Fiber
Power Consumption: 6W
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco / Juniper / Huawei / Arista
Product Name: DWDM-XFP10G-1535-04
Height: 0.33 inches
Width: 2.8 inches
Depth: 0.86 inches
Weight: 0.1 lbs

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	DWDM-XFP10G-1535-04	OSX070001	OSMD10N02	SFP-10G-AOC10M	CWDM-XFP10G-1511
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	XFP	QSFP+	SFP+	SFP	XFP
Data Rate	10G	40G	10G	10G	10G
Connector Type	LC	MPO	LC	LC	LC
Wavelength	1535 nm	1310 nm	850 nm	850nm	1511 nm
Transmission Distance	Long-Range	Short-Range	Short-Range	Short-Range	Long-Range
Fiber Type	Single-mode	Multi-mode	Multi-mode	Multi-mode	Single-mode
Max Distance	80 km	100 meters	300 meters	10m	80 km
Supported Protocols	Ethernet	Ethernet / Fiber Channel	Ethernet	10G Ethernet	Ethernet
Network Interface	Fiber	Ethernet	Ethernet	Ethernet	Fiber
Power Consumption	6W	3.5W	2.5W	N/A	N/A
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei
Product Name	DWDM-XFP10G-1535-04	OSX070001 QSFP+ 40G Transceiver	OSMD10N02 10G SFP+ Transceiver	SFP-10G-AOC10M	CWDM-XFP10G-1511
Height	0.33 inches	0.33 inches	0.55 inches	N/A	0.6 inches
Width	2.8 inches	0.55 inches	0.83 inches	N/A	0.5 inches
Depth	0.86 inches	3.2 inches	1.0 inches	N/A	2.0 inches
Weight	0.1 lbs	0.15 lbs	0.1 lbs	N/A	0.1 lbs

Reviews & Ratings

Anthony Hughes

Stable DWDM XFP optic for 80km links.

Mark Phillips

Reliable wavelength stability.

Jonathan King

Easy installation and operation.

Paul Turner

Consistent performance under load.

Daniel Ross

Good carrier grade optic.

Oliver Grant

Professional XFP DWDM module.

Questions & Answers

What is the DWDM-XFP10G-1535-04 optical transceiver?

The DWDM-XFP10G-1535-04 is a pluggable 10 Gbps XFP module engineered for dense wavelength-division multiplexing (DWDM) over single-mode fiber at 1535.04 nm with an 80 km reach and LC duplex interface.

What maximum transmission distance does the DWDM-XFP10G-1535-04 support?

This module reliably transmits data up to 80 kilometers over standard ITU-G.652 single-mode fiber without signal regeneration.

Which DWDM wavelength does the DWDM-XFP10G-1535-04 operate on?

It operates precisely at 1535.04 nm, corresponding to ITU channel C35, to align with standard DWDM grid spacing.

Is the DWDM-XFP10G-1535-04 compatible with single-mode fiber?

Yes. It’s designed exclusively for ITU-G.652 single-mode fiber, ensuring minimal dispersion and ultra-long-reach transmission.
