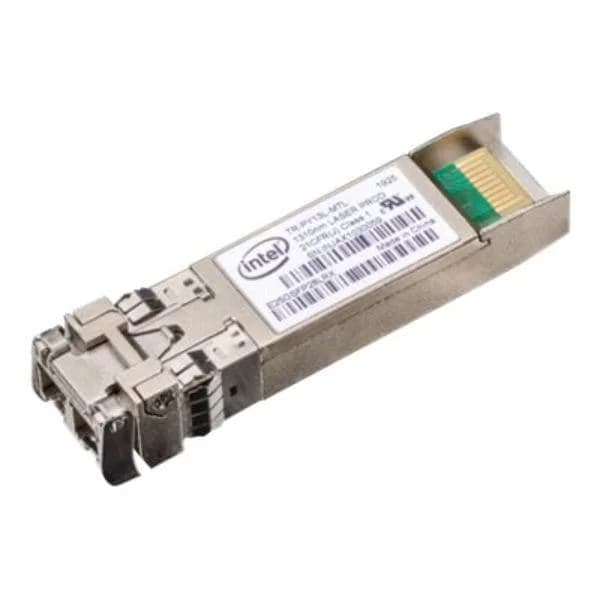

Name: Intel Ethernet SFP+ LR Optics - SFP+ transceiver module - GigE, 10 GigE
Brand: Intel
SKU: E10GSFPLR
Rating: 4.2 (5 reviews)

Question 1

What is the Intel E10GSFPLR SFP+ transceiver module?

Accepted Answer

The Intel E10GSFPLR is a standards-based SFP+ LR optics transceiver that delivers 10 Gigabit Ethernet connectivity over single-mode fiber for data centers and enterprise networks.

Question 2

What network speeds does the E10GSFPLR support?

Accepted Answer

This module supports 10 Gbps Ethernet links and is backward-capable of 1 Gbps operation when connected to a compatible SFP port.

Question 3

Which fiber type is required for the E10GSFPLR?

Accepted Answer

The E10GSFPLR is designed for single-mode fiber (SMF) and is not compatible with multi-mode fiber (MMF) without mode-conditioning patch cords.

Question 4

What is the maximum link distance of the Intel E10GSFPLR?

Accepted Answer

When used with ITU-standard G.652 single-mode fiber, the E10GSFPLR supports link spans up to 10 km at 10 Gbps.

Question 5

At what wavelength does this transceiver operate?

Accepted Answer

The module operates at a nominal wavelength of 1310 nm, optimized for long-reach single-mode fiber links.

Question 6

Is the E10GSFPLR hot-swappable?

Accepted Answer

Yes, the Intel E10GSFPLR is fully hot-swappable, allowing insertion or removal without powering down the host system.

Question 7

Does the E10GSFPLR support Digital Diagnostic Monitoring (DDM)?

Accepted Answer

Yes, the module implements DDM (SFF-8472) to report real-time metrics such as optical power, temperature, and supply voltage.

Question 8

Which vendors and devices are compatible with this SFP+ transceiver?

Accepted Answer

The E10GSFPLR is interoperable with all SFP+-compliant ports from leading switch and server vendors including Cisco, Juniper, HPE, Dell and Arista.

Question 9

What is the operating temperature range for the E10GSFPLR?

Accepted Answer

This transceiver is rated for an operating temperature range of 0 °C to 70 °C (commercial temperature class).

Question 10

What is the typical power consumption of the Intel E10GSFPLR?

Accepted Answer

The module consumes less than 1 W in normal operation, making it energy-efficient for high-density installations.

Question 11

Is the E10GSFPLR RoHS compliant?

Accepted Answer

Yes, the Intel E10GSFPLR meets RoHS Directive 2011/65/EU requirements for lead-free and halogen-free components.

Question 12

How do I install the E10GSFPLR transceiver?

Accepted Answer

Align the module with the SFP+ port, gently insert until the latch clicks, and then connect your single-mode fiber cables to the LC duplex connector.

Question 13

How can I verify that the link is active?

Accepted Answer

Check that the link LED on your switch or server remains steadily green; you can also query DDM registers via the host interface.

Question 14

Can I use the Intel E10GSFPLR with multi-mode fiber?

Accepted Answer

No, this LR optics module is optimized for single-mode fiber and will not achieve specified distances on multi-mode installations.

Question 15

Is the E10GSFPLR interoperable with third-party SFP+ ports?

Accepted Answer

Yes, the module adheres to SFF-8431 and IEEE 802.3ae standards for guaranteed interoperability with third-party SFP+ ports.

Question 16

What warranty does Intel offer for the E10GSFPLR?

Accepted Answer

Intel provides a five-year limited warranty on the E10GSFPLR, covering manufacturing defects and performance compliance.

Question 17

Where can I purchase the Intel E10GSFPLR transceiver?

Accepted Answer

You can buy the Intel E10GSFPLR from authorized Intel distributors, major IT resellers, or online marketplaces with Intel channel partner certification.

	E10GSFPLR	E100GQSFP28SRX	E25GSFP28SRX	E40GQSFPLR	S26361-F4055-L701
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	SFP+	QSFP28	SFP28	QSFP	SFP+
Data Rate	10G	100G	25G	40G	10G
Connector Type	LC	MPO	LC	LC	LC
Wavelength	1310 nm	850nm	850 nm	1310 nm	1310 nm
Transmission Distance	Long-Range	Short-Range	Short-Range	Long-Range	Long-Range
Fiber Type	Single-mode	Multi-mode	Multi-mode	Single-mode	Single-mode
Max Distance	10 km	100m	100 meters	10 km	10 km
Supported Protocols	Ethernet	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet
Network Interface	Fiber	Fiber	Fiber	Fiber	Fiber
Power Consumption	3.6 W	8W	3.5W	5 W	N/A
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista
Product Name	E10GSFPLR	E100GQSFP28SRX	E25GSFP28SRX	E40GQSFPLR 40G QSFP Long Range Transceiver	S26361-F4055-L701
Height	0.33 inches	0.85 inches	0.28 inches	0.5 inches	N/A
Width	0.53 inches	0.62 inches	0.78 inches	1.5 inches	N/A
Depth	2.20 inches	0.70 inches	1.1 inches	1.0 inches	N/A
Weight	0.06 lbs	0.08 lbs	0.1 lbs	0.2 lbs	N/A

	E10GSFPLR	E100GQSFP28SRX	E25GSFP28SRX	E40GQSFPLR	S26361-F4055-L701
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	SFP+	QSFP28	SFP28	QSFP	SFP+
Data Rate	10G	100G	25G	40G	10G
Connector Type	LC	MPO	LC	LC	LC
Wavelength	1310 nm	850nm	850 nm	1310 nm	1310 nm
Transmission Distance	Long-Range	Short-Range	Short-Range	Long-Range	Long-Range
Fiber Type	Single-mode	Multi-mode	Multi-mode	Single-mode	Single-mode
Max Distance	10 km	100m	100 meters	10 km	10 km
Supported Protocols	Ethernet	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet
Network Interface	Fiber	Fiber	Fiber	Fiber	Fiber
Power Consumption	3.6 W	8W	3.5W	5 W	N/A
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista
Product Name	E10GSFPLR	E100GQSFP28SRX	E25GSFP28SRX	E40GQSFPLR 40G QSFP Long Range Transceiver	S26361-F4055-L701
Height	0.33 inches	0.85 inches	0.28 inches	0.5 inches	N/A
Width	0.53 inches	0.62 inches	0.78 inches	1.5 inches	N/A
Depth	2.20 inches	0.70 inches	1.1 inches	1.0 inches	N/A
Weight	0.06 lbs	0.08 lbs	0.1 lbs	0.2 lbs	N/A
