HWIC-1ADSL-M
1-port ADSL HWIC w/Annex M Cisco Router High-Speed WAN Inter...
TRUSTED, TRIED, PROVEN
Inventory Delivered By
& Verified By
Solutions Powered By

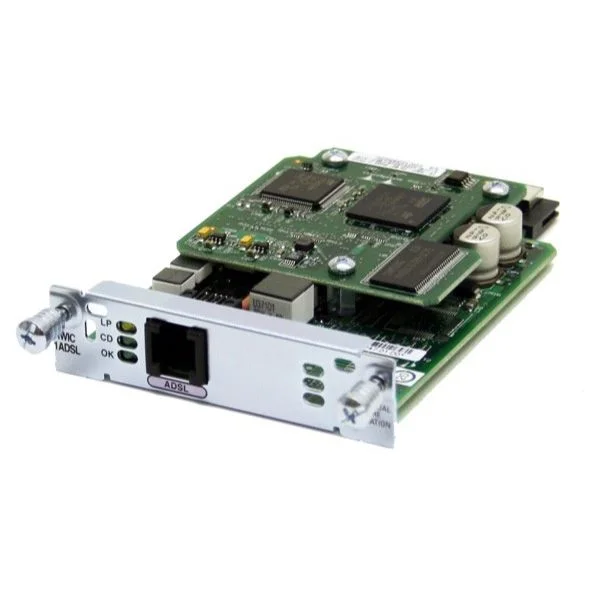

HWIC-1ADSL-M is a WAN module designed for installation in Cisco routers via the Enhanced High-Speed WAN Interface Card (EHWIC) slot, delivering ADSL connectivity directly from traditional copper telephone lines. This module supports ADSL/ADSL2+ data rates and provides a dedicated RJ-11 port for connecting to DSL circuits, while working seamlessly with core TCP/IP and PPP protocols to ensure reliable communication over WAN links.
The HWIC-1ADSL-M module features a modular design that simplifies installation and expansion in branch office and remote site environments. With industry-standard compatibility with Cisco networking equipment, it is engineered to supply up to 8Mbps downstream and 1Mbps upstream performance, making it an ideal solution for legacy DSL deployments that require dependable and efficient WAN connectivity.
HWIC-1ADSL-M price is $361.00, a 51.9% saving from the Cisco list price of $750.00. HWIC-1ADSL-M is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for HWIC-1ADSL-M for additional pricing. Browse the full Router Ehwic Wan Cards series or explore all Cisco products.
A regional retail chain deploys the HWIC-1ADSL-M-1-port ADSL HWIC w/Annex M on its ISR4000 series routers to connect a rural branch lacking fiber or cable. Leveraging Annex M’s higher upstream (up to 3.3 Mbps), the store maintains secure IPsec VPN tunnels to headquarters for real-time POS data synchronization, inventory management and cloud-based reporting. Outcome: reliable high-speed WAN at a fraction of leased-line cost, enabling centralized operations, faster order fulfillment and 99.9% uptime compliance.
A professional services firm integrates the HWIC-1ADSL-M-1-port ADSL HWIC with Annex M into its ISR3000 router to serve as primary Internet access for VoIP phones and HD video conferencing. By taking advantage of Annex M’s asymmetric uplink boost, the company ensures consistent upstream bandwidth for SIP call signaling, QoS-prioritized voice packets and multi-party video streams. Outcome: crystal-clear voice/video quality, reduced jitter/latency and a 30% improvement in remote collaboration productivity without upgrading to pricier business fiber.
An enterprise IT team configures the HWIC-1ADSL-M-1-port ADSL card as a secondary WAN interface on a Cisco ISR2900 router. In the event of primary MPLS or cable Internet failure, Embedded Event Manager scripts trigger automatic route failover to the Annex M ADSL link. This seamless switch preserves critical services—ERP access, VoIP trunking and cloud backup—while alerting network operators via SNMP traps. Outcome: near-zero downtime, improved SLA adherence and simplified disaster-recovery orchestration with existing copper infrastructure.
To get the detailed certification, please go to the Compliance Center.
| HWIC-1ADSL-M |  HWIC-8A/S-232 |  EHWIC-4G-LTE-JP |  HWIC-8A |  HWIC-2T | |
|---|---|---|---|---|---|
| Product Type | Network Module | Network Module / Network Card | Network Module / Network Card | Network Module / Network Card | WAN Module |
| Module Type | WAN | HWIC | 4G LTE | WAN Module | 2-Port T1/E1 WAN Module |
| Data Rate | ADSL/ADSL2+ | 115.2 kbps | N/A | 1Gbps | 1.544 Mbps / 2.048 Mbps |
| Connector Type | RJ-11 | DB9 RS-232 | N/A | RJ-45 | N/A |
| Supported Protocols | TCP/IP, PPP | PPP / HDLC | LTE, TCP/IP | TCP/IP | TCP/IP, Frame Relay |
| Form Factor | Modular | Modular | EHWIC | Modular | HWIC |
| Operating Temperature | 0 to 55°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
| Storage Temperature | -40 to 85°C | -40 to 85°C | N/A | -40 to 85°C | -40 to 85°C |
| Input Voltage | 3.3V | 5V | N/A | 3.3V | 3.3V |
| Compatibility | Cisco | Cisco Routers | Cisco | Cisco | Cisco Routers |
| Max Speed | Up to 8Mbps downstream / 1Mbps upstream | 115.2 kbps | N/A | 1Gbps | N/A |
| Supported Features | N/A | Auto-flow control, Error Detection | Auto-negotiation, LTE Network Selection | Auto-negotiation, Wake-on-LAN, Jumbo Frames, QoS | N/A |
| Power Consumption | N/A | N/A | N/A | 5W | N/A |
| Interface Ports | N/A | RS-232 | LTE | Ethernet | 2 x T1/E1 |
| Expansion Slots | EHWIC | HWIC slot | EHWIC | EHWIC | EHWIC |
| Product Name | HWIC-1ADSL-M | HWIC-8A/S-232 | EHWIC-4G-LTE-JP | Cisco HWIC-8A High-speed WAN Interface Card | HWIC-2T |
| Height | N/A | N/A | N/A | N/A | N/A |
| Width | N/A | N/A | N/A | N/A | N/A |
| Depth | N/A | N/A | N/A | N/A | N/A |
| Weight | N/A | N/A | N/A | N/A | N/A |
The HWIC-1ADSL-M card is a solid solution for ADSL connectivity. It provides consistent and reliable performance for our networking needs.
The HWIC-1ADSL-M integrates smoothly with our Cisco routers and provides stable ADSL connectivity. A great value for business use.
Reliable ADSL connection with the HWIC-1ADSL-M. It's perfect for low-cost, high-performance internet connections in small office setups.
The HWIC-1ADSL-M card is easy to install and delivers excellent performance. It's ideal for our smaller office with ADSL connectivity.
We rely on the HWIC-1ADSL-M for stable ADSL connectivity. It's a solid, dependable option for small business networking.
The Cisco HWIC-1ADSL-M is a High-Speed WAN Interface Card (HWIC) that provides a single-port ADSL connection with Annex M support for Cisco ISR routers, enabling enhanced upstream bandwidth for small-to-medium business deployments.
Key features include Annex M support for up to 3.3 Mbps upstream, ATM-based ADSL connectivity up to 24 Mbps downstream, support for multiple PVCs, TR-070 provisioning, and seamless integration with Cisco IOS.
Annex M reallocates upstream/downstream tones to boost upstream bandwidth up to 3.3 Mbps (compared to 1 Mbps on Annex A), ideal for applications requiring higher upload speeds like VoIP and cloud backups.
The HWIC-1ADSL-M is compatible with Cisco 1841, 2801, 2811, 2821, 2851, 2911, 2921, 2951, 3925, 3945, 4321, 4331, 4351, 4431, and 4451 ISR routers running Cisco IOS 15.x or later.
It supports downstream ADSL rates up to 24 Mbps and upstream rates up to 3.3 Mbps under Annex M, with automatic rate adaptation based on line conditions.
Power off your ISR router, remove the protective slot cover, insert the HWIC-1ADSL-M into an available HWIC slot, secure it with the retention screw, and power on the router.
Use Cisco IOS commands in global configuration mode: specify the ATM PVC (e.g., 'encapsulation aal5snap'), set VPI/VCI values, select Annex M if required, and apply dialer or static IP configuration.
Yes. The HWIC-1ADSL-M supports up to eight permanent virtual circuits (PVCs) for segregated traffic streams and Quality of Service management.
Yes. By leveraging Annex M’s higher upstream bandwidth and ATM QoS features, the HWIC-1ADSL-M can support VoIP traffic with low latency and prioritized queuing.
Annex M reallocates frequency bands to increase upstream capacity (up to 3.3 Mbps) at the expense of a slight downstream reduction, while Annex A balances up to 1 Mbps upstream and 8–24 Mbps downstream.
Yes. It supports ATM QoS classes CBR, UBR, VBR-rt, and VBR-nrt, enabling traffic prioritization for mission-critical applications over ADSL.
The HWIC-1ADSL-M draws up to 2.5 W from the host router’s slot; ensure the router power budget and environmental specifications match Cisco’s hardware installation guidelines.
Security is enforced via built-in IOS features: IPsec VPN encryption, access control lists (ACLs), and dynamic ARP inspection, ensuring data confidentiality and integrity over the ADSL link.
You can buy the HWIC-1ADSL-M through Cisco-authorized resellers, distributors, or the Cisco online store. Check Cisco’s website for local partners and pricing.
The HWIC-1ADSL-M comes with Cisco’s 90-day limited hardware warranty, which can be extended with Cisco SMARTnet service for enhanced support and replacement options.
Verify physical DSL line connectivity, confirm correct VPI/VCI settings, review 'show controllers atm 0/0' for line status, and check for excessive attenuation or noise margin with 'show dsl status'.
