J9778A

Specification Of J9778A

Specification

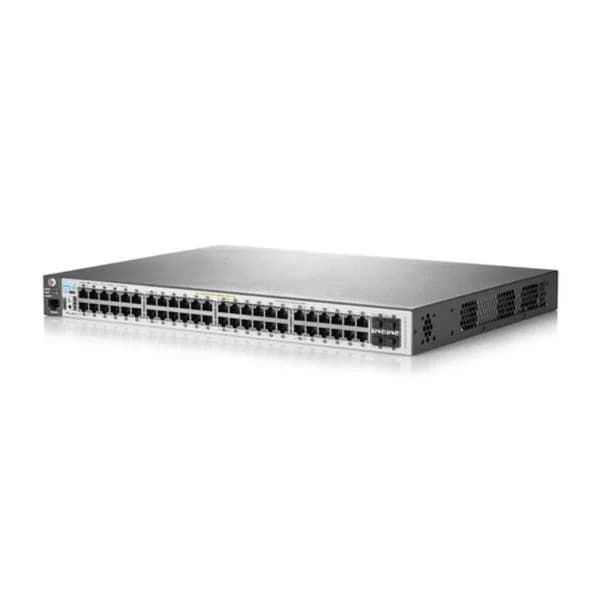

Type	Aruba 2530-48-PoE+ Switch
System specifications
Ports	48 RJ-45 autosensing 10/100 POE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at POE+); Media Type: Auto-MDIX; Duplex: half or full· 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only· 2 fixed Gigabit Ethernet SFP ports· 1 dual-personality (RJ-45 or USB micro-B) serial console port
Memory and processor	Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated.
Management	IMC - Intelligent Management Center; Command-Line Interface (CLI); Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB);IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB.
Mounting	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting.
Performance specifications
1000 Mb Latency	< 2.2 µs (FIFO 64-byte packets)
100 Mb Latency	< 6.6 μs (64-byte packets)
Throughput	up to 13 million pps (64-byte packets)
Routing/Switching capacity	17.6 Gb/s
MAC address table size	16000 entries
Physical specifications
Dimensions	44.2 x 32.26 x 4.45 cm (17.4 x 12.7 x 1.75 in) (1U height)
Weight	4.58 kg (10.1 lb)
Electrical specifications
Maximum heat dissipation	135 BTU/hr (142.42 kJ/hr), (switch only: 135 BTU/hr; combined switch + max. PoE devices: 843 BTU/hr)
Voltage	100 - 127 / 200 - 240 V ac, rated
Current	3.2/1.6 A
Maximum power rating	247 W
Idle power	25.2 W
Frequency	50/60 Hz
PoE power	195 W
Environmental specifications
Operating Temperature	0°C to 55°C (32°F to 131°F); 40°C (32°F to 104°F) when used with any SFP+ 10-GbE
Operating relative humidity	40°C (15% to 95% @ 104°F) noncondensing
Nonoperating/Storage temperature	-40°C to 70°C (-40°F to 158°F)
Nonoperating/Storage relative humidity	65°C (15% to 90% @ 149°F) noncondensing
Acoustic	Power: 39.6 dB, Pressure: 43.9 dB
Altitude	Up to 3 km (10,000 ft)
Safety certifications
Safety	CE Labeled EN 60825-1 Safety of Laser Products-Part 1 FCC Part 15, Subpart B GOST EU RoHS Compliant; EN 55022 Class A EN 55024: 1998 C-Tick; ICES-003, Class A VCCI Class A IEC 60825-1 IEC 60950-1, Second Edition EN62479:2010 CSA C22.2 No. 60950-1-07 2nd Edition EN 60950-1:2006+A11:2009+A1:2010+A12:2011 IEC 60950-1 (ed.2): am1
Emissions	EN 55022:2010/CISPR 22 Class A FCC CFR 47 Part 15 Class A VCCI Class A; ICES-003 Class A CNS 13438
Immunity	Generic:EN 55024:2010/CISPR 24 ESDIEC 61000-4-2 RadiatedIEC 61000-4-3 EFT/BurstIEC 61000-4-4 SurgeIEC 61000-4-5 ConductedIEC 61000-4-6 Power frequency magnetic fieldIEC 61000-4-8 Voltage dips and interruptionsIEC 61000-4-11 HarmonicsIEC/EN 61000-3-2 FlickerIEC/EN 61000-3-3
