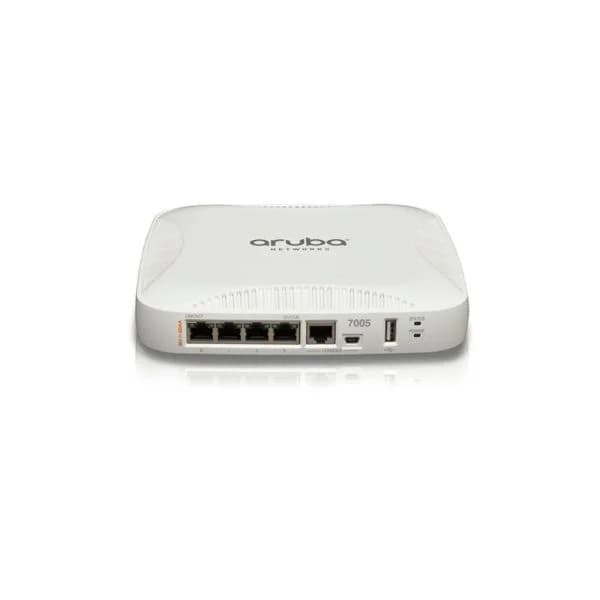

JW633A

Specification Of JW633A

Specifications
Product Model	Aruba 7005 (US) 4-port 10/100/1000BASE-T 16 AP and 1K Client Controller
Maximum campus AP licenses	16
Maximum remote AP licenses	16
Maximum concurrent users/devices	1,024
Maximum VLANs	4,094
Active firewall sessions	16,384
Concurrent GRE tunnels	256
Concurrent IPsec sessions	512
Mobility Access Switch tunneled-node ports	512
Firewall throughput	2 Gbps
Encrypted throughput (3DES, AES-CBC)	1.2 Gbps
Encrypted throughput (AES-CCM)	1.6 Gbps
Form factor/footprint	Compact
Auto-negotiating 10/100/1000BASE-T	4
Gigabit Ethernet ports (GBIC or SFP)	N/A
USB 2.0	Yes
Management/status LEDs	Yes (1)
LINK/ACT and status LEDs	No
LCD panel and navigation buttons	No
Console port	Yes (micro USB/RJ-45)
Out-of-band management port	No
PoE Role/Mode	Power Device (PD)
PoE In or Out	In (Port 0)
Number of PoE+ capable Ports	N/A
Max concurrent of PoE Ports	N/A
Max concurrent PoE+ Ports	N/A
PoE Power Budget	N/A
Dimension (H × W × D)	4.1 cm x 20 cm x 20 cm (1.6” x 7.9” x 7.9”)
Weight	0.92 kg (2.03 lbs)
MTBF (hours, @ 25C)	323,896
Operating temperature	0° C to 40° C
Storage temperature	-40° C to 70° C
Humidity/storage humidity	10% to 95%
NC Operating altitude	10,000 feet
Acoustic noise	0 dBA (fanless)
Maximum power consumption	16.6W with USB
Safety certifications	UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition EN 60950:2005 IEC 60950-1 Second Edition NOM (obtained by partners and distributors)
Electromagnetic emissions certifications	FCC Part 15 Class B CE AS/NZS CISPR22 Class B CISPR22 Class A (7010, 7024, 7030), Class B (7005) EN55022 Class A (7010, 7024, 7030), Class B (7005) ICES-003 Class A (7010, 7024, 7030), Class B (7005) VCCI Class A (7010, 7024, 7030), Class B (7005) EN61000-3-2 EN61000-3-3 EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4- 6, EN 61000-4-8, EN 61000-4-11, AS/NZS 3548 KN22 Class B KCC CNS13438 Class B EN55024/CISPR24 KN24 Industry Canada Class B CE mark, cTUVus, CB, C-tick, Anatel, NOM, MIC
Telco	Common Language Equipment Identifier (CLEI) Code
Regulatory SKU information	ARCN01014(7005), ARCN0103(7010), ARCN7024(7024), ARCN7030(7030)
Minimum ArubaOS Release	7005, AOS 6.4.1.0; 7008, AOS 6.5.0.0; 7010, AOS 6.4.1.0; 7024, AOS 6.4.3.0; 7030, AOS 6.4.1.0
