Question 1

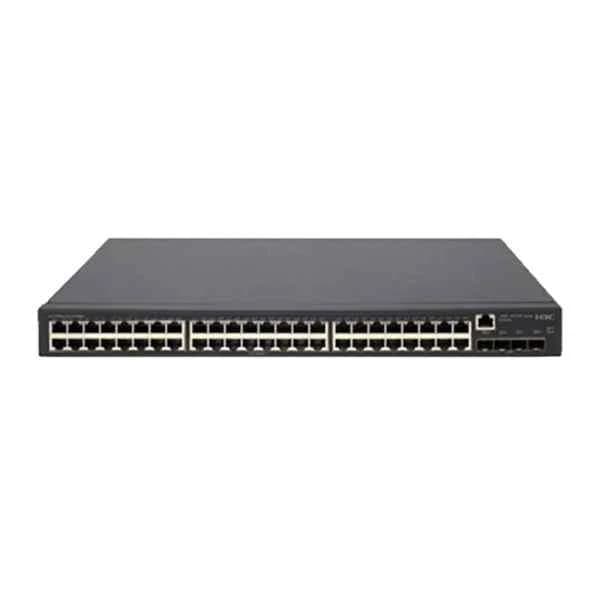

What is the total PoE+ power budget of the H3C S5130S-52S-PWR-EI switch?

Accepted Answer

The H3C S5130S-52S-PWR-EI delivers up to 370 W of PoE+ power over AC input or up to 740 W when powered by DC, supporting high-power devices like IP cameras and wireless APs.

Question 2

How many Ethernet and SFP+ ports does this switch have?

Accepted Answer

This L2 switch features 48×10/100/1000 Mbps PoE+ RJ45 ports and 4×1 Gb/10 Gb BASE-X SFP+ uplink ports for flexible connectivity.

Question 3

What is the switching capacity and throughput of the S5130S-52S-PWR-EI?

Accepted Answer

It provides a switching capacity of 176 Gbps and a maximum forwarding rate of 131 Mpps, ensuring smooth data flow for demanding network environments.

Question 4

Which management interfaces and protocols are supported?

Accepted Answer

You can manage the switch via Web GUI, CLI (SSH/Telnet), SNMPv1/2/3, RMON, and Telnet, enabling centralized monitoring and configuration.

Question 5

Does the S5130S-52S-PWR-EI support VLAN and advanced Layer 2 features?

Accepted Answer

Yes, it supports 4K VLANs, 802.1Q tagging, QinQ, GVRP, IGMP snooping, static routing, and link aggregation (LACP) for network segmentation and redundancy.

Question 6

What security features are built into this switch?

Accepted Answer

It provides port security, MAC address filtering, 802.1X authentication, DHCP snooping, ARP inspection, IP source guard, and ACLs to protect against unauthorized access and attacks.

Question 7

Can I deploy this switch in a rack-mount environment?

Accepted Answer

Yes, the S5130S-52S-PWR-EI is a 1U rack-mountable unit with included mounting brackets and occupies only 43 mm of rack height.

Question 8

What power supply options are available?

Accepted Answer

This model includes an internal AC power supply delivering 370 W PoE+ power and supports an optional DC input module to achieve up to 740 W PoE+ budget.

Question 9

Is the H3C S5130S-52S-PWR-EI suitable for IP telephony and wireless deployments?

Accepted Answer

Absolutely—its full PoE+ support, QoS, and priority queuing ensure reliable power and bandwidth for IP phones, wireless access points, and video endpoints.

Question 10

What redundancy features does this switch offer?

Accepted Answer

The device supports dual power inputs (AC and optional DC), load sharing, and fast failover, ensuring uninterrupted operation in the event of a power module failure.

Question 11

What quality of service (QoS) capabilities are included?

Accepted Answer

It offers Class of Service (CoS), 8 hardware queues per port, ACL-based traffic classification, and rate limiting to optimize voice, video, and data traffic.

Question 12

What are the dimensions and weight of the switch?

Accepted Answer

The switch measures 440 × 285 × 43 mm (W×D×H) and weighs approximately 4.2 kg, making it easy to install and integrate into standard racks.

Question 13

What operating environment does the S5130S-52S-PWR-EI require?

Accepted Answer

It runs reliably in temperatures from 0 °C to 45 °C, humidity of 10%–90% non-condensing, making it suitable for typical data-center or office environments.

Question 14

How many MAC addresses and routes can it handle?

Accepted Answer

The switch supports up to 32 K MAC address entries and 4 K static routes, accommodating large network topologies and extensive device connectivity.

Question 15

Does the switch support link aggregation?

Accepted Answer

Yes, it supports 802.3ad link aggregation with up to 64 static or LACP groups, each with up to 8 member ports for increased bandwidth and redundancy.

Question 16

What warranty and support options are included?

Accepted Answer

This model comes with a 3-year H3C warranty including hardware replacement and technical support, ensuring your network stays up and running.

	LS-5130-52S-PWR-EI	LS-5130S-28P-EI	S3100V3-28TP-EI	S5024PV3-EI-PWR	S5130S-52P-EI
Depth	17 inches	11 inches	9.8 inches	N/A	11 inches
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Flash Memory	64 MB	256 MB	64 MB	64 MB	32 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	1.75 inches	1.75 inches	1.73 inches	N/A	1.75 inches
IOS	IP Services	IP Services	IP Lite	LAN Base	IP Lite
Interface Ports	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Layer Supported	Layer 2 / Layer 3	Layer 2 / Layer 3	Layer 2	Layer 2	Layer 2
Manageable	Managed	Managed	Managed	Managed	Managed
Manufacturer Part Number	LS-5130-52S-PWR-EI	LS-5130S-28P-EI	S3100V3-28TP-EI	S5024PV3-EI-PWR	S5130S-52P-EI
Media Type Supported	Combo	Combo	Combo	Combo	Twisted Pair
Memory	256 MB	512 MB	256 MB	256 MB	256 MB
Number of Downlink Ports	48 Ports	24 Ports	N/A	8 Ports	48 Ports
Number of Ethernet Ports	Over 48 Ports	24–48 Ports	24–48 Ports	12–24 Ports	Over 48 Ports
POE Support	POE+	POE+	POE	POE+	POE+
Port/Expansion Slot Details	Fixed configuration	24 PoE+ ports and 4 SFP uplink ports	24 PoE ports and 4 SFP uplink ports	24 x 10/100/1000 PoE ports, 4 x SFP uplink ports	N/A
Power Consumption	N/A	N/A	N/A	N/A	N/A
Power Source	AC Power Supply	AC Power Supply	AC Power Supply	Redundant Power Supply	Redundant Power Supply / AC Power Supply
Product Name	LS-5130-52S-PWR-EI Ethernet Switch	LS Series 5130S 28-Port PoE+ Switch	S3100V3-28TP-EI Gigabit PoE Switch	S5024PV3-EI-PWR PoE Managed Switch	S5130S-52P-EI Gigabit PoE Rack Switch
Product Type	Switch	Switch	Switch	Switch	Switch
Rack Units	1 RU	1 RU	1 RU	1 RU	1 RU
Redundant Power Supply Supported	Yes	No	No	Yes	Yes
SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports
Switching Capacity	104 Gbps	128 Gbps	56 Gbps	128 Gbps	104 Gbps
Switching Capacity with Stacking	208 Gbps	256 Gbps	112 Gbps	256 Gbps	208 Gbps
Uplink Configuration	1G	1G	1G	1G	1G
Weight	18 lbs	15 lbs	15 lbs	N/A	15 lbs
Width	17.5 inches	17.5 inches	17.3 inches	N/A	17.5 inches
