NDE-8504-R

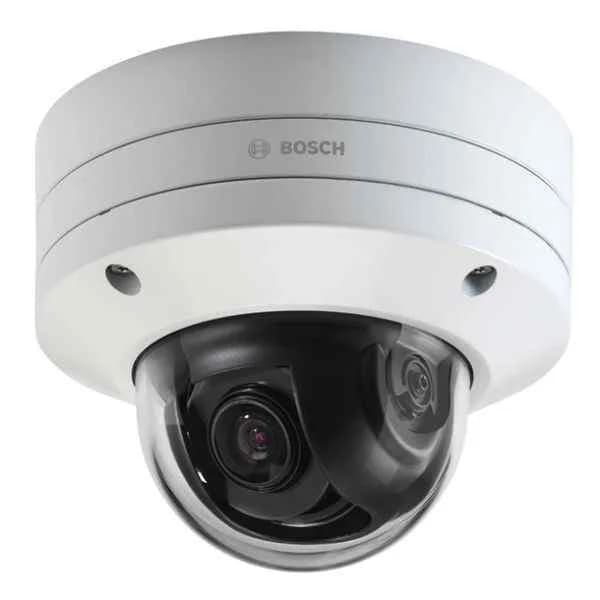

Bosch NDE-8504-R 8.3MP H.265 Outdoor PTRZ Dome IP Security C...
TRUSTED, TRIED, PROVEN
Inventory Delivered By
& Verified By
Solutions Powered By
NDE-8504-R is an IP bullet camera offering 4K resolution, a varifocal lens, and an IR night vision range of 30m. It is equipped with a high-quality 1/2.8" CMOS sensor, utilizes advanced H.265+ video compression, supports 2-Way Audio, and connects via PoE while maintaining full ONVIF compliance and multiple storage options (SD card, NVR, cloud).
NDE-8504-R is engineered for demanding environments with an IP67 weather rating and IK10 vandal resistance. It is purpose-built for use cases including indoor retail, perimeter defense, license plate recognition, and warehouse surveillance, with a design that supports fixed mounting on walls or poles for straightforward, real-time monitoring.
NDE-8504-R price is is available on request. Get immediate quote.
Request bulk order quote for NDE-8504-R for additional pricing. Browse the full Flexidome Series series or explore all Bosch products.
To get the detailed certification, please go to the Compliance Center.
 NDE-8504-R |  NDE-3502-F02 |  NDE-3512-AL |  NDI-5502-AL |  NDM-7703-A | |
|---|---|---|---|---|---|
| Product Type | Security Camera | Security Camera | Security Camera | Security Camera | Security Camera |
| Camera Type | Bullet | Bullet | Bullet | Bullet | Bullet |
| Technology | IP Camera | IP Camera | IP Camera | IP Camera | IP Camera |
| Resolution | 4K | 4K | 4MP | 4K | 4K |
| Lens Type | Varifocal | Motorized | Fixed | Varifocal | Varifocal |
| Smart Features | Motion Detection / Face Detection | Motion Detection / ANPR | Motion Detection | Motion Detection | Motion Detection / Intrusion Detection / ANPR |
| Mounting Type | Wall | Wall | Wall | Wall | Wall |
| Color | Black | Black | Black | Black | Black |
| Use Case | Indoor / Retail / Perimeter Protection / Warehouse | Indoor / Retail / Perimeter Protection / Warehouse | Retail | Indoor / Retail / Perimeter Protection / Warehouse | Indoor / Retail / Office Security / Perimeter Protection / Warehouse |
| Focal Length | 2.7–13.5mm | 4.7–94mm | 4mm | 2.7–13.5mm | 2.7–13.5mm |
| Image Sensor | 1/2.8 CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/3" CMOS |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Night Vision | 30m | 50m | 50m | 50m | 50m |
| Low Light Technology | Starlight | Starlight | EXIR | Starlight | Starlight |
| Day/Night Mode | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.265+ | H.265+ | H.265 | H.265 | H.265 |
| Audio Support | 2-Way Audio | 2-Way Audio | Built-in Mic | 2-Way Audio | 2-Way Audio |
| Storage Option | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot |
| Max Storage Capacity | 128 GB | 128 GB | 128 GB | 128 GB | 128 GB |
| Power Type | PoE | PoE | PoE | PoE | PoE |
| Weather Rating | IP67 | IP67 | IP66 | IP67 | IP67 |
| Vandal Resistance | IK10 | IK10 | IK08 | IK10 | IK10 |
| ONVIF Compliant | Yes | Yes | Yes | Yes | Yes |
| Product Name | NDE-8504-R Weatherproof IP Bullet Camera | NDE-3502-F02 | NDE-3512-AL | NDI-5502-AL Security Camera | NDM-7703-A |
| Height | 5 inches | 4 inches | 3 inches | 4.0 inches | 2.0 inches |
| Width | 3.5 inches | 3 inches | 5 inches | 6.0 inches | 3.0 inches |
| Depth | 3.5 inches | 3 inches | 4 inches | 3.5 inches | 1.5 inches |
| Weight | 1.2 lbs | 1.5 lbs | 1.5 lbs | 1.2 lbs | 1.2 lbs |
Exceptional 8.3MP resolution. This outdoor dome provides the highest level of detail with the convenience of PTRZ remote setup.
Stunning 4K+ visuals. The H.265 efficiency is great and the PTRZ remote adjustments are a life-saver on high mounts.
Top-of-the-line performance. The 8.3MP sensor is incredibly sharp, and the motorized lens is fast and accurate.
Reliable and robust. This camera provides forensic-level detail for our most critical outdoor areas. PTRZ is perfect.
The best outdoor dome we've used. High resolution, remote positioning, and solid build quality make it worth every penny.
The Bosch NDE-8504-R delivers 8.3 megapixel resolution for highly detailed 4K UHD video, ensuring crystal-clear surveillance footage.
Yes, the NDE-8504-R supports H.265 compression to reduce bandwidth and storage usage while maintaining superior image quality.
The NDE-8504-R offers 360° continuous pan, ±90° tilt, and a 4.3x motorized optical zoom range for flexible, remote-controlled coverage.
Yes, it features an IP66 and IK10 rating, providing dust, water, and vandal resistance for reliable outdoor performance.
