Which connector interface does the OSX040N03 use?

The transceiver uses a duplex LC connector interface for easy deployment.

What is the transmitter output power range of the OSX040N03?

It provides a transmitter output power range from –7.3 dBm to –1 dBm.

What is the receiver sensitivity of the OSX040N03?

The receiver sensitivity is rated at –11.1 dBm for reliable signal detection.

Is the OSX040N03 hot-pluggable?

Yes, the OSX040N03 is hot-pluggable, enabling seamless insertion and removal.

Which industry standards does the OSX040N03 comply with?

It complies with IEEE 802.3ae, SFF-8431, and SFF-8472 specifications.

Does the OSX040N03 support digital diagnostics monitoring (DDM)?

Yes, it supports Digital Diagnostics Monitoring (DDM) for real-time parameter monitoring.

What is the optical budget of the OSX040N03?

The optical power budget is approximately 10.1 dB based on transmitter and receiver specifications.

Can the OSX040N03 be used in 10G Ethernet and Fibre Channel networks?

Yes, it is compatible with both 10G Ethernet and 8G/10G Fibre Channel protocols.

How do I install the OSX040N03 optical transceiver?

Insert the module into an SFP+ port until it clicks, then connect the LC fiber cable.

Is the OSX040N03 compatible with major network equipment vendors?

Yes, it is vendor-neutral and interoperable with SFP+-enabled switches and routers.

What are the typical applications for the OSX040N03?

It’s ideal for data center uplinks, SANs, and short-reach interconnects up to 300 meters.

Does the OSX040N03 require any software drivers?

No additional drivers are required; it is recognized as a standard SFP+ module by most systems.

FEATURED DEAL

Name:

OSX040N03

Name: Optical Transceiver(SFP+,850nm,10Gb/s,-7.3~-1dBm,-11.1dBm,LC, MM,0.3km)
Brand: Huawei
SKU: OSX040N03
Price: 30.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Description:: Optical Transceiver(SFP+,850nm,10Gb/s,-7.3~-1dBm,-11.1dBm,LC, MM,0.3km)
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Huawei
GTIN:: 6920702795667
Condition:
Warranty:: 3
List Price:: $857.00
Price:: $30.0096.5% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

osx040n03 optical transceiver(sfp+,850nm,10gb/s,-7.3~-1dbm,-11.1dbm,lc, mm,0.3km)

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

OSX040N03

Optical Transceiver(SFP+,850nm,10Gb/s,-7.3~-1dBm,-11.1dBm,LC...

$857.00 $30.0096.5% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

OSX040N03 Overview

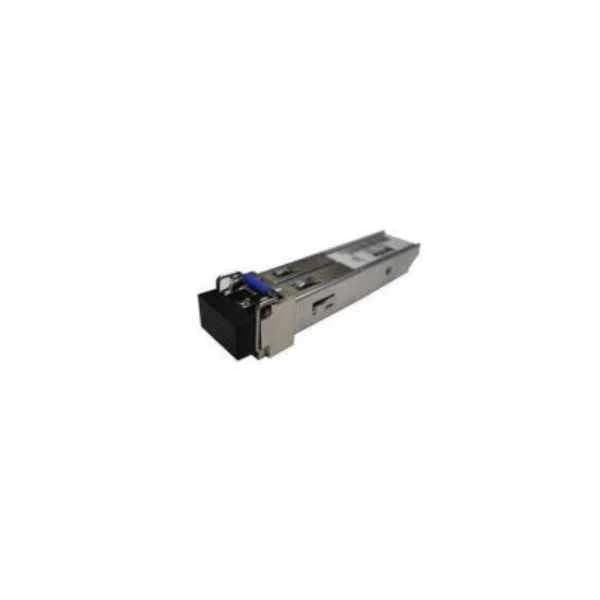

OSX040N03 is a high-performance SFP+ transceiver designed for 10G Ethernet applications. It features an LC connector, supports short-range transmission over multi-mode fiber, and adheres to industry-standard protocols such as Ethernet and Fibre Channel. Its compact SFP+ form factor and precise physical dimensions make it an ideal choice for high-density environments common in data centers, enterprise networks, and telecom infrastructures.

OSX040N03 is engineered to deliver reliable, high-speed connectivity while maintaining compatibility with leading network vendors like Cisco, Juniper, Huawei, and Arista. With robust performance, simplified installation, and optimized for mission-critical applications, this transceiver module provides network professionals a dependable solution to meet modern connectivity demands.

OSX040N03 price is $30.00, a 96.5% saving from the Huawei list price of $857.00. OSX040N03 is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for OSX040N03 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

OSX040N03 Specifications

Product Type: Transceiver
Form Factor: SFP+
Data Rate: 10G
Connector Type: LC
Wavelength: 850 nm
Transmission Distance: Short-Range
Fiber Type: Multi-mode
Max Distance: 300 meters
Supported Protocols: Ethernet, Fibre Channel
Network Interface: Ethernet
Power Consumption: 1.5W
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco, Juniper, Huawei, Arista
Product Name: OSX040N03
Height: 0.125 inches
Width: 0.87 inches
Depth: 1.65 inches
Weight: 0.05 lbs

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	OSX040N03	DWDM-SFPGE-1534-25	DWDM-SFPGE-1545-32	VC6MSFPLCS01	Huawei SFP-10G-ZR
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	SFP+	SFP	SFP	SFP+	SFP+
Data Rate	10G	25G	1G	10G	10G
Connector Type	LC	LC	LC	LC	LC
Wavelength	850 nm	1534 nm	1545.32 nm	850nm	1310 nm
Transmission Distance	Short-Range	Long-Range	Long-Range	Short-Range	Long-Range
Fiber Type	Multi-mode	Single-mode	Single-mode	Multi-mode	Single-mode
Max Distance	300 meters	80 km	80 km	300 meters	80 km
Supported Protocols	Ethernet, Fibre Channel	Ethernet	Ethernet	Ethernet	Ethernet
Network Interface	Ethernet	Ethernet	Fiber	Fiber	Fiber
Power Consumption	1.5W	N/A	3.5W	1.2W	3.5W
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Huawei
Product Name	OSX040N03	DWDM-SFPGE-1534-25	DWDM-SFPGE-1545-32	VC6MSFPLCS01 10GBASE-SR SFP+ Optical Transceiver	Huawei SFP-10G-ZR
Height	0.125 inches	N/A	0.3 inches	0.50 inches	N/A
Width	0.87 inches	N/A	0.7 inches	0.83 inches	N/A
Depth	1.65 inches	N/A	1.65 inches	1.25 inches	N/A
Weight	0.05 lbs	N/A	0.13 lbs	0.10 lbs	N/A

Reviews & Ratings

Andrew Mitchell

Stable multimode SFP plus for short reach 10G links.

Daniel Moore

Quick link up and consistent throughput.

James Turner

Good option for data center connections.

Paul Wilson

No signal issues observed.

Christopher Reed

Easy deployment.

Oliver Grant

Reliable short reach SFP plus.

Questions & Answers

What data rate does the OSX040N03 optical transceiver support?

The OSX040N03 optical transceiver supports a 10Gb/s data rate for high-speed networking.

Which fiber type is compatible with the OSX040N03?

The OSX040N03 is compatible with 50/125 µm multi-mode fiber (MMF).

What wavelength does the OSX040N03 operate at?

It operates at an 850 nm wavelength optimized for multi-mode applications.

What is the maximum transmission distance of the OSX040N03?

It supports a maximum link distance of 300 meters (0.3 km) over OM3 multi-mode fiber.
