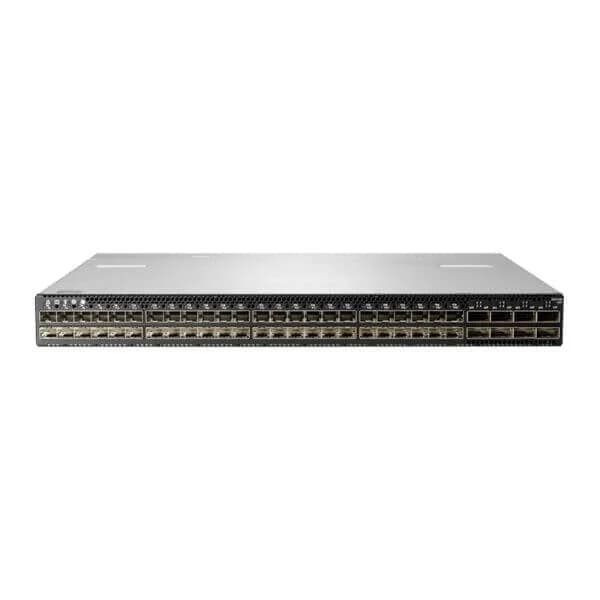

Q2F22A

Specification Of Q2F22A

General
Device Type	Switch - 48 ports - L3 - managed
Enclosure Type	Rack-mountable 1U
Subtype	25 Gigabit Ethernet
Ports	48 x 25 Gigabit SFP28 + 8 x 100 Gigabit QSFP28
Performance	Switching capacity: 4 Tbps | Processing rate: 5.95 Bpps | Cut-through latency: 300 ns
Remote Management Protocol	SNMP, Telnet, SSH, CLI
Authentication Method	RADIUS, TACACS+, LDAP
Features	IGMP snooping, port mirroring, store and forward, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), IPv4 support, LLDP support, DHCP relay, sFlow v5, 802.1x authentication, 16MB packet buffer, OpenFlow support, Protocol-based VLANs support, Storm Control, RDMA over Converged Ethernet (RoCE), random early detection (RED), Explicit Congestion Notification (ECN), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Multi Chassis Link Aggregation Group (MLAG), Open Shortest Path First (OSPF), Root Guard, Loop Guard, Voice VLAN, Top-of-Rack (ToR), STP BPDU Guard, BPDU Filter, Protocol Independent Multicast (PIM), hot swap fan tray
Compliant Standards	X.509
RAM	8 GB
Flash Memory	32 MB
Status Indicators	System, status, fan
Expansion / Connectivity
Interfaces	48 x 25Gbit LAN SFP28 | 8 x 100Gbit LAN QSFP28 | 1 x USB Type A | 2 x management | 1 x console RJ-45
Power
Power Device	Internal power supply - hot-plug
Installed Qty	2 (installed) / 2 (max)
Power Redundancy	Yes
Power Redundancy Scheme	1+1
Power Provided	460 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	165 Watt
Features	Power-to-port airflow
Miscellaneous
Included Accessories	2 power cords (C13 to C14), 4 intake fan trays, fixed rack mount kit, 2 x PSU cable retainer kit
Cables Included	1 x serial cable
Rack Mounting Kit	Included
Compliant Standards	EMC, FIPS 140-2, X.509, EN 61000-4-5:2006, EN 61000-4-11:2004, UL 60950-1:2007, EN 61000-3-3:2013, EN 55024:2010, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-6:2014, EN 61000-3-2:2014, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, VCCI V-3/2015.04 Class A, EN 55032:2012 Class A, ICES-003:2016 issue 6 Class A, LV, TR CU 020/2011, TR CU 004/2011, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, CAN/CSA C22.2 No. 60950-1:2007+A1:2011+A2:2014, DSTU EN 55032:2014, DSTU EN 60950-1:2014, EN 61000-4-2:2002, EN 61000-4-4:2004+A1:2010, FCC CFR47 Part 15 B 2017 Class A, AS/NZS CISPR32:2015 Class A, KN22:2009 Class A, KN24:2009
Software / System Requirements
Software Included	Mellanox ONIE
Dimensions & Weight
Width	17.2 in
Depth	17.2 in
Height	1.7 in
Weight	18.78 lbs
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 3 years - on-site
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85% (non-condensing)
