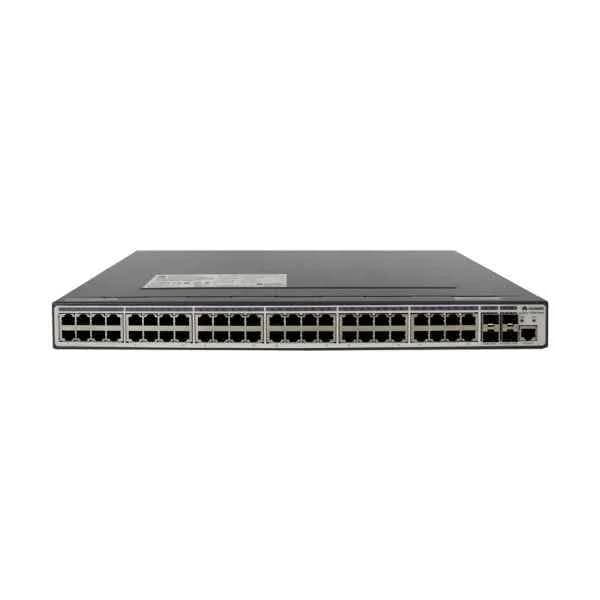

Name: S2700-52P-EI-AC Mainframe(48 Ethernet 10/100 ports, 4 Gig SFP, AC 110/220V)
Brand: Huawei
SKU: S2700-52P-EI-AC
Price: 462.43 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What is the HUAWEI S2700-52P-EI-AC mainframe?

Accepted Answer

The S2700-52P-EI-AC is a layer-2 managed switch featuring 48 10/100 Mbps Ethernet ports and 4 Gigabit SFP uplinks, designed for reliable SMB and enterprise branch connectivity.

Question 2

How many Ethernet and SFP ports does the S2700-52P-EI-AC offer?

Accepted Answer

It provides 48 Auto-MDI/MDIX 10/100 BASE-T ports and 4 Gigabit SFP slots for flexible fiber uplinks.

Question 3

Does the S2700-52P-EI-AC support Power over Ethernet (PoE)?

Accepted Answer

Yes, the switch supports 802.3af/at PoE on all 48 Ethernet ports, delivering up to 370 W total output for IP phones and cameras.

Question 4

What AC power input does the switch require?

Accepted Answer

The S2700-52P-EI-AC accepts dual AC inputs from 110 V to 220 V with auto-sensing for global deployment.

Question 5

What is the switching capacity and forwarding rate?

Accepted Answer

It delivers up to 26 Gbps switching capacity and a forwarding performance of 19.4 Mpps to ensure smooth traffic handling.

Question 6

Which fiber modules are compatible with the SFP uplinks?

Accepted Answer

The switch is compatible with standard 1000 BASE-SX/LX SFP modules and third-party Gigabit SFP transceivers supporting 850 nm and 1310 nm optics.

Question 7

What management features does the S2700-52P-EI-AC include?

Accepted Answer

It offers web GUI, CLI via console/SSH, SNMP v1/v2c/v3, RMON, and IPv6 management for comprehensive network control.

Question 8

Does it support advanced Layer-2 protocols?

Accepted Answer

Yes, it supports VLAN, GVRP, Spanning Tree (STP/RSTP/MSTP), Link Aggregation (LACP), and IGMP Snooping.

Question 9

What QoS capabilities are available on this switch?

Accepted Answer

The device features 8 hardware queues, strict/SP/WRR scheduling, DSCP/802.1p remarking, and ACL-based traffic classification.

Question 10

Is the S2700-52P-EI-AC rack-mountable?

Accepted Answer

Yes, it comes with a 19-inch rack-mount kit and takes up 1U of rack space for standard cabinet installation.

Question 11

What operating temperature range is supported?

Accepted Answer

The switch operates reliably between 0 °C and 40 °C, with relative humidity from 5% to 95% non-condensing.

Question 12

What is the MTBF of the S2700-52P-EI-AC?

Accepted Answer

The mean time between failures exceeds 100,000 hours, ensuring high network availability.

Question 13

What safety and compliance certifications does it hold?

Accepted Answer

It is CE, FCC, RoHS, and UL certified, meeting global safety and environmental standards.

Question 14

What is the device’s form factor and dimensions?

Accepted Answer

The 1U steel chassis measures 440 × 230 × 44.5 mm (W×D×H) and weighs approximately 3.5 kg.

Question 15

What warranty and support options are available?

Accepted Answer

Huawei offers a limited lifetime warranty with 24/7 phone support and software updates for three years.

Question 16

Which applications suit the S2700-52P-EI-AC best?

Accepted Answer

Ideal for small to medium offices, schools, retail stores, and branch offices needing reliable PoE and Gigabit uplinks.

	S2700-52P-EI-AC	S2700-26TP-SI-AC	S2750-28TP-EI-AC	S2700-9TP-EI-DC	S2720-52TP-EI
Depth	11 inches	8 inches	N/A	N/A	18.1 inches
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Flash Memory	64 MB	64 MB	64 MB	64 MB	64 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	1.75 inches	1.75 inches	N/A	N/A	1.73 inches
IOS	LAN Base	LAN Lite	IP Lite	LAN Base	IP Lite
Interface Ports	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Layer Supported	Layer 2	Layer 2	Layer 2	Layer 2	Layer 2
Manageable	Managed	Managed	Managed	Managed	Managed
Manufacturer Part Number	S2700-52P-EI-AC	S2700-26TP-SI-AC	S2750-28TP-EI-AC	S2700-9TP-EI-DC	S2720-52TP-EI
Media Type Supported	Combo	Twisted Pair	Twisted Pair	Twisted Pair	Twisted Pair / Fiber
Memory	256 MB	256 MB	256 MB	256 MB	256 MB
Number of Downlink Ports	48 Ports	24 Ports	24 Ports	8 Ports	48 Ports
Number of Ethernet Ports	Over 48 Ports	24–48 Ports	24–48 Ports	Under 12 Ports	24–48 Ports
POE Support	POE	Non POE	POE+	POE	POE+
Port/Expansion Slot Details	48 x 10/100/1000 PoE RJ45 ports and 4 x 10/100/1000 SFP ports	24 x 10/100/1000 RJ45 ports and 2 dedicated SFP uplink ports	24 PoE ports and 4 SFP uplink ports	N/A	48 PoE Gigabit Ethernet ports and 4 1G SFP uplink ports
Power Consumption	N/A	N/A	N/A	N/A	60 W
Power Source	AC Power Supply	AC Power Supply	AC Power Supply	N/A	AC Power Supply
Product Name	S2700-52P-EI-AC PoE Gigabit Switch	H3C S2700-26TP-SI-AC Gigabit Ethernet Switch	S2750-28TP-EI-AC 28-port Gigabit PoE Switch	S2700-9TP-EI-DC	HPE Aruba 2720-52TP-EI Switch
Product Type	Switch	Switch	Switch	Switch	Switch
Rack Units	1 RU	1 RU	1 RU	1 RU	1 RU
Redundant Power Supply Supported	No	No	No	No	No
SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports
Switching Capacity	128 Gbps	56 Gbps	56 Gbps	N/A	104 Gbps
Switching Capacity with Stacking	256 Gbps	112 Gbps	112 Gbps	N/A	208 Gbps
Uplink Configuration	1G	1G	1G	1G	1G
Weight	16 lbs	8 lbs	N/A	N/A	9.25 lbs
Width	17.5 inches	17.5 inches	N/A	N/A	17.5 inches
