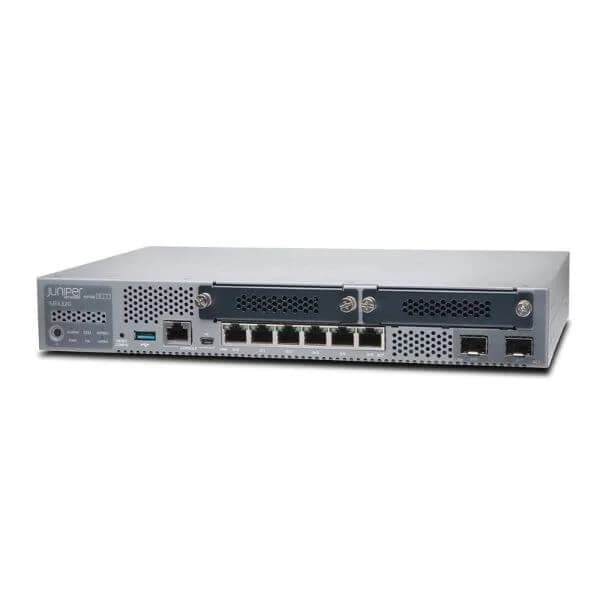

Name: SRX320-POE HW & JUNOS ENHANCED(JSE)
Brand: Juniper
SKU: SRX320-SYS-JE-P
Price: 847.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Question 1

What is the SRX320-SYS-JE-P device?

Accepted Answer

The SRX320-SYS-JE-P is a compact, high-performance branch gateway combining Power over Ethernet (PoE) hardware with Junos Enhanced (JSE) software for advanced security and networking.

Question 2

Which PoE capabilities does SRX320-SYS-JE-P support?

Accepted Answer

It offers eight 10/100/1000 Mbps PoE+ ports with a total PoE budget of 124 W to power IP phones, cameras, and access points.

Question 3

What throughput performance can I expect?

Accepted Answer

The SRX320 delivers up to 3 Gbps firewall throughput and up to 1 Gbps of IPsec VPN performance for secure branch connectivity.

Question 4

What is included in the Junos Enhanced (JSE) subscription?

Accepted Answer

JSE provides advanced threat protection, unified threat management, application visibility, identity-aware policies and encrypted traffic inspection.

Question 5

How many network interfaces does the SRX320-SYS-JE-P have?

Accepted Answer

It features eight PoE+ Ethernet ports, two Gigabit uplink ports, one console port and one USB management port.

Question 6

Can I deploy this device in a branch office?

Accepted Answer

Yes, the SRX320-SYS-JE-P is optimized for small to mid-size branch deployments requiring integrated PoE and advanced security services.

Question 7

Which VPN protocols are supported?

Accepted Answer

Supported VPN protocols include site-to-site IPsec, remote access SSL VPN and dynamic VPN for secure connectivity.

Question 8

What management tools are available?

Accepted Answer

Manage the device via Junos CLI, Juniper Network Director, Junos Space or Juniper’s Cloud-based management platforms.

Question 9

How do I license and renew JSE?

Accepted Answer

Purchase a 1-, 3- or 5-year JSE license through Juniper or authorized partners; renewal reinstitutes advanced security feature updates.

Question 10

What are the hardware dimensions and rack-mount options?

Accepted Answer

The unit measures 210 × 146 × 44 mm and includes optional rack-mount kits for 19″ racks or wall-mount brackets.

Question 11

What environmental specifications apply?

Accepted Answer

Operating range is 0 °C to 40 °C with 5%–90% non-condensing humidity, suitable for typical IT closets and small data centers.

Question 12

Does the device support high-availability features?

Accepted Answer

Yes, it supports chassis clustering in active/backup modes to ensure continuous operation and stateful failover.

Question 13

Which security services are available with JSE?

Accepted Answer

JSE includes intrusion prevention (IPS), antivirus, antispam, web filtering and advanced malware protection.

Question 14

How do I configure PoE port priorities?

Accepted Answer

Use the Junos CLI or GUI to assign PoE priority levels and allocate power budgets per port under the [edit chassis poe] hierarchy.

Question 15

Can I upgrade from base Junos to JSE on SRX320?

Accepted Answer

Yes, apply the JSE license key via the CLI or management interface to unlock enhanced security and application features.

Question 16

What warranty and support options exist?

Accepted Answer

Juniper provides a limited lifetime warranty on hardware with optional support plans including 24×7, next-business-day services.

Question 17

How does SRX320 integrate with SD-Branch architectures?

Accepted Answer

It integrates seamlessly via Juniper’s SD-Branch solution, enabling centralized orchestration, zero-touch provisioning and analytics.

	SRX320-SYS-JE-P	SRX5600X-B10-DC	SRX5600X-BASE	SRX4600-DC	SRX5800X-B10-AC
Product Type	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance	Firewall Appliance
Architecture	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Deployment Type	Branch Office / Enterprise	Enterprise / Data Center	Enterprise / Data Center / Branch Office	Data Center / Enterprise	Enterprise / Data Center / Carrier
Use Case	VPN / Secure Access / UTM	VPN / UTM	VPN / Secure Access / Segmentation / UTM	VPN / Secure Access / UTM	VPN / Secure Access / Segmentation / UTM
Firewall Layer Supported	Layer 3 / Layer 4 / Layer 7	Layer 7	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7	Layer 3 / Layer 4 / Layer 7
Power Source	AC Power Supply	DC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply
Redundant Power Supply Supported	Yes	Yes	Yes	Yes	Yes
Firewall Throughput	3 Gbps	100 Gbps	80 Gbps	145 Gbps	400 Gbps
Threat Protection Throughput	1.2 Gbps	40 Gbps	20 Gbps	20 Gbps	200 Gbps
IPS Throughput	700 Mbps	30 Gbps	17 Gbps	40 Gbps	150 Gbps
VPN Throughput	1 Gbps	40 Gbps	25 Gbps	100 Gbps	100 Gbps
Supported Applications	N/A	200	256	N/A	550
Centralized Configuration & Reporting	Yes	Junos Space	Yes	Yes	Yes
Feature	Next-Generation Firewall, Threat Prevention	High Performance Next-Generation Firewall	High performance security with integrated threat management	High Availability, Clustering, Scalability	Advanced Threat Prevention
Concurrent Sessions	100000	2000000	2000000	1,000,000	4000000
Maximum Concurrent Sessions	150000	4000000	4000000	1,000,000	4000000
Users/Nodes	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited
Integrated I/O	4	8	N/A	N/A	N/A
New Sessions Per Second	2000	150000	150000	250,000	500000
Supported VPN Types	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE	IPSec / SSL VPN	IPSec / SSL VPN
Routing Protocols Supported	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing	OSPF / BGP / RIP / Static Routing
Security Services	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN	Antivirus / Web Filtering / Application Control / IPS / VPN
High Availability	Active-Passive	Active-Passive	Active-Passive / Active-Active	Active-Passive / Active-Active	Active-Passive
Interfaces	RJ-45 / SFP	RJ-45 / SFP / SFP+ / Combo Ports	RJ-45 / SFP / SFP+	RJ-45 / SFP	RJ-45 / SFP / SFP+
WAN Ports	2 WAN	2 WAN	4 WAN	4 WAN	4 WAN
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	24 LAN Ports
Switch Ports	Yes	Yes	Yes	Yes	Yes
POE Ports	No	No	No	No	No
Management Options	CLI / GUI / SNMP	Cloud / CLI / GUI / Centralized / REST API / SNMP	Cloud / CLI / GUI / Centralized / REST API / SNMP	Cloud / CLI / GUI / Centralized / REST API / SNMP	Cloud / CLI / GUI / Centralized / REST API / SNMP
Logging & Monitoring	Built-in / Syslog	Built-in	Built-in / Syslog / Cloud Logging	Built-in / External / Syslog / Cloud Logging	Built-in / External / Syslog / Cloud Logging
Firewall Policies Supported	300	5000	1000	N/A	1000
Users Supported	5000	N/A	Unlimited	N/A	N/A
Memory	4 GB	16 GB	16 GB	16 GB	32 GB
Flash Storage	16 GB	64 GB	128 GB	128 GB	128 GB
Expansion Slots	N/A	SFP	SFP / NP Module	SFP	SFP
Form Factor	1 RU	2 RU	2 RU	1 RU	2 RU
Rack Units	1 RU	2 RU	2 RU	1 RU	2 RU
Device Type	NGFW	NGFW	NGFW	NGFW	NGFW
Product Name	SRX320-SYS-JE-P	SRX5600X-B10-DC	SRX5600X-BASE	SRX4600-DC	SRX5800X-B10-AC
Height	1.75 inches	3.5 inches	3.5	1.75 inches	4 inches
Width	17 inches	17.2 inches	17	17.1 inches	17 inches
Depth	15 inches	29 inches	28	18.5 inches	29 inches
Weight	15 lbs	35 lbs	35 lbs	35 lbs	60 lbs
