Question 1

What is the Cisco Catalyst 2960-X series switch?

Accepted Answer

The Cisco Catalyst 2960-X series is a fixed, enterprise-class Gigabit Ethernet switch family offering advanced Layer 2 and basic Layer 3 features, high energy efficiency, and simple deployment for small to midsize networks.

Question 2

What key features does the Catalyst 2960-X offer?

Accepted Answer

The Catalyst 2960-X delivers up to 48 Gigabit Ethernet ports, optional PoE+, FlexStack-Plus stacking, Cisco IOS Software, robust security, QoS, and Energy-Efficient Ethernet for reliable, scalable access switching.

Question 3

Does the Catalyst 2960-X support Power over Ethernet (PoE)?

Accepted Answer

Yes. The Catalyst 2960-X series supports PoE and PoE+ on selected models, delivering up to 30W per port to power IP telephones, wireless access points, and cameras without external injectors.

Question 4

What is the maximum PoE budget on a Catalyst 2960-X switch?

Accepted Answer

The maximum PoE budget is 370W on PoE+ models, enabling full-power delivery across all 48 ports simultaneously when using an external power supply or redundant power module.

Question 5

How many switches can be stacked with FlexStack-Plus?

Accepted Answer

With FlexStack-Plus, you can stack up to eight Catalyst 2960-X switches into a single logical unit, simplifying management and scaling bandwidth up to 80 Gbps stack throughput.

Question 6

What uplink options are available on the 2960-X?

Accepted Answer

Uplink options include two or four 1G SFP ports on entry models and two 10G SFP+ ports on higher-end models, offering flexible fiber or copper connectivity to the network core.

Question 7

What throughput and forwarding rate does the Catalyst 2960-X support?

Accepted Answer

The Catalyst 2960-X delivers up to 216 Gbps of switching capacity and a forwarding rate of up to 170.95 Mpps, ensuring wire-speed performance for high-density deployments.

Question 8

Which operating system runs on the Catalyst 2960-X?

Accepted Answer

The Catalyst 2960-X runs Cisco IOS Software with LAN Base or LAN Lite feature sets, providing network services, security, and management tailored to enterprise access deployments.

Question 9

What security features are included in the 2960-X series?

Accepted Answer

Security capabilities include IEEE 802.1X authentication, DHCP snooping, IP Source Guard, Dynamic ARP Inspection, port security, and Access Control Lists (ACLs) to protect against unauthorized access and threats.

Question 10

How does QoS work on the Catalyst 2960-X?

Accepted Answer

QoS on the Catalyst 2960-X uses 8 hardware queues per port, classification, marking, policing, queuing and shaping features to prioritize voice, video, and mission-critical data traffic.

Question 11

What warranty and support options are available?

Accepted Answer

Cisco offers a limited lifetime hardware warranty with next-business-day replacement and optional Cisco SMARTnet Service for 24x7 support, software updates, and accelerated hardware replacement.

Question 12

How do I configure stacking on the 2960-X series?

Accepted Answer

Use FlexStack-Plus modules and stacking cables to connect switches, enable stacking in the IOS with the 'switch stack-member-number priority' command, and verify stack status via 'show switch stack-ports'.

Question 13

What differentiates the 2960-X from the 2960-S series?

Accepted Answer

Compared to the 2960-S, the 2960-X adds higher throughput, FlexStack-Plus stacking, enhanced PoE+, Energy-Efficient Ethernet, and improved Cisco TrustSec and resilience features.

Question 14

What licenses are available for Catalyst 2960-X switches?

Accepted Answer

Catalyst 2960-X supports LAN Base and LAN Lite IOS Software feature sets. Upgrading licenses is done via Cisco Smart Licensing to enable additional Layer 2 features or basic Layer 3 routing.

Question 15

Can the Catalyst 2960-X be deployed in enterprise and campus networks?

Accepted Answer

Yes. The Catalyst 2960-X is ideal for enterprise campus access and branch office deployments, offering consistent network policies, PoE, security, and management integration with Cisco DNA Center.

Networking Switch Catalyst 2960-X

WS-C2960X-48FPD-L (Catalyst 2960-X 48 GigE PoE 740W, 2 x 10G SFP+, LAN Base)

WS-C2960X-48LPD-L (Catalyst 2960-X 48 GigE PoE 370W, 2 x 10G SFP+ LAN Base)

WS-C2960X-24PD-L (Catalyst 2960-X 24 GigE PoE 370W, 2 x 10G SFP+, LAN Base)

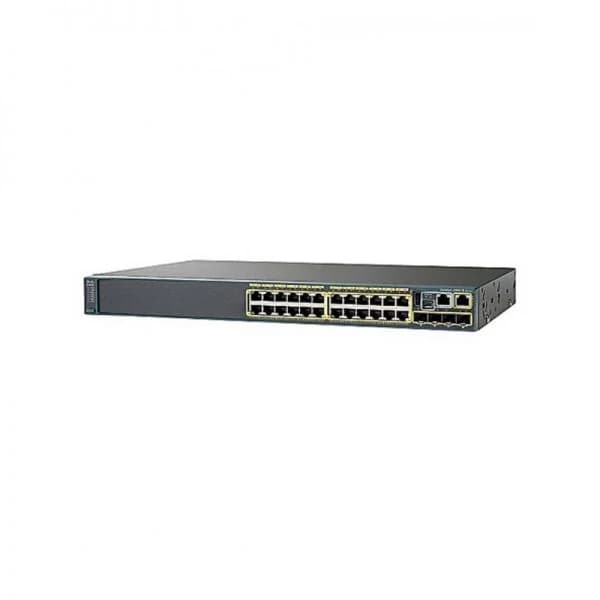

WS-C2960X-24TD-L (Catalyst 2960-X 24 GigE, 2 x 10G SFP+, LAN Base)

WS-C2960-24-S (Catalyst 2960 24 10/100 LAN Lite Image)

WS-C2960-24TC-S (Catalyst 2960 24 10/100 + 2 T/SFP LAN Lite Image)

WS-C2960-24PC-S (Catalyst 2960 24 10/100 PoE + 2 T/SFP LAN Lite Image)

WS-C2960-24LC-S (Catalyst 2960 24 10/100 (8 PoE) + 2 T/SFP LAN Lite Image)

WS-C2960-24LT-L (Catalyst 2960 24 10/100 (8 PoE)+ 2 1000BT LAN Base Image)

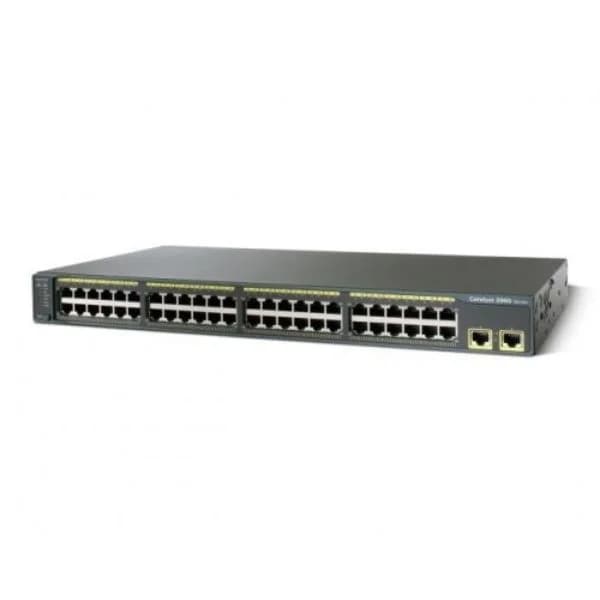

WS-C2960-48TT-L (Catalyst 2960 48 10/100 + 2 1000BT LAN Base Image)

WS-C2960PD-8TT-L-M (Catalyst 2960PD Multipack (6))

WS-C2960-48PST-L-M (Catalyst 2960 48 10/100 PoE + 2 SFP + 2 1000BT LB 3-pack)

WS-C2960X-24PS-L (Catalyst 2960-X 24 GigE PoE 370W, 4 x 1G SFP, LAN Base)

WS-C2960X-24TS-L (Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base)

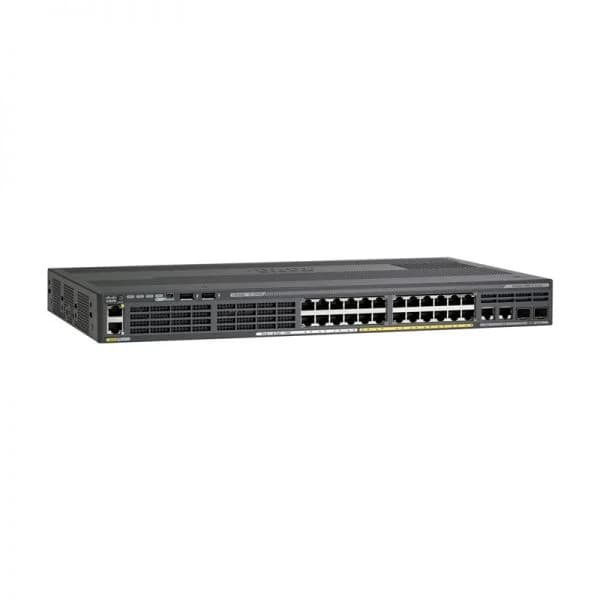

WS-C2960X-24TS-LL (Catalyst 2960-X 24 GigE, 2 x 1G SFP, LAN Lite)

WS-C2960X-24PSQ-L (Catalyst 2960-X 24 GigE PoE 110W, 2xSFP + 2x1GBT, LAN Base)

WS-C2960X-48LPS-L (Catalyst 2960-X 48 GigE PoE 370W, 4 x 1G SFP, LAN Base)

WS-C2960X-48TS-L (Catalyst 2960-X 48 GigE, 4 x 1G SFP, LAN Base)

WS-C2960X-48FPS-L (Catalyst 2960-X 48 GigE PoE 740W, 4 x 1G SFP, LAN Base)

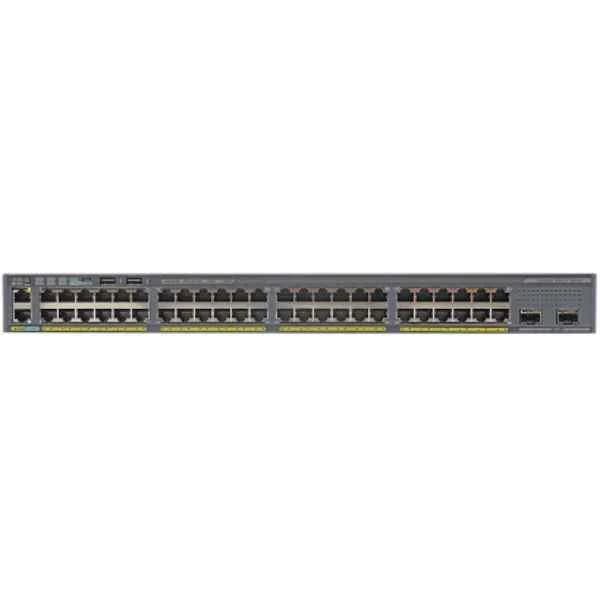

WS-C2960X-48TD-L (Catalyst 2960-X 48 GigE, 2 x 10G SFP+, LAN Base)
