Question 1

What are H3C transceivers and how do they work?

Accepted Answer

H3C transceivers are modular pluggable network devices that convert electrical signals into optical signals and vice versa, enabling high-speed data transmission over fiber or copper media.

Question 2

Which H3C SFP transceivers are compatible with 1G Ethernet ports?

Accepted Answer

H3C SFP transceivers such as the SFP-SX (H3C3CX10GE-SFP-S) and SFP-LX (H3C3CX10GE-SFP-L) support 1G Ethernet and are fully compatible with standard 1G SFP ports.

Question 3

What is the maximum reach of H3C 10G SFP+ transceivers?

Accepted Answer

H3C 10G SFP+ transceivers achieve up to 300 meters over multimode fiber (SR module) and up to 10 kilometers over single-mode fiber (LR module).

Question 4

Are H3C transceivers hot-pluggable?

Accepted Answer

Yes, all H3C transceivers are hot-pluggable, allowing you to install or replace modules without powering down the network device.

Question 5

How do I verify H3C transceiver compatibility with third-party switches?

Accepted Answer

Check the H3C interoperability matrix and firmware release notes; certified third-party switches will list supported H3C transceiver part numbers.

Question 6

Do H3C transceivers support Digital Optical Monitoring (DOM)?

Accepted Answer

Most H3C SFP and SFP+ modules support DOM, providing real-time monitoring of optical power, temperature, and voltage.

Question 7

What is the difference between H3C SFP and SFP+ transceivers?

Accepted Answer

H3C SFP modules support up to 1G data rates, while SFP+ modules handle up to 10G, both sharing the same form factor but differing in performance specifications.

Question 8

Can H3C transceivers operate at multiple wavelengths?

Accepted Answer

H3C single-mode transceivers are optimized for specific wavelengths (1310 nm for LR, 1550 nm for ER), while BiDi modules use two wavelengths (e.g., 1310/1490 nm) over a single fiber.

Question 9

How do I install an H3C transceiver correctly?

Accepted Answer

Align the transceiver with the port guide rails, slide it gently until it clicks, then secure the latch and connect the fiber or copper cable.

Question 10

What warranty do H3C transceivers include?

Accepted Answer

H3C transceivers carry a standard one-year warranty covering manufacturing defects and performance failures under normal operating conditions.

Question 11

How can I troubleshoot a degraded link with an H3C transceiver?

Accepted Answer

Verify fiber cleanliness, check DOM statistics for power levels, confirm cable type and length, and ensure the transceiver is properly seated in the port.

Question 12

Are H3C transceivers compliant with MSA standards?

Accepted Answer

Yes, all H3C transceivers adhere to Multi-Source Agreement (MSA) standards, ensuring interoperability across a wide range of network equipment.

Question 13

How do I select the right H3C transceiver for long-distance links?

Accepted Answer

Choose single-mode modules—LR for up to 10 km, ER for up to 40 km, or ZR for up to 80 km—based on your required transmission distance.

Question 14

Can H3C copper transceivers support PoE devices?

Accepted Answer

H3C copper transceivers (SFP-TX) support standard Ethernet power over cable but rely on the switch’s PoE capabilities to deliver power to end devices.

Question 15

Where can I purchase genuine H3C transceivers?

Accepted Answer

Buy from H3C authorized distributors or the official H3C online store to ensure genuine products, warranty coverage, and technical support.

Question 16

How do I decode H3C transceiver part numbers?

Accepted Answer

H3C part numbers follow a structured format: module type (e.g., SFP, SFP+), data rate, reach classification (SX, LX, LR), and additional features like DOM or BiDi.

H3C Transceivers Optimized Network Performance

SFP-GE-LX-SM1310-A (1000BASE-LX SFP Transceiver, Single Mode (1310nm, 10km, LC))

LSPM1AC360 (360W PoE AC Power Module of H3C S5130S-28S-PWR-EI)

SFP-GE-LH40-SM1310-D (Optical Transceiver - SFP-GE - Single Mode Module - (1310nm, 40km, LC))

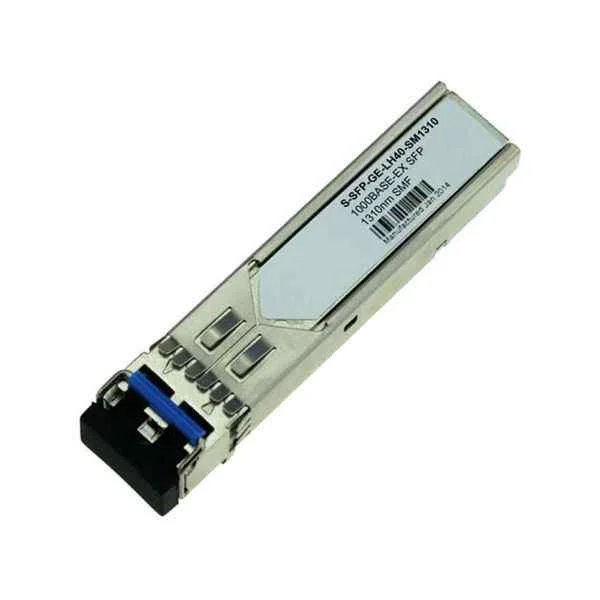

SFP-GE-LH40-SM1310 (1000BASE-LH40 SFP Transceiver, Single Mode (1310nm, 40km, LC))

SFP-XG-LX-SM1310-E (1310nm 10km 10g sfp module)

LSPM1AC720 (720W PoE AC Power Module)

SFP-XG-LX-SM1310 (SFP+ Module(1310nm,10km,LC))

SFP-XG-LH40-SM1550-D (10GBASE-ER SFP+ Module, SMF 1550nm, 40km, DDM.)

SFP-GE-LX-SM1310-D (H3C 1000BASE-LX SFP Transceiver, SMF 1310nm 10km, Duplex LC, DDM)

SFP-XG-LX-SM1310-D (SFP+ 10 Gigabit Module (1310nm, 10km, LC))

LSPM1FANSB (S5560 Ethernet Switch Fan Module(Power supply side outlet))

SFP-GE-SX-MM850-A (1000BASE-SX SFP multimode Transceivers(850nm,0.55km,LC))

SFP-XG-SX-MM850-E (850nm 300m sfp module)

SFP-XG-SX-MM850-A (H3C SFP-XG-SX-MM850-A 10GBASE-SR SFP+ 850nm 300m DOM LC MMF Transceiver Module)

LSWM2STK (SFP+Cable 1.2m)

LSPM2150A (150W AC Power Module)

LSWM1QSTK0 (40G QSFP+ Cable 1m)

LSWM124XGT2Q (24-Port 10GBASE-T and 2-Port QSFP Plus Interface Card with MACSec)

QSFP-40G-BIDI-SR-MM850 (QSFP+ 40G BIDI Optical Transceiver(850nm,100m,SR))

QSFP-100G-SR4-MM850 (100G QSFP28 Optical Transceiver(850nm,100m OM4,SR4,MPO))
