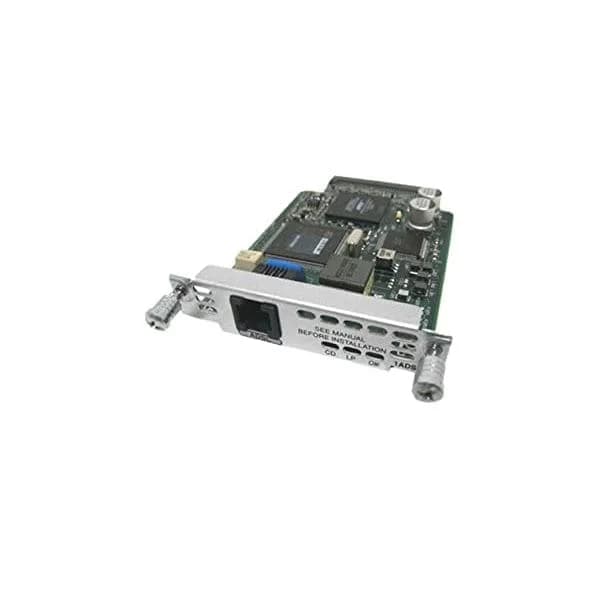

WIC-1ADSL
1-port ADSL WAN Interface Card
TRUSTED, TRIED, PROVEN
Inventory Delivered By
& Verified By
Solutions Powered By
WIC-1ADSL is a WAN module designed to bring ADSL connectivity to compatible Cisco routers. This module integrates a dedicated ADSL modem with an RJ-11 connector to interface with standard telephone lines, enabling broadband data transmission that conforms to ADSL standards. It supports industry-standard ADSL protocols and is optimized for environments requiring cost‐effective, always-on WAN connectivity.
WIC-1ADSL features a compact, modular form factor that installs directly into the router’s WIC slot, making it ideal for branch offices or remote sites where efficient and reliable data services are needed. The device is engineered to work seamlessly with TCP/IP networks, ensuring smooth integration into existing infrastructures, while its design emphasizes straightforward installation and robust operation under a wide range of operating conditions.
WIC-1ADSL price is $331.00, a 55.9% saving from the Cisco list price of $750.00. WIC-1ADSL is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for WIC-1ADSL for additional pricing. Browse the full Router Wic Wan Cards series or explore all Cisco products.
To get the detailed certification, please go to the Compliance Center.

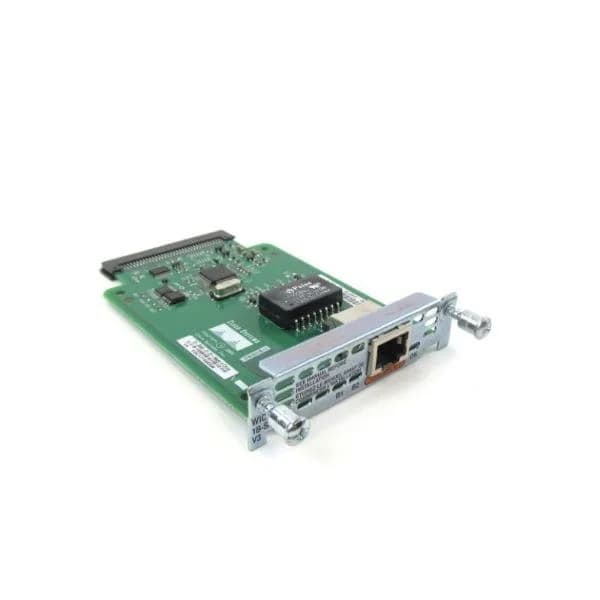

| WIC-1ADSL |  WIC-1B-S/T-V3 |  WIC-1ADSL-T1 |  WIC-1T |  WIC-2A/S | |
|---|---|---|---|---|---|
| Product Type | Network Module / Network Card | WAN Module | WAN Module | Network Module | Network Module / Network Card |
| Module Type | WAN Module | WAN | WAN | WAN Module | WAN Module |
| Data Rate | Downstream: 8 Mbps, Upstream: 1 Mbps | N/A | 1.544Mbps (T1) / Up to 8Mbps (ADSL) | 1Gbps | 1Gbps |
| Connector Type | RJ-11 | RJ-45 | RJ-48 / ADSL Port | RJ-45 | RJ-45 |
| Supported Protocols | TCP/IP, ADSL | TCP/IP | TCP/IP, PPP, HDLC | TCP/IP | TCP/IP |
| Form Factor | Modular | Modular | Modular (WIC slot) | Modular | Modular |
| Operating Temperature | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
| Storage Temperature | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C |
| Input Voltage | 3.3V | 3.3V | 5V DC | 3.3V | 3.3V |
| Compatibility | Cisco | Cisco | Cisco Integrated Services Routers | Cisco, Juniper, Arista, Dell, HP | Cisco |
| Max Speed | N/A | N/A | 1.544Mbps (T1) / Up to 8Mbps (ADSL) | 1Gbps | 1Gbps |
| Supported Features | N/A | Auto-negotiation / QoS | Auto-negotiation, QoS | Auto-negotiation, Wake-on-LAN, Jumbo Frames, QoS | Auto-negotiation / Wake-on-LAN / Jumbo Frames / QoS |
| Power Consumption | N/A | N/A | 4W | 5W | 7W |
| Interface Ports | RJ-11 | N/A | T1 and ADSL | Ethernet | Ethernet |
| Expansion Slots | WIC | EHWIC | WIC Slot | EHWIC | WIC |
| Product Name | WIC-1ADSL | WIC-1B-S/T-V3 | WIC-1ADSL-T1 | WIC-1T | WIC-2A/S Dual WAN Interface Card |
| Height | N/A | N/A | N/A | 1.5 inches | 1.0 inches |
| Width | N/A | N/A | N/A | 3.0 inches | 4.0 inches |
| Depth | N/A | N/A | N/A | 2.0 inches | 0.5 inches |
| Weight | N/A | N/A | N/A | 1.2 lbs | 0.5 lbs |
The WIC-1ADSL module provides reliable ADSL connectivity. It ensures fast and stable internet access, improving our network's overall efficiency.
This module is perfect for expanding our network. The WIC-1ADSL delivers reliable ADSL connectivity and ensures smooth, high-speed data transfer.
The WIC-1ADSL module integrates seamlessly. It supports stable ADSL connections, improving the reliability and speed of our network.
We rely on the WIC-1ADSL for fast and stable internet connections. It's been a great addition to our network infrastructure.
The WIC-1ADSL module offers excellent ADSL connectivity. It ensures stable, fast internet access, improving the overall performance of our network.
The Cisco WIC-1ADSL is a single-port WAN Interface Card that enables ADSL broadband connectivity on compatible routers for cost-effective Internet access.
The WIC-1ADSL is supported on Cisco Integrated Services Routers (ISR) and Cisco 2500, 2600, 3600, and 3700 series routers with WIC expansion slots.
It supports ITU G.992.1 (ADSL), G.992.3 (ADSL2) and G.992.5 (ADSL2+) standards for flexible deployment and backward compatibility.
The WIC-1ADSL delivers up to 8 Mbps downstream and 832 Kbps upstream, depending on line conditions and service provider provisioning.
Yes, it maintains full backward compatibility with legacy ADSL networks to ensure seamless integration with existing DSL infrastructure.
Yes, it supports both ADSL2 and ADSL2+ for enhanced bandwidth and performance over standard ADSL connections.
The module features a single RJ-11 connector for the ADSL line and interfaces directly with the router’s internal backplane.
Power off the router, insert the WIC-1ADSL into an available WIC slot, secure the card with the chassis screw, then power the router back on.
No additional software is required, but ensure your router runs a Cisco IOS release that recognizes ADSL WAN interface cards.
In IOS, enter interface atm0/0, set encapsulation with “encapsulation aal5snap,” and configure PPPoE or PPPoA dialer profiles as needed.
No, the WIC-1ADSL is not hot-swappable; you must power down the router before inserting or removing the card.
The module draws power directly from the router’s backplane and does not require any external power sources.
Use “show controllers atm 0/0” for signal diagnostics, verify RJ-11 cabling and check your service provider’s line status for any outages.
It supports PPPoA, PPPoE, MPoA and standard CHAP/PAP authentication to secure your broadband link.
Yes, it can carry VoIP traffic over the DSL link but requires a separate VoIP gateway or voice-enabled router for call processing.
Cisco offers a limited lifetime warranty and provides technical assistance through the Cisco TAC with a valid support contract.
