Q
What is the Cisco Aironet 3600 Series Access Point?
A
The Cisco Aironet 3600 Series Access Point is a high-performance indoor wireless device that delivers 802.11ac Wave 2 speeds, multi-gigabit Ethernet, and multi-user MIMO for enterprise-grade connectivity.
Q
What key features does the Cisco 3600 Access Point offer?
A
Key features include 4x4 MU-MIMO, 5 GHz and 2.4 GHz concurrent radios, 2.5 Gbps Ethernet, Cisco CleanAir® interference mitigation, and Flexible Radio Assignment.
Q
Which 802.11 wireless standards are supported by the Cisco 3600?
A
The Cisco 3600 supports IEEE 802.11a/b/g/n/ac Wave 2 standards, ensuring backward compatibility and high-speed performance in mixed-client environments.
Q
What maximum aggregate throughput does the Cisco 3600 deliver?
A
The Cisco 3600 delivers up to 5.2 Gbps aggregate throughput leveraging dual-band radios and multi-user MIMO, optimizing capacity for high-density deployments.
Q
How does the Cisco 3600 support MU-MIMO and beamforming?
A
The Cisco 3600 implements 4x4 MU-MIMO to serve multiple clients simultaneously and uses explicit beamforming to enhance signal quality and range.
Q
What Power over Ethernet (PoE) options are required for the Cisco 3600?
A
The Cisco 3600 requires 802.3at (PoE+) or Cisco Universal PoE (UPoE) for full functionality, delivering up to 30 W for radios and optional USB devices.
Q
What antenna options are available for the Cisco 3600 Access Point?
A
The Cisco 3600 offers internal high-gain omni-directional antennas or external antenna connectors for specialized directional or sector coverage via the Cisco Aironet antenna portfolio.
Q
How can I manage and monitor the Cisco 3600 Access Point?
A
You can manage the Cisco 3600 via Cisco DNA Center, Cisco Wireless LAN Controller (WLC), or Cisco Prime Infrastructure for centralized provisioning, monitoring, and analytics.
Q
Is an external antenna required for optimal performance?
A
No, the Cisco 3600’s internal high-gain antennas provide robust coverage for most indoor deployments; external antennas are optional for tailored RF patterns or extended range.
Q
What security protocols and features are included with the Cisco 3600?
A
Security features include WPA3, 802.1X/EAP, MACsec encryption, rogue AP detection, Cisco TrustSec, and integrated Secure Guest Access to protect enterprise Wi-Fi.
Q
What deployment modes does the Cisco 3600 support?
A
The Cisco 3600 supports lightweight mode with WLC, autonomous mode, FlexConnect™ for branch deployments, and OfficeExtend for remote user connectivity.
Q
How do I upgrade the firmware on my Cisco 3600 Access Point?
A
Firmware can be upgraded via the Wireless LAN Controller GUI, CLI, Cisco DNA Center image repository, or TFTP server following Cisco’s version compatibility guidelines.
Q
What are the operating and environmental specifications of the Cisco 3600?
A
Operating temperature ranges from 0 °C to 40 °C, humidity from 10% to 90% non-condensing, with a maximum altitude of 4,000 m and a MTBF exceeding 100,000 hours.
Q
Which management platforms are compatible with the Cisco 3600?
A
Compatible platforms include Cisco DNA Center for intent-based networking, Cisco Prime Infrastructure for lifecycle management, and Cisco Mobility Express for controllerless deployments.
Q
What warranty and support options are available for the Cisco 3600?
A
Cisco offers a limited lifetime hardware warranty plus access to Cisco SMARTnet® technical support for advanced replacement, software updates, and 24×7 expert assistance.
Q

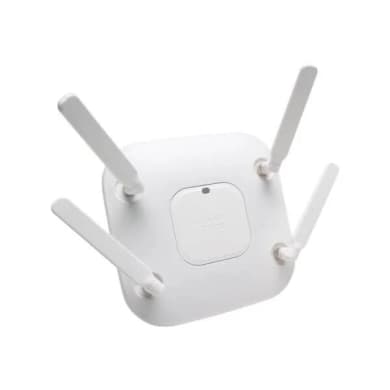

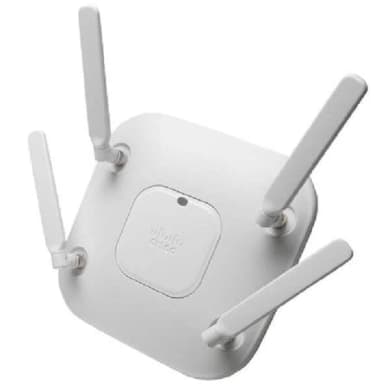

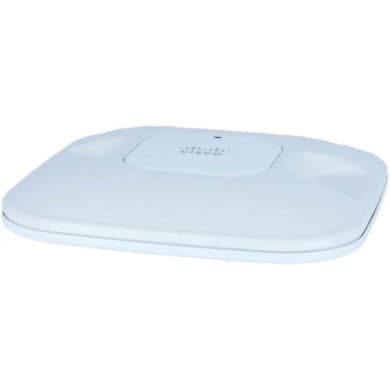

What differentiates the 3602I from the 3602E model?
A
The 3602I features internal antennas for general indoor coverage, while the 3602E provides external antenna connectors for customized RF designs and extended range deployments.
