What wavelength does the XFP-10GER-192IR+ operate at?

The transceiver operates at a nominal wavelength of 1310 nm for both 10GBASE-ER and OC-192/STM-64 IR-2 modes.

Is the XFP-10GER-192IR+ hot-swappable?

Yes, the module supports hot-swap capability, allowing insertion or removal without powering down the host device.

Which Cisco platforms are compatible with SKU XFP-10GER-192IR+?

It is compatible with Cisco routers and switches that feature XFP slots, including ASR 9000, CRS-1, NCS 2000, and Catalyst 6500 series with XFP support.

How do I install the Cisco XFP-10GER-192IR+ module?

Insert the module into an available XFP port until it clicks, then verify link status via the device CLI or management interface.

What is the power consumption of this XFP module?

Typical power consumption is 2.5 W, with a maximum of 3.5 W under full load and digital diagnostic monitoring active.

What operating temperature range does the module support?

It operates between 0 °C and 70 °C (32 °F to 158 °F) for standard commercial environments.

Does the XFP-10GER-192IR+ support Digital Optical Monitoring (DOM)?

Yes, it includes SFF-8472 compliant DOM for real-time monitoring of optical power, temperature, voltage, and bias current.

What is OC-192/STM-64 IR-2 compliance?

OC-192/STM-64 IR-2 compliance refers to intermediate reach (up to 40 km) SONET/SDH transmission using 1310 nm optics.

What’s the difference between 10GBASE-ER and OC-192/STM-64 IR-2?

10GBASE-ER is an Ethernet standard for 10 Gbps over 40 km, while OC-192/STM-64 IR-2 is a SONET/SDH standard at the same speed and distance.

Can I deploy this module in DWDM networks?

No, the XFP-10GER-192IR+ is designed for CWDM/SMF use; it does not support DWDM channel spacing or tuning.

How do I verify module operation after installation?

Use the show interfaces transceiver detail CLI command to check status, optical power levels, and diagnostic data.

How can I order a genuine Cisco XFP-10GER-192IR+?

Order through authorized Cisco partners or the Cisco e-commerce portal using SKU XFP-10GER-192IR+ to ensure authenticity and support.

FEATURED DEAL

Name:

XFP-10GER-192IR+

Name: Cisco Multirate 10GBASE-ER and OC-192/STM-64 IR-2 XFP Module
Brand: Cisco
SKU: XFP-10GER-192IR+
Price: 4540.00 USD
Availability: InStock
Rating: 4.4 (7 reviews)

Description:: Cisco Multirate 10GBASE-ER and OC-192/STM-64 IR-2 XFP Module
Rating:: 4.4(7)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Cisco
GTIN:: 662164346723
Condition:
Warranty:: 3
List Price:: $10,000.00
Price:: $4,540.0054.6% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

xfp-10ger-192ir+ cisco multirate 10gbase-er and oc-192/stm-64 ir-2 xfp module

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

XFP-10GER-192IR+

Cisco Multirate 10GBASE-ER and OC-192/STM-64 IR-2 XFP Module

$10,000.00 $4,540.0054.6% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

XFP-10GER-192IR+ Overview

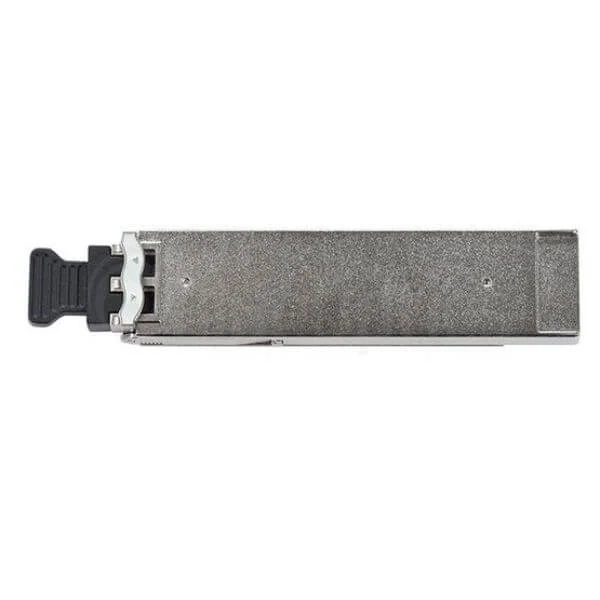

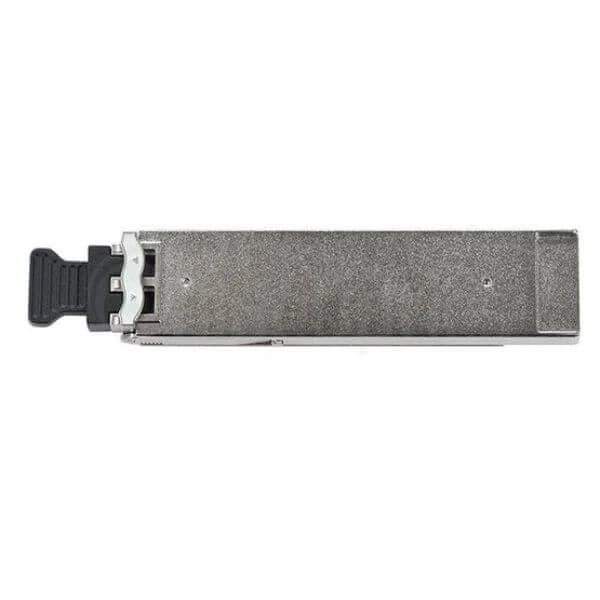

Overview of "XFP-10GER-192IR+" – XFP-10GER-192IR+ is an XFP transceiver module that delivers 10G Ethernet connectivity using an LC-connector interface. It is designed for extended-range applications over single-mode fiber, supporting high-performance, long-distance data transmission in data centers, enterprise networks, and telecom infrastructures.

Engineered to work with Ethernet protocols, this module meets the rigorous demands of modern optical networks while maintaining a compact XFP form factor with precise physical dimensions for easy integration. Its reliability and vendor compatibility with Cisco, Juniper, Huawei, Arista, and others make it an optimal solution for future-proof network expansions.

XFP-10GER-192IR+ price is $4,540.00, a 54.6% saving from the Cisco list price of $10,000.00. XFP-10GER-192IR+ is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for XFP-10GER-192IR+ for additional pricing. Browse the full Cisco Xfp Module series or explore all Cisco products.

XFP-10GER-192IR+ Specifications

Product Type: Transceiver
Form Factor: XFP
Data Rate: 10G
Connector Type: LC
Wavelength: 1550nm
Transmission Distance: Extended-Range
Fiber Type: Single-mode
Max Distance: 40 km
Supported Protocols: Ethernet
Network Interface: Fiber
Power Consumption: 2.5W
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco / Juniper / Huawei / Arista
Product Name: XFP-10GER-192IR+
Height: 0.65 inches
Width: 3.25 inches
Depth: 0.85 inches
Weight: 0.2 lbs

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	XFP-10GER-192IR+	XFP10GER-192IR-L	DWDM-XFP-58.98	DWDM-XFP-55.75	DWDM-XFP-39.77
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista
Connector Type	LC	LC	LC	LC	LC
Data Rate	10G	10G	10G	10G	10G
Depth	0.85 inches	1.10 inches	0.67 inches	1.50 inches	3.5 inches
Fiber Type	Single-mode	Single-mode	Single-mode	Single-mode	Single-mode
Form Factor	XFP	XFP	XFP	XFP	XFP
Height	0.65 inches	0.22 inches	0.67 inches	0.28 inches	0.65 inches
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Max Distance	40 km	80 km	80 km	80 km	120 km
Network Interface	Fiber	Fiber	Fiber	Ethernet	Ethernet
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Power Consumption	2.5W	3.5 W	2.5 W	3.5W	3.5 W
Product Name	XFP-10GER-192IR+	XFP10GER-192IR-L	DWDM-XFP-58.98	DWDM-XFP-55.75	DWDM-XFP-39.77
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Supported Protocols	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet / Fibre Channel	Ethernet, Fibre Channel
Transmission Distance	Extended-Range	Long-Range	Long-Range	Long-Range	Extended-Range
Wavelength	1550nm	1550 nm	1550 nm	1550 nm	1550 nm
Weight	0.2 lbs	0.35 lbs	0.1 lbs	0.15 lbs	0.25 lbs
Width	3.25 inches	0.92 inches	0.78 inches	1.20 inches	0.65 inches

Reviews & Ratings

George Thornton

XFP-10GER-192IR+ delivered stable multirate 10G and OC-192 connectivity.

Hamza Siddiq

Reliable long-reach performance with strong signal integrity.

Irfan Malik

Integrated seamlessly into our transport platform.

James Walker

Consistent throughput across 10G and SONET environments.

Kamran Shah

Predictable latency and dependable optical output.

Lewis Harper

High-quality XFP module for mixed 10G and OC-192 networks.

Mustafa Tariq

Stable performance supporting carrier-grade infrastructure.

Questions & Answers

What is the Cisco XFP-10GER-192IR+ module?

The Cisco XFP-10GER-192IR+ is a multirate XFP transceiver supporting 10GBASE-ER Ethernet and OC-192/STM-64 IR-2 optical links on single-mode fiber.

Which network standards does the XFP-10GER-192IR+ support?

It supports IEEE 802.3ae 10GBASE-ER Ethernet and ITU-T G.691 OC-192/STM-64 IR-2 SONET/SDH standards.

What is the maximum transmission distance of this module?

Over single-mode fiber, the module reaches up to 40 kilometers at 10GBASE-ER and OC-192/STM-64 IR-2 rates.

Which fiber type and connector are required?

It requires ITU-T G.652 single-mode fiber and an LC duplex connector for all optical links.

Related Searches Cisco Xfp Module

XFP-10GER-OC192IR-C XFP-10GER-192IR+-C XFP10GER-192IR-L-C XFP10GER192IR-RGD XFP10GER-192IR-L XFP-10GZR-OC192LR-C XFP-10GLR-OC192SR-C XFP10GLR192SR-RGD

XFP-10GER-192IR+ Overview

Request bulk order quote for XFP-10GER-192IR+ for additional pricing. Browse the full Cisco Xfp Module series or explore all Cisco products.

XFP-10GER-192IR+ Specifications

Product Type

Transceiver

Form Factor

XFP

Data Rate

10G

Connector Type

Wavelength

1550nm

Transmission Distance

Extended-Range

Fiber Type

Single-mode

Max Distance

40 km

Supported Protocols

Ethernet

Network Interface

Fiber

Power Consumption

2.5W

Operating Temperature

0 to 70°C

Storage Temperature

-40 to 85°C

Input Voltage

3.3V

Compatibility

Cisco / Juniper / Huawei / Arista

Product Name

XFP-10GER-192IR+

Height

0.65 inches

Width

3.25 inches

Depth

0.85 inches

Weight

0.2 lbs

Product Comparison Table

	XFP-10GER-192IR+	XFP10GER-192IR-L	DWDM-XFP-58.98	DWDM-XFP-55.75	DWDM-XFP-39.77
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista
Connector Type	LC	LC	LC	LC	LC
Data Rate	10G	10G	10G	10G	10G
Depth	0.85 inches	1.10 inches	0.67 inches	1.50 inches	3.5 inches
Fiber Type	Single-mode	Single-mode	Single-mode	Single-mode	Single-mode
Form Factor	XFP	XFP	XFP	XFP	XFP
Height	0.65 inches	0.22 inches	0.67 inches	0.28 inches	0.65 inches
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Max Distance	40 km	80 km	80 km	80 km	120 km
Network Interface	Fiber	Fiber	Fiber	Ethernet	Ethernet
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Power Consumption	2.5W	3.5 W	2.5 W	3.5W	3.5 W
Product Name	XFP-10GER-192IR+	XFP10GER-192IR-L	DWDM-XFP-58.98	DWDM-XFP-55.75	DWDM-XFP-39.77
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Supported Protocols	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet / Fibre Channel	Ethernet, Fibre Channel
Transmission Distance	Extended-Range	Long-Range	Long-Range	Long-Range	Extended-Range
Wavelength	1550nm	1550 nm	1550 nm	1550 nm	1550 nm
Weight	0.2 lbs	0.35 lbs	0.1 lbs	0.15 lbs	0.25 lbs
Width	3.25 inches	0.92 inches	0.78 inches	1.20 inches	0.65 inches

Questions & Answers

What is the Cisco XFP-10GER-192IR+ module?

The Cisco XFP-10GER-192IR+ is a multirate XFP transceiver supporting 10GBASE-ER Ethernet and OC-192/STM-64 IR-2 optical links on single-mode fiber.

Which network standards does the XFP-10GER-192IR+ support?

It supports IEEE 802.3ae 10GBASE-ER Ethernet and ITU-T G.691 OC-192/STM-64 IR-2 SONET/SDH standards.

What is the maximum transmission distance of this module?

Over single-mode fiber, the module reaches up to 40 kilometers at 10GBASE-ER and OC-192/STM-64 IR-2 rates.

Which fiber type and connector are required?

It requires ITU-T G.652 single-mode fiber and an LC duplex connector for all optical links.
