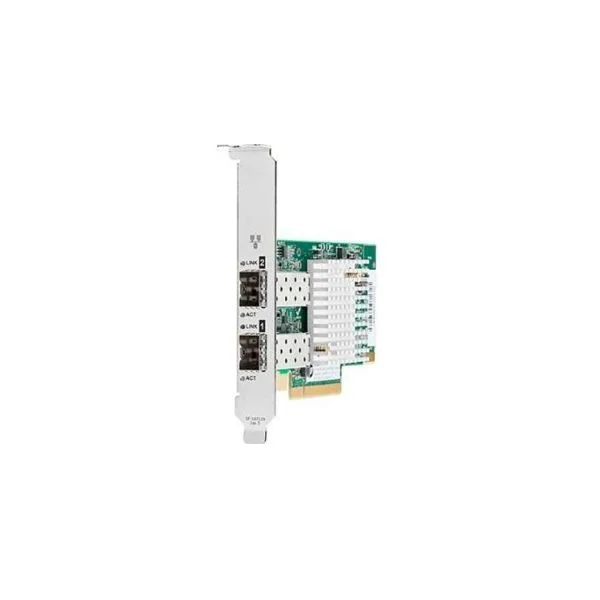

718904-B21

Specification Of 718904-B21

General
Device Type	Network adapter
Form Factor	Plug-in card
Interface (Bus) Type	PCI Express 2.0 x8
PCI Specification Revision	PCI 2.0
Miscellaneous
Compliant Standards	UL, BSMI, VCCI Class B ITE, BSMI CNS 13438 Class A, ICES-003, EN55024, CISPR 22, EN55022 Class B, WEEE, RoHS, FCC Part 15 B Class A, EN 61000-3-2:2006, EN 61000-3-3:2008
Environmental Parameters
Min Operating Temperature	41 °F
Max Operating Temperature	131 °F
Humidity Range Operating	5 - 95% (non-condensing)
Networking
Ports	10Gb Ethernet x 2
Connectivity Technology	Wired
Data Transfer Rate	10 Gbps
Data Link Protocol	10 Gigabit Ethernet
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP)
Features	VLAN support, Jumbo Frames support, PXE support, TCP Segmentation Offload (TSO)
Network Transport Protocol	TCP/IP, UDP/IP
Compatibility Information
Designed For	HPE ProLiant DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Special Server, DL380 Gen9 High Performance, DL380p Gen8 Special
Power Device
Power Consumption Operational	7.5 Watt
Expansion / Connectivity
Interfaces	2 x 10Gb Ethernet - SFP+
Compatible Slots	1 x PCI Express 2.0 x8
