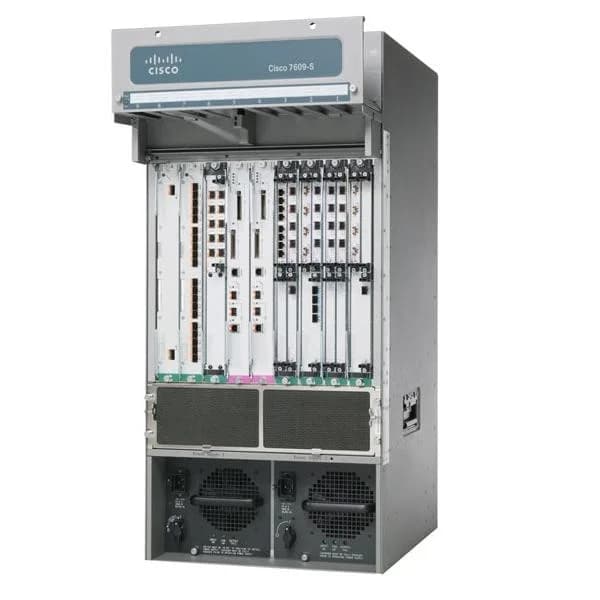

Name: Cisco 7609 Chassis, 9-slot, SUP7203B, Power Supply
Brand: Cisco
SKU: 7609-SUP7203B-PS
Price: 3154.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Question 1

What is the Cisco 7609-SUP7203B-PS chassis?

Accepted Answer

The Cisco 7609-SUP7203B-PS is a high-performance 9-slot modular router chassis equipped with a SUP7203B supervisor engine and integrated power supply. It delivers carrier-grade reliability, advanced routing, and scalable I/O capacity for enterprise and service-provider networks.

Question 2

Which supervisor engine comes with the Cisco 7609-SUP7203B-PS?

Accepted Answer

The Cisco 7609-SUP7203B-PS includes the SUP7203B supervisor engine. This module offers dual redundant Route Processors, 4 GB DRAM, 1 GB NVRAM, and high-speed forwarding performance.

Question 3

How many line cards can the Cisco 7609 chassis support?

Accepted Answer

The Cisco 7609 chassis supports up to nine modular line-card slots with three switch fabric slots. This design enables flexible deployment of Gigabit Ethernet, DWDM, and multiservice interface cards.

Question 4

What is the forwarding performance of the SUP7203B?

Accepted Answer

The SUP7203B delivers up to 60 million packets per second (mpps) forwarding. It also supports up to 256,000 hardware routes for robust scalability.

Question 5

What power supply is included with the 7609-SUP7203B-PS?

Accepted Answer

The 7609-SUP7203B-PS includes a redundant AC power supply rated at 1,720 watts. It provides N+1 redundancy and hot-swap capability for uninterrupted operations.

Question 6

Does the Cisco 7609 chassis support power redundancy?

Accepted Answer

Yes, the Cisco 7609 chassis supports dual hot-swappable power supplies in N+1 configuration. This ensures continuous operation during power-supply maintenance or failure.

Question 7

What types of line cards are compatible with the 7609 chassis?

Accepted Answer

The chassis is compatible with Cisco 7600 series WAN, Gigabit Ethernet, ATM, POS, and DWDM line cards. These options allow tailored bandwidth and interface configurations.

Question 8

What is the switching fabric capacity of the Cisco 7609?

Accepted Answer

The Cisco 7609 chassis with SUP7203B supports a total switching fabric capacity of up to 720 Gbps. This high backplane bandwidth ensures low-latency, non-blocking performance.

Question 9

Which routing protocols does the SUP7203B support?

Accepted Answer

The SUP7203B supports OSPF, BGP, EIGRP, IS-IS, MPLS, and multicast protocols. It also includes advanced features such as VPN, QoS, and traffic engineering.

Question 10

What management interfaces are available on SUP7203B?

Accepted Answer

The SUP7203B offers dual 10/100/1000 Ethernet management ports, an RJ-45 console port, and an auxiliary port. It also supports out-of-band management via Cisco IOS CLI and SNMP.

Question 11

What are the environmental specifications for the 7609 chassis?

Accepted Answer

The chassis operates from 32°F to 104°F (0°C to 40°C) and up to 90% non-condensing humidity. It meets NEBS Level 3 and ETSI environmental compliance standards.

Question 12

How do I install the Cisco 7609-SUP7203B-PS in my rack?

Accepted Answer

Mount the Cisco 7609 chassis in a standard 19-inch rack using the included brackets and hardware. Connect the power supply, install the SUP7203B and line cards, then power up and configure via the console port.

Question 13

What is the warranty for the Cisco 7609-SUP7203B-PS?

Accepted Answer

Cisco offers a limited lifetime hardware warranty for the 7609 chassis and SUP7203B with 90 days of software updates. Extended support and software subscriptions are available through Cisco SMARTnet.

Question 14

Can I upgrade the SUP7203B to a newer supervisor engine?

Accepted Answer

Yes, the SUP7203B can be upgraded to SUP720-3C or later supervisor engines with a compatible hardware migration kit. Ensure you validate firmware compatibility and order the correct upgrade kit.

Question 15

What is the typical power consumption of the chassis?

Accepted Answer

Under full load, the Cisco 7609 chassis with SUP7203B and line cards consumes approximately 1,200–1,500 watts. Power usage varies based on installed modules and traffic.

Question 16

Where can I purchase genuine Cisco 7609-SUP7203B-PS hardware?

Accepted Answer

You can purchase the Cisco 7609-SUP7203B-PS through authorized Cisco partners, resellers, or the Cisco Online Store. Always verify Cisco certification to ensure genuine hardware and support.

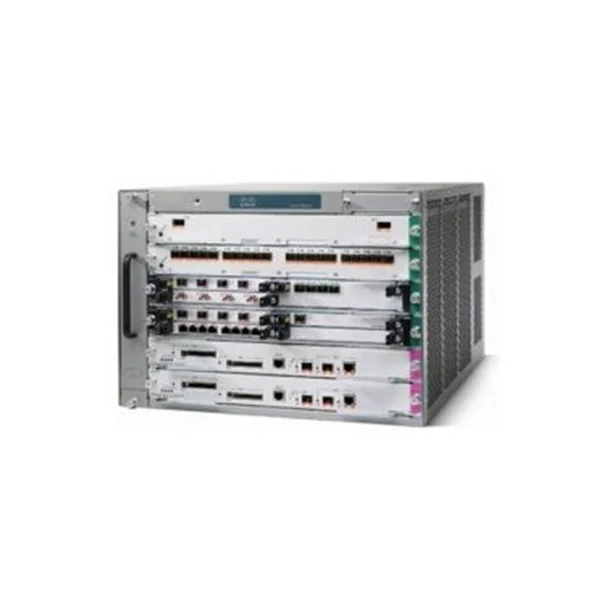

	7609-SUP7203B-PS	7609S-S32-10G-B-P	7606-VPN+-K9	7606S-SUP720B-R
5G Support	No	No	No	No
Architecture	Modular	Modular	Modular	Modular
Broadband	N/A	N/A	N/A	N/A
Built-in Security Features	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention	Firewall, Intrusion Prevention, Malware Protection	N/A
Compliance Standards	FCC, CE, RoHS	IEEE 802.3, FCC, CE	FCC, CE	RoHS / FCC / CE
Connectivity Type	Wired	Wired	Wired	Wired
Depth	N/A	N/A	N/A	N/A
Device Type	Supervisor Module	Switching Module	Router	Supervisor Engine
EMC	N/A	N/A	N/A	N/A
Ethernet Technology	10/100/1000	10G	10/100/1000	N/A
Expansion Slots	NIM / SM-X	SFP+	NIM, EHWIC	EHWIC / NIM
Features	VPN, High Availability, Modular, Redundancy	VPN / MPLS / QoS / Redundancy	VPN, Modular Expansion, Redundancy, Integrated Services	High Availability / Redundant Power / Modular Design / Advanced QoS
Firewall Features	Yes	Yes	Yes	N/A
Flash Memory	256 MB	N/A	512 MB	512 MB
Form Factor	Rack-mount Chassis	Modular	Chassis	Chassis
Height	N/A	N/A	N/A	N/A
High Availability Support	Supported	Supported	Supported	Supported
Integrated Services	Voice, Video, WAN Optimization	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization	N/A
Interface Ports	RJ-45 / SFP	SFP+	RJ-45, SFP	RJ-45 / SFP / SFP+
LAN Ports	N/A	N/A	Modular LAN	N/A
Management	Managed	Managed	Managed	Managed
Memory	4 GB	N/A	4 GB	4 GB
Modular Slots Available	3+ Slots	N/A	3+ Slots	3+ Slots
Network Protocols	IPv4, IPv6	IPv4, IPv6	TCP/IP, UDP, ICMP, IGMP	TCP/IP / UDP / SNMP
Power	350 W	N/A	350 Watts	450 Watts
Power Source	Redundant AC Power Supply	Chassis Redundant Power	Redundant AC Power Supply	Redundant
Product Name	7609-SUP7203B-PS	7609S-S32-10G-B-P	Cisco 7606-VPN+-K9	7606S-SUP720B-R
Product Type	Supervisor Module	Switching Module for Enterprise Routers	Enterprise Router	Chassis Supervisor
QoS Features	Supported	Supported	Supported	Supported
Remote Management	SSH, Telnet, SNMP	CLI / SNMP	SNMP, Telnet, SSH	CLI / Telnet / SSH / SNMP
Routing Protocols	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing
Safety	N/A	N/A	N/A	N/A
Speed/Capacity	Gigabit	10G per port	Gigabit	N/A
Stacking Capability	Yes	No	Yes	Yes
Telecom	N/A	N/A	N/A	N/A
Throughput Capacity	20 Gbps	10Gbps per port	2 Gbps	160 Gbps
Use Case	Enterprise	Enterprise	Enterprise / Branch	Enterprise
VPN Support	IPSec / SSL VPN / GRE	IPSec / SSL VPN	IPSec	N/A
WAN Configuration	Dual WAN	Modular WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN Ports	Modular WAN	Modular WAN	Modular WAN
Weight	N/A	N/A	N/A	N/A
Wi-Fi Standard	N/A	N/A	N/A	N/A
Width	N/A	N/A	N/A	N/A
Wireless Support	No	No	No	No
