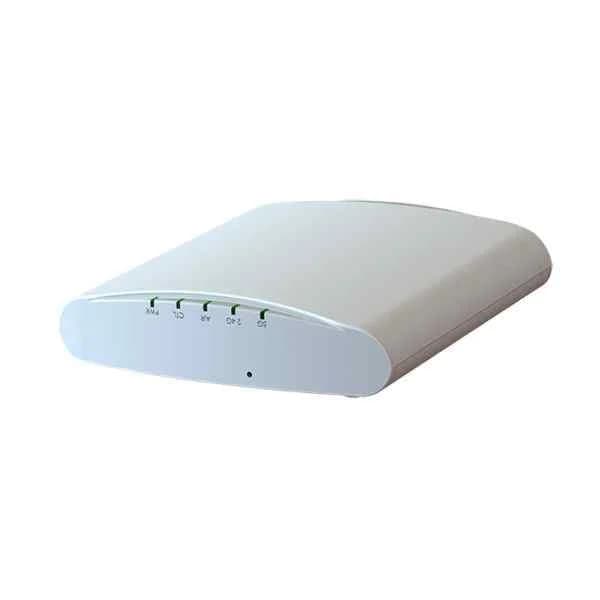

Name: ZoneFlex R310 802.11ac indoor AP, support 2.4GHz and 5GHz dual carrier frequency, 1x10/100/1000Mbps Ethernet port, 802.3af POE, 2*2:2, up to 867Mbps+300Mbps, BeamFlex. Without 12VDC power supply and POE module.
Brand: Ruckus
SKU: 901-R310-WW02
Availability: OutOfStock
Rating: 4.2 (5 reviews)

Question 1

What is the ZoneFlex R310 (SKU: 901-R310-WW02)?

Accepted Answer

The ZoneFlex R310 is an indoor 802.11ac dual-band access point supporting 2.4GHz and 5GHz, beamforming with BeamFlex technology, one 10/100/1000 Mbps Ethernet port, and 802.3af PoE.

Question 2

Which wireless speeds does the R310 support?

Accepted Answer

The R310 delivers up to 867 Mbps on 5GHz and 300 Mbps on 2.4GHz for a combined maximum throughput of 1,167 Mbps.

Question 3

Does the ZoneFlex R310 include a power supply or PoE injector?

Accepted Answer

No. The SKU 901-R310-WW02 ships without a 12 VDC power supply or PoE module. It requires an 802.3af PoE switch or compatible injector.

Question 4

What antenna design does the R310 use?

Accepted Answer

The R310 features Ruckus’s patented BeamFlex adaptive antenna array, dynamically steering signals to improve coverage and reduce interference.

Question 5

How do I mount the ZoneFlex R310 indoors?

Accepted Answer

The R310 includes a ceiling-mount bracket and optional wall-mount kit. Simply attach the bracket, align the AP, and snap it into place.

Question 6

Which PoE standard powers the R310?

Accepted Answer

The R310 is powered by 802.3af PoE, delivering both data and power over a single Ethernet cable up to 100 meters.

Question 7

Can I manage the R310 with Ruckus Cloud?

Accepted Answer

Yes. The ZoneFlex R310 is fully supported by Ruckus Cloud, SmartZone, and ZoneDirector controllers for centralized policy, analytics, and monitoring.

Question 8

What environment is the R310 best suited for?

Accepted Answer

Ideal for small-to-medium offices, hospitality venues, schools, and retail stores requiring reliable dual-band coverage and high density support.

Question 9

Does the R310 support Band Steering?

Accepted Answer

Yes. Band Steering automatically directs dual-band clients to 5GHz when available, optimizing load balancing and throughput.

Question 10

What security features are available on the ZoneFlex R310?

Accepted Answer

The R310 supports WPA2-PSK, WPA2-Enterprise with 802.1X, rogue AP detection, hotspot authentication, and guest network isolation.

Question 11

How many SSIDs can the R310 broadcast?

Accepted Answer

The R310 can broadcast up to eight unique SSIDs per radio (16 total), each with independent VLAN tagging and security settings.

Question 12

What is the warranty for the R310 (SKU: 901-R310-WW02)?

Accepted Answer

Ruckus provides a limited lifetime warranty on the ZoneFlex R310, covering hardware defects and firmware upgrades.

Question 13

How do I perform a factory reset on the R310?

Accepted Answer

Press and hold the reset button on the underside of the unit for 10 seconds until the LED flashes amber, then reboot to factory defaults.

Question 14

Is the R310 backward-compatible with 802.11a/b/g/n devices?

Accepted Answer

Yes. The R310 fully supports legacy 802.11a/b/g/n clients, automatically adjusting modulation and coding schemes for best performance.

Question 15

What is the operating temperature range of the ZoneFlex R310?

Accepted Answer

The R310 operates reliably between 0 °C and 40 °C (32 °F to 104 °F) and tolerates up to 95% non-condensing humidity.

Question 16

How does BeamFlex improve wireless performance on the R310?

Accepted Answer

BeamFlex uses a smart antenna array to optimize signal paths, enhance range, mitigate interference, and increase capacity in dense environments.

	901-R310-WW02	901-R710-WW00	901-R320-WW02	901-H320-WW00	901-R510-WW00
Product Type	Wireless Product	Wireless Product	Wireless Product	Wireless Product	Wireless Product
Wireless Type	Access Point	Access Point	Access Point	Access Point	Access Point
Wi-Fi Standard	Wi-Fi 6	Wi-Fi 6	Wi-Fi 6	Wi-Fi 6	Wi-Fi 6
Frequency Bands	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz/5GHz	2.4GHz / 5GHz
Data Rate	1Gbps	2.5Gbps	2.5Gbps	2.5Gbps	2.5Gbps
Max Range	100 meters	200 feet	100 meters	100 meters	100 meters
Coverage Area	2000 square feet	1500 square feet	2000 square feet	5000 square feet	2000 square feet
Connector Type	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45
Antenna Type	Omnidirectional	Omnidirectional	Omnidirectional	Omnidirectional	Omnidirectional
Antenna Gain	5dBi	5dBi	5dBi	5dBi	5dBi
MIMO Technology	MU-MIMO	MU-MIMO	MU-MIMO	MU-MIMO	MU-MIMO
Beamforming	Yes	Yes	Yes	Yes	Yes
Mounting Options	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount / Outdoor Mount
Power Supply	PoE	PoE	PoE	PoE	PoE
Mesh Networking	No	No	Yes	No	Yes
Ethernet Port	1x Gigabit	2x Gigabit	2x Gigabit	1x Gigabit	1x Gigabit
Max Number of Devices Supported	256	150	250	128	64
Protocols Supported	802.11a/b/g/n/ac/ax	802.11a/b/g/n/ac/ax	802.11a/b/g/n/ac/ax / Ethernet	802.11a/b/g/n/ac/ax	802.11a/b/g/n/ac/ax
Management Features	Cloud Management	Cloud Management	Cloud Management / SNMP	Cloud Management	Cloud Management / SNMP
Security Features	WPA2 / WPA3 / 802.1X	WPA2 / WPA3	WPA2 / WPA3 / 802.1X	WPA3	WPA2 / WPA3 / 802.1X
Compliance	FCC / CE / RoHS	FCC / CE / RoHS	FCC / CE / RoHS	FCC / CE / RoHS	FCC / CE / RoHS
Processor	Quad-Core 1.2GHz	N/A	Quad‑core 1.2GHz	Quad-Core 1.2GHz	Quad-Core 1.2GHz
Memory	512MB	N/A	1GB	512MB	2GB
Outdoor Use	No	No	No	No	Yes
Product Name	901-R310-WW02 Wireless Access Point	901-R710-WW00 High Performance Access Point	901-R320-WW02 Wireless Access Point	901-H320-WW00 Wireless Access Point	901-R510-WW00 Wireless Access Point
Height	1.5 inches	N/A	2.1 inches	2 inches	1.2 inches
Width	9 inches	N/A	9.1 inches	8 inches	9.0 inches
Depth	9 inches	N/A	9.1 inches	8 inches	9.0 inches
Weight	1.2 lbs	N/A	1.2 lbs	2 lbs	1.3 lbs
