AIR-ANT2547V-N
2.4 GHz 4dBi/5 GHz 7dBi Dual Band Omni Antenna, N connector
FEATURED DEAL
Name:
AIR-ANT2547V-N
- Description:
- 2.4 GHz 4dBi/5 GHz 7dBi Dual Band Omni Antenna, N connector
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Cisco
- GTIN:
- 818253936072
- Condition:
- Warranty:
- 3
- List Price:
$410.00
- Price:
$192.0053.2% off
Quantity:
1
Business price:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By

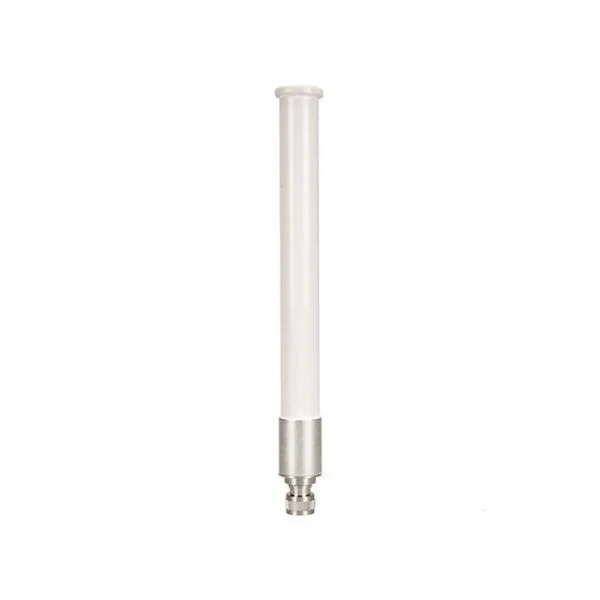

AIR-ANT2547V-N Overview
AIR-ANT2547V-N is a high-performance wireless antenna engineered for reliable dual-band connectivity in modern network deployments. Designed specifically for integration in enterprise and outdoor wireless networks, this antenna supports both 2.4GHz and 5GHz frequency bands and is compatible with Wi-Fi 5 and Wi-Fi 6 standards, ensuring data rates up to 1Gbps with enhanced signal reliability through features such as MU-MIMO and beamforming.
Built with an omnidirectional design and a defined gain of 5dBi, the AIR-ANT2547V-N delivers robust indoor and outdoor coverage, making it ideal for installation in large offices, campus environments, and challenging outdoor wireless networks. Its flexible mounting options, including wall and pole mounts, streamline deployment in various settings, ensuring continuous and high-speed connectivity in mission-critical applications.
AIR-ANT2547V-N price is $192.00, a 53.2% saving from the Cisco list price of $410.00. AIR-ANT2547V-N is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for AIR-ANT2547V-N for additional pricing. Browse the full Cisco Antenna 2.4 Ghz & 5 Ghz series or explore all Cisco products.
AIR-ANT2547V-N Specifications
- Product Type
- Wireless Product
- Wireless Type
- Antenna
- Wi-Fi Standard
- Wi-Fi 5 / Wi-Fi 6
- Frequency Bands
- 2.4GHz / 5GHz
- Data Rate
- 1Gbps
- Max Range
- N/A
- Coverage Area
- N/A
- Connector Type
- N-Type
- Antenna Type
- Omnidirectional
- Antenna Gain
- 5dBi
- MIMO Technology
- MU-MIMO
- Beamforming
- Yes
- Mounting Options
- Wall Mount / Pole Mount
- Power Supply
- N/A
- Mesh Networking
- N/A
- Ethernet Port
- N/A
- Max Number of Devices Supported
- N/A
- Protocols Supported
- 802.11a/b/g/n/ac/ax
- Management Features
- N/A
- Security Features
- N/A
- Compliance
- FCC / CE / RoHS
- Processor
- N/A
- Memory
- N/A
- Outdoor Use
- Yes
- Product Name
- AIR-ANT2547V-N
- Height
- N/A
- Width
- N/A
- Depth
- N/A
- Weight
- N/A
AIR-ANT2547V-N Use Case
Enterprise Office Wi-Fi Expansion with Dual-Band 4dBi/7dBi Omni Antenna
IT teams at mid-size corporations deploy the AIR-ANT2547V-N to extend 2.4 GHz/5 GHz coverage across multi-floor offices. Its 4 dBi/7 dBi dual-band omni pattern and N-connector compatibility deliver uniform signal strength, reduce dead zones and support seamless roaming for 200+ concurrent users, boosting productivity and reducing helpdesk tickets.
Outdoor Campus Hotspot Deployment for Education & Hospitality
Campus network engineers integrate the AIR-ANT2547V-N on rooftop mounts to provide high-performance Wi-Fi to students and guests across open quads and terraces. The weather-resistant enclosure, combined with dual-band 4 dBi/7 dBi gain, ensures stable 2.4 GHz and 5 GHz connections over a 360° footprint—elevating user satisfaction and maximizing enrollment in digital services.
Industrial IoT Backhaul for Smart Factory Sensor Networks
Automation specialists use the AIR-ANT2547V-N to link remote sensor clusters to central PLCs over dual-band channels. The 4 dBi/7 dBi omni coverage and rugged N-connector assembly guarantee reliable 2.4 GHz/5 GHz throughput in harsh environments, driving real-time data collection, predictive maintenance and a 15% uptime improvement.
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| AIR-ANT2547V-N |  AIR-ANT2524DW-R |  AIR-ANT2566D4M-R= |  AIR-ANT2588P3M-N= |  AIR-ANT5160V-R | |
|---|---|---|---|---|---|
| Product Type | Wireless Product | Wireless Product | Wireless Product | Antenna | Wireless Product |
| Wireless Type | Antenna | Antenna | Antenna | Antenna | Antenna |
| Wi-Fi Standard | Wi-Fi 5 / Wi-Fi 6 | Wi-Fi 6 | Wi-Fi 6 | N/A | N/A |
| Frequency Bands | 2.4GHz / 5GHz | 2.4GHz/5GHz | 2.4GHz / 5GHz | 2.4GHz/5GHz | 5GHz |
| Data Rate | 1Gbps | N/A | N/A | N/A | N/A |
| Max Range | N/A | N/A | N/A | N/A | N/A |
| Coverage Area | N/A | N/A | N/A | N/A | N/A |
| Connector Type | N-Type | N/A | N/A | N/A | N/A |
| Antenna Type | Omnidirectional | Omnidirectional | Omnidirectional | Omnidirectional | Directional |
| Antenna Gain | 5dBi | 5dBi | 5dBi | 8dBi | 8dBi |
| MIMO Technology | MU-MIMO | N/A | MU-MIMO | N/A | N/A |
| Beamforming | Yes | Yes | Yes | N/A | N/A |
| Mounting Options | Wall Mount / Pole Mount | Wall Mount | Wall Mount / Pole Mount | Outdoor Mount | Outdoor Mount |
| Power Supply | N/A | N/A | N/A | N/A | N/A |
| Mesh Networking | N/A | N/A | N/A | N/A | N/A |
| Ethernet Port | N/A | N/A | N/A | N/A | N/A |
| Max Number of Devices Supported | N/A | N/A | N/A | N/A | N/A |
| Protocols Supported | 802.11a/b/g/n/ac/ax | 802.11ax | 802.11a/b/g/n/ac/ax | N/A | N/A |
| Management Features | N/A | N/A | N/A | N/A | N/A |
| Security Features | N/A | N/A | N/A | N/A | N/A |
| Compliance | FCC / CE / RoHS | FCC/CE/RoHS | FCC / CE / RoHS | FCC / CE / RoHS | FCC / CE / RoHS |
| Processor | N/A | N/A | N/A | N/A | N/A |
| Memory | N/A | N/A | N/A | N/A | N/A |
| Outdoor Use | Yes | Yes | Yes | Yes | Yes |
| Product Name | AIR-ANT2547V-N | AIR-ANT2524DW-R | AIR-ANT2566D4M-R= | AIR-ANT2588P3M-N= | AIR-ANT5160V-R |
| Height | N/A | N/A | N/A | N/A | N/A |
| Width | N/A | N/A | N/A | N/A | N/A |
| Depth | N/A | N/A | N/A | N/A | N/A |
| Weight | N/A | N/A | N/A | N/A | N/A |
| Wi‑Fi Standard |
Reviews & Ratings
A
Ayesha Khan
5
Stable signal across both bands.
L
Lars Nystr'm
5
Good antenna for office deployments.
D
Diana Cole
5
No issues since installation.
I
Imran Latif
4
Satisfied with overall coverage.
Questions & Answers
What is the AIR-ANT2547V-N antenna?
The AIR-ANT2547V-N is a dual-band omni-directional antenna offering 2.4 GHz at 4 dBi and 5 GHz at 7 dBi gain with an N-female connector.
Which frequency bands does this antenna support?
This antenna supports IEEE 802.11 b/g/n on 2.4 GHz and 802.11 a/n/ac on 5 GHz, covering both popular Wi-Fi bands.
What gain does the AIR-ANT2547V-N provide?
It delivers 4 dBi gain on the 2.4 GHz band and 7 dBi gain on the 5 GHz band, optimizing signal strength and coverage.
What radiation pattern does the antenna use?
The antenna features an omni-directional radiation pattern, providing 360° horizontal coverage for consistent network performance.
What connector type is included?
It comes with a standard N-female connector, ensuring compatibility with most outdoor APs, bridges, and radios.
Is the AIR-ANT2547V-N weatherproof for outdoor use?
Yes, it has a UV-stable radome and IP65-rated weatherproofing, providing robust protection against rain and dust.
What is the antenna’s impedance?
The antenna maintains a 50 Ω impedance, matching industry-standard wireless equipment for minimal signal reflection.
What is the VSWR specification?
The AIR-ANT2547V-N has a VSWR of ≤1.5:1 across both bands, ensuring efficient signal transmission and reduced losses.
What are the physical dimensions and weight?
It measures 410 mm in length, 34 mm in diameter, and weighs approximately 250 g, making it lightweight and easy to mount.
How do I install the antenna?
Mount it on a standard antenna mast using the included U-bolt clamp, align vertically, and tighten to 10 Nm torque for secure installation.
Which devices are compatible with this antenna?
It is compatible with any 2.4 GHz/5 GHz wireless AP, router, bridge or CPE that accepts an N-male connector.
What are the typical use cases?
Ideal for outdoor Wi-Fi hotspots, point-to-multipoint links, campus coverage, and IoT gateway deployments.
Does the antenna require grounding?
Yes, for lightning protection, ground the mounting bracket according to local electrical codes using a grounding cable.
Can it be used indoors?
Yes, while designed for outdoor durability, it can be deployed indoors for enhanced dual-band coverage in large venues.
Which cables and adapters are recommended?
Use low-loss LMR-400 or equivalent cables and high-quality N-male to RP-SMA adapters to maintain signal integrity.
What warranty and support are provided?
The AIR-ANT2547V-N includes a one-year manufacturer’s warranty and lifetime online technical support.
