How does the K-Domain config affect regulatory compliance?

The configurable K-Domain radio setting ensures compliance with local regulations by dynamically limiting transmit power and channel usage according to the selected country profile.

Which Cisco controllers are compatible with this AP?

It is compatible with Cisco Catalyst 9800 Series, 3504, 5520, 8540 Wireless Controllers and can also operate in Cisco Mobility Express mode for controller-less deployments.

What power options does the AIR-AP4800-K-K9C support?

It supports 802.3at PoE+ up to 30 W or 802.3bt PoE++ up to 60 W for full mGig and analytics functions, plus optional local AC power.

How do I configure and deploy the AIR-AP4800-K-K9C?

Deploy using Cisco DNA Center or on-premises Wireless Controller GUI; use the Plug-and-Play wizard for zero-touch provisioning and automated policy enforcement.

What security features are integrated in this access point?

It provides Cisco CleanAir for spectrum security, TrustSec for role-based access control, WPA3 encryption, and built-in rogue AP detection and mitigation.

Can the AIR-AP4800-K-K9C be used for location services?

Yes, it supports Cisco DNA Spaces and Bluetooth Low Energy (BLE) beaconing for indoor wayfinding, asset tracking, and location-based services.

What is the client capacity per access point?

Each AP can support up to 200 concurrent client devices, optimized by Cisco’s Client Link and Airtime Fairness technologies.

Which firmware version is recommended for optimal performance?

Cisco IOS XE 17.9 or later is recommended to leverage the latest Wave 2 features, analytics capabilities, and security patches.

What warranty and support options are available?

It includes a limited lifetime hardware warranty and 90-day software updates; Cisco SMARTnet and DNA subscription services are available for enhanced support.

What mounting and environmental specifications apply?

The AP supports ceiling or wall mounting, operates between 0°C to 40°C, and meets UL2043 plenum requirements for indoor use.

How is licensing handled for the AIR-AP4800-K-K9C?

The hardware comes with a base software license; Cisco DNA Essentials or Advantage subscriptions unlock analytics, automation, and advanced security features.

Where can I purchase the Cisco AIR-AP4800-K-K9C?

This access point is available through authorized Cisco partners and distributors; request SKU AIR-AP4800-K-K9C in the K-Domain configuration for local compliance.

FEATURED DEAL

Name:

AIR-AP4800-K-K9C

Name: 802.11ac W2 Analytics AP w/CA; 43:3; Location; mGig -K Domain, Configurable
Brand: Cisco
SKU: AIR-AP4800-K-K9C
Price: 2812.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Description:: 802.11ac W2 Analytics AP w/CA; 43:3; Location; mGig -K Domain, Configurable
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Cisco
GTIN:: 889728136662
Condition:
Warranty:: 3
Price:: $2,812.00

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

air-ap4800-k-k9c 802.11ac w2 analytics ap w/ca; 43:3; location; mgig -k domain, configurable

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

AIR-AP4800-K-K9C

802.11ac W2 Analytics AP w/CA; 43:3; Location; mGig -K Domai...

$2,812.00

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

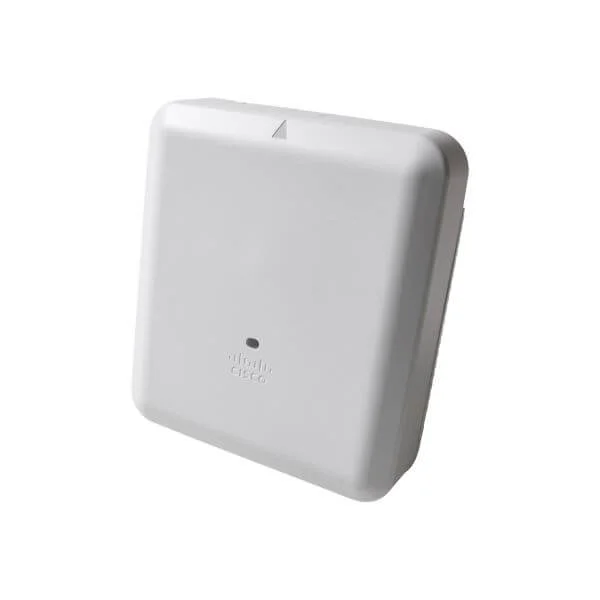

AIR-AP4800-K-K9C Overview

AIR-AP4800-K-K9C is a high-performance wireless access point engineered for modern enterprise networks. Designed to operate on both 2.4GHz and 5GHz frequency bands and compliant with the Wi‑Fi 5 (802.11ac Wave 2) standard, this access point delivers data rates of up to 5Gbps with advanced connectivity features like MU-MIMO and beamforming to optimize network efficiency in dense environments.

This indoor access point offers flexible installation options including ceiling and wall mounting, while powering through simplified PoE connectivity. Ideal for large offices and enterprise settings, the AIR-AP4800-K-K9C also integrates robust security protocols such as WPA2, WPA3, and 802.1X, and adheres to FCC, CE, and RoHS compliance standards to ensure a secure and reliable wireless infrastructure.

AIR-AP4800-K-K9C price is $2,812.00. AIR-AP4800-K-K9C is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for AIR-AP4800-K-K9C for additional pricing. Browse the full Cisco 4800 Access Point series or explore all Cisco products.

AIR-AP4800-K-K9C Specifications

Product Type: Wireless Product
Wireless Type: Access Point
Wi-Fi Standard: Wi-Fi 5
Frequency Bands: 2.4GHz / 5GHz
Data Rate: Up to 5Gbps
Max Range: N/A
Coverage Area: N/A
Connector Type: RJ-45
Antenna Type: Omnidirectional
Antenna Gain: N/A
MIMO Technology: MU-MIMO
Beamforming: Yes
Mounting Options: Ceiling Mount / Wall Mount
Power Supply: PoE
Mesh Networking: No
Ethernet Port: 1x Gigabit
Max Number of Devices Supported: N/A
Protocols Supported: 802.11a/b/g/n/ac
Management Features: On-Premises
Security Features: WPA2 / WPA3 / 802.1X
Compliance: FCC / CE / RoHS
Processor: N/A
Memory: N/A
Outdoor Use: No
Product Name: Cisco AIR-AP4800-K-K9C
Height: N/A
Width: N/A
Depth: N/A
Weight: N/A

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	AIR-AP4800-K-K9C	AIR-AP4800-E-K9	AIR-AP4800-S-K9C	AIR-AP4800-Z-K9C	AIR-AP4800-A-K9
Antenna Gain	N/A	N/A	N/A	N/A	N/A
Antenna Type	Omnidirectional	Omnidirectional	Internal Omnidirectional	Omnidirectional	Internal Omnidirectional
Beamforming	Yes	Yes	Yes	Yes	Yes
Compliance	FCC / CE / RoHS	FCC / CE / RoHS	FCC, CE, RoHS	FCC / CE / RoHS	FCC / CE / RoHS
Connector Type	RJ-45	RJ-45	RJ-45	RJ-45	RJ-45
Coverage Area	N/A	N/A	N/A	N/A	N/A
Data Rate	Up to 5Gbps	Up to 5.2Gbps	Up to 2.6Gbps	3.2Gbps	Up to 2.5Gbps
Depth	N/A	N/A	N/A	N/A	9.7 inches
Ethernet Port	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit
Frequency Bands	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz
Height	N/A	N/A	N/A	N/A	3.4 inches
MIMO Technology	MU-MIMO	MU-MIMO	MU-MIMO	MU-MIMO	MU-MIMO
Management Features	On-Premises	Cloud Management / On-Premises / SNMP	On-Premises, SNMP	On-Premises / SNMP	Cloud Management / On-Premises / SNMP
Max Number of Devices Supported	N/A	N/A	N/A	N/A	N/A
Max Range	N/A	N/A	N/A	N/A	N/A
Memory	N/A	N/A	N/A	N/A	N/A
Mesh Networking	No	No	No	No	No
Mounting Options	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount, Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount
Outdoor Use	No	No	No	No	No
Power Supply	PoE	PoE	PoE	PoE	PoE
Processor	N/A	N/A	N/A	N/A	N/A
Product Name	Cisco AIR-AP4800-K-K9C	AIR-AP4800-E-K9	Cisco AIR-AP4800-S-K9C	AIR-AP4800-Z-K9C	AIR-AP4800-A-K9
Product Type	Wireless Product	Wireless Product	Wireless Access Point	Wireless Access Point	Wireless Product
Protocols Supported	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac
Security Features	WPA2 / WPA3 / 802.1X	WPA2 / 802.1X	WPA2, WPA3, 802.1X	WPA2 / WPA3 / 802.1X	WPA2 / 802.1X
Weight	N/A	N/A	N/A	N/A	5.5 lbs
Wi-Fi Standard	Wi-Fi 5	Wi-Fi 5	Wi-Fi 5	Wi-Fi 5	802.11ac Wave 2
Width	N/A	N/A	N/A	N/A	9.7 inches
Wireless Type	Access Point	Access Point	Access Point	Access Point	Access Point
Wi‑Fi Standard

Reviews & Ratings

Travis Sullivan

Configurable 4800 model delivers powerful Wave 2 performance.

Ulric Whitfield

mGig uplink ensures consistent high throughput.

Vaughn Mitchell

CleanAir maintains wireless stability in dense environments.

Wade Hayes

Strong enterprise coverage and smooth roaming.

Xander Crawford

Reliable analytics and location services integration.

Zion Lawson

Professional Cisco solution with dependable uptime.

Questions & Answers

What is the Cisco AIR-AP4800-K-K9C 802.11ac W2 Analytics AP?

The Cisco AIR-AP4800-K-K9C is a Wave 2 802.11ac access point with integrated Cisco DNA Analytics Services, multi-gigabit Ethernet (mGig) and configurable K-Domain radio compliance for high-performance indoor deployments.

Which analytics capabilities does the AIR-AP4800-K-K9C offer?

It includes Cisco DNA Analytics (formerly W2), providing real-time location tracking, user and device behavior insights, and RF spectrum analysis to optimize network performance and security.

Does the AIR-AP4800-K-K9C support multi-gigabit Ethernet?

Yes, the AP features a 2.5 GbE mGig port that delivers all available AP throughput over existing Cat 5e cabling and supports fallback to 1 GbE or 100 Mbps.

What are the maximum data rates and spatial streams?

This AP supports 4x4:4 spatial streams on 5 GHz and 2.4 GHz bands with combined aggregate data rates up to 2.5 Gbps (1.733 Gbps on 5 GHz and 800 Mbps on 2.4 GHz).
