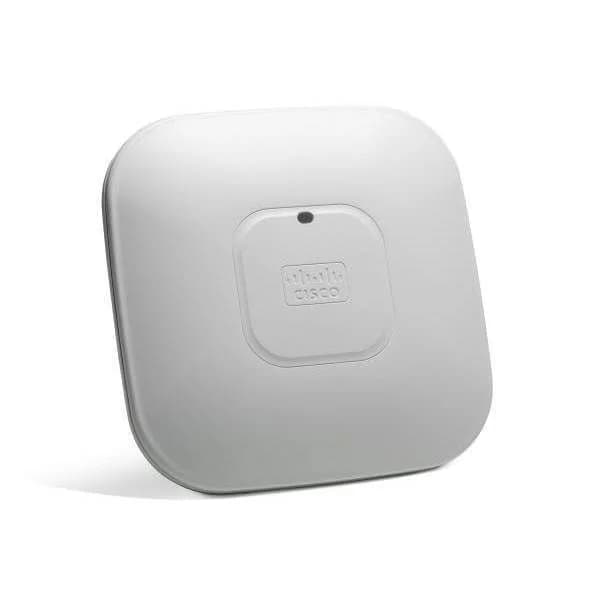

Name: 802.11n Auto 5APs; 3x4:3SS; Mod; Int Ant; C RegDomain
Brand: Cisco
SKU: AIR-SAP2602I-CK9-5
Availability: OutOfStock
Rating: 4.2 (5 reviews)

Question 1

What is the Cisco AIR-SAP2602I-CK9-5 802.11n Access Point?

Accepted Answer

The Cisco AIR-SAP2602I-CK9-5 is a standalone, dual-band 802.11n wireless access point featuring integrated antennas, 3×4:3 MIMO, and a five-AP license within the C regulatory domain.

Question 2

What key features does the AIR-SAP2602I-CK9-5 offer?

Accepted Answer

Key features include dual-band 2.4/5 GHz support, 3×4:3 spatial streams, internal omnidirectional antennas, up to 450 Mbps per radio, Dynamic Channel Selection, transmit power control, rogue AP detection, and WPA2 security.

Question 3

Which wireless standards and frequencies does the AIR-SAP2602I-CK9-5 support?

Accepted Answer

It supports IEEE 802.11n on both 2.4 GHz and 5 GHz bands and is fully backward-compatible with 802.11a/b/g clients.

Question 4

What data throughput speeds can the AIR-SAP2602I-CK9-5 deliver?

Accepted Answer

The access point delivers up to 450 Mbps per radio in 802.11n mode and up to 900 Mbps of combined dual-band throughput.

Question 5

How many spatial streams does the AIR-SAP2602I-CK9-5 support?

Accepted Answer

It supports up to three spatial streams (3×4:3 MIMO), enhancing both data rates and coverage.

Question 6

What is the regulatory domain “C” in AIR-SAP2602I-CK9-5?

Accepted Answer

Regulatory Domain C configures the AP to comply with United States and Canada frequency channels and transmit-power limits for legal regional operation.

Question 7

Does the AIR-SAP2602I-CK9-5 support Power over Ethernet?

Accepted Answer

Yes, it supports IEEE 802.3af Power over Ethernet and also offers an optional local AC power adapter for installations without PoE.

Question 8

Which antenna options does the AIR-SAP2602I-CK9-5 provide?

Accepted Answer

The unit includes integrated omnidirectional antennas with 3 dBi gain on 2.4 GHz and 4 dBi on 5 GHz; there are no external antenna connectors.

Question 9

What security features are available on the AIR-SAP2602I-CK9-5?

Accepted Answer

It provides WPA2-PSK and WPA2-Enterprise with 802.1X, AES encryption, rogue AP detection, secure management via HTTPS/SSH, and VLAN assignment per SSID.

Question 10

How many SSIDs and VLANs can be configured?

Accepted Answer

You can configure up to 16 SSIDs, each mapped to its own VLAN or security policy for granular traffic segmentation.

Question 11

What management and configuration options are available?

Accepted Answer

Management options include a built-in web GUI, Cisco CLI, SNMP v2/v3, and integration with Cisco Prime Infrastructure for centralized control.

Question 12

How do I physically install and mount the AIR-SAP2602I-CK9-5?

Accepted Answer

The AP ships with a universal mounting bracket for T-bar ceilings, drywall, or flat-surface installations; simply attach the bracket and snap the AP into place.

Question 13

What deployment scenarios is this access point ideal for?

Accepted Answer

It is ideal for small to medium enterprises, branch offices, retail stores, and hospitality environments requiring reliable indoor Wi-Fi coverage.

Question 14

What warranty and support options are provided?

Accepted Answer

Cisco provides a one-year limited hardware warranty with next-business-day replacement; extended support and software updates are available via Cisco SMARTnet.

Question 15

Can I upgrade the AIR-SAP2602I-CK9-5 firmware?

Accepted Answer

Yes, firmware updates can be downloaded from Cisco’s support portal and applied via the web GUI or CLI to access new features and security fixes.

Question 16

What are the environmental and physical specifications?

Accepted Answer

The AP measures 200 × 197 × 37 mm, weighs 600 g, operates at 0 °C–40 °C with 10%–90% non-condensing humidity, and meets UL, FCC and CE safety and EMI standards.

	AIR-SAP2602I-CK9-5	AIR-SAP2602E-NK9-5	AIR-CAP2602E-K-K9	AIR-SAP2602I-E-K9	AIR-SAP2602E-CK9-5
Product Type	Wireless Access Point	Wireless Access Point	Wireless Product	Wireless Access Point	Wireless Product
Wireless Type	Access Point	Access Point	Access Point	Access Point	Access Point
Wi-Fi Standard	Wi-Fi 6	Wi-Fi 5	802.11a/b/g/n/ac	Wi-Fi 5	Wi-Fi 6
Frequency Bands	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz / 5GHz	2.4GHz/5GHz	2.4GHz / 5GHz
Data Rate	2.5Gbps	1Gbps	Up to 1.3Gbps	1.3Gbps	2.5Gbps
Max Range	100 meters	N/A	N/A	N/A	100 meters
Coverage Area	N/A	N/A	N/A	N/A	2,500 square feet
Connector Type	N/A	RJ-45	N/A	RJ-45	RJ-45
Antenna Type	Omnidirectional	Omnidirectional	Internal Omni-directional	Internal Omnidirectional	Omnidirectional
Antenna Gain	5dBi	5dBi	N/A	N/A	5dBi
MIMO Technology	MU-MIMO	MU-MIMO	MU-MIMO	MU-MIMO	MU-MIMO
Beamforming	Yes	Yes	Yes	Yes	Yes
Mounting Options	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount / Wall Mount	Ceiling Mount/Wall Mount	Ceiling Mount, Wall Mount
Power Supply	PoE	PoE	PoE	PoE	PoE
Mesh Networking	No	No	No	N/A	No
Ethernet Port	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit	1x Gigabit
Max Number of Devices Supported	N/A	N/A	N/A	N/A	256
Protocols Supported	802.11a/b/g/n/ac/ax	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac	802.11a/b/g/n/ac/ax
Management Features	On-Premises / SNMP	Cloud Management / On-Premises	Cloud Management / SNMP	Cloud Management/On-Premises	Cloud Management, On-Premises, SNMP
Security Features	WPA2 / WPA3	WPA2 / WPA3 / 802.1X	WPA2 / WPA3 / 802.1X	WPA2/WPA3/802.1X	WPA2, WPA3, 802.1X
Compliance	FCC / CE / RoHS	FCC / CE / RoHS	FCC / CE / RoHS	FCC/CE/RoHS	FCC, CE, RoHS
Processor	N/A	N/A	N/A	N/A	N/A
Memory	N/A	N/A	N/A	N/A	N/A
Outdoor Use	No	No	No	No	No
Product Name	AIR-SAP2602I-CK9-5 Wireless Access Point	AIR-SAP2602E-NK9-5 Wireless Access Point	AIR-CAP2602E-K-K9	AIR-SAP2602I-E-K9	AIR-SAP2602E-CK9-5
Height	N/A	N/A	N/A	N/A	N/A
Width	N/A	N/A	N/A	N/A	N/A
Depth	N/A	N/A	N/A	N/A	N/A
Weight	N/A	N/A	N/A	N/A	N/A
