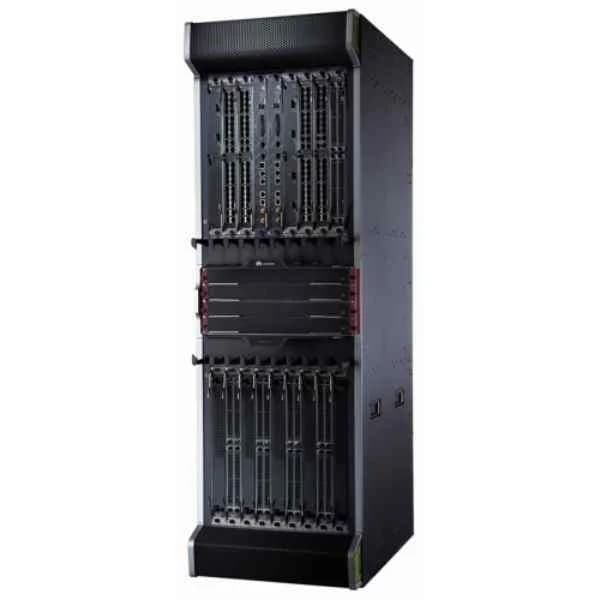

AntiDDoS8160-BASE-DC-200

AntiDDoS8160 Specifications

Interfaces and performance

Throughput

Up to 1,440 Gbit/s

Throughput/Slot

Up to 160 Gbit/s

Mitigation Rate/Slot

Up to 60 Mpps

Latency

80 μs

Expansion Slots

16

Expansion LPU

FW-LPUF-120, 2 sub-slots
FW-LPUF-240, 2 sub-slots

Expansion Interfaces

24 x GE (SFP); 5 x 10 GE (SFP+); 6 x 10 GE (SFP+); 12 x 10 GE (SFP+); 1 x 40 GE (CFP); 1 x 100 GE (CFP)

Dimensions

Height x Width x Depth

1,420 mm x 442 mm x 650 mm (32U)

Weight

94.4 kg (empty), 233.9 kg (full)

Power and Environment

Power Supply

Rated input voltage:
DC: -48V
AC: 175V to 264V; 50 Hz/60 Hz
Maximum input voltage range:
DC: -72V to -38V
AC: 90V to 264V; 50 Hz/60 Hz

Power Consumption

6 x FW-LPUF-240 + 9 x ADS-SPUD-B + 18 x ADS-SPC-80-01:
DC: 7,387W (avg.), 8,930W (max.)
AC: 7,858W (avg.), 9,500W (max.)

Power Redundancy

DC: 8 hot-swappable PEM modules
AC: 8 PEM modules + 2 external AC power chassis

Operating Temperature

0°C to 45°C (long-term), -5°C to 50°C (short-term)

Storage Temperature

-40°C to 70°C

Operating Humidity

5% RH to 85% RH, non-condensing (long-term), 5% RH to 95% RH, non-condensing (short-term)

Storage Humidity

0% RH to 95% RH

Certifications

Safety Certifications

Electro Magnetic Compatibility (EMC) certification
CB, Rohs, FCC, MET, C-tick, and VCCI certification
