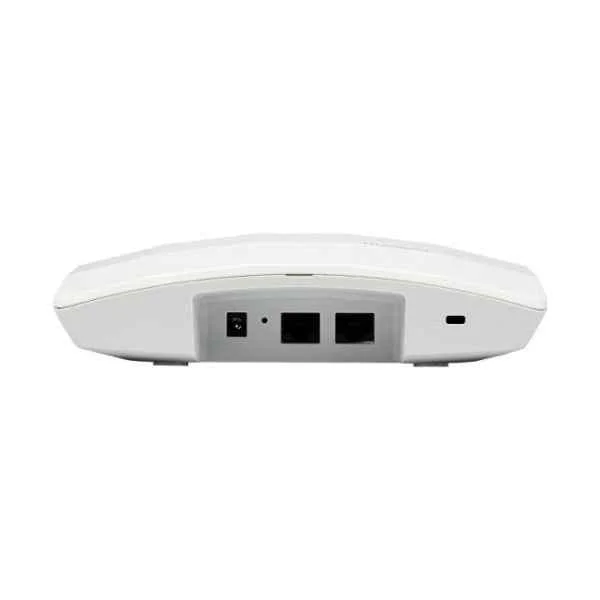

Name: AP5010DN-AGN-FAT-DC
Brand: Huawei
Availability: InStock

AP5010DN-AGN-FAT-DC Specification

AP5010DN-AGN-FAT-DC Specifications
Technical
Dimensions (H W D)	1.9 in. x 7 in. x 7 in. (50 mm x 180 mm x 180 mm)
Weight	0.8 lb. (0.4 kg)
System memory	128 MB DDR2 32 MB flash memory
Power
Power Adapter	AC/DC adapter
Power input	DC 12V ± 10% POE Power: -48V DC. PoE function complies with IEEE 802.3af and 802.3at
Maximum power consumption	9.5W Note: Maximum power consumption depends on local laws and regulations
Environment
Operating temperature	14oF to 122oF (-10oC to 50oC)
Storage temperature	-40oF to 158oF (-40oC to 70oC)
Humidity	5% to 95% (Non-condensing)
Waterproof grade	IP31
Altitude	-196 ft. to 16,404.1 ft. (-60m to 5,000m)
Radio
Antenna Type	Built-in
Antenna Gain	·2.4 GHz: 4 dBi ·5 GHz: 5 dBi
Maximum Number of Concurrent Users	128
Maximum Transmit Power	17 dBm You can adjust the transmit power to the maximum of 20 dB in 1 dB steps Note: Actual transmit power depends on local laws and regulations
Maximum Number of Non-overlapping Channels	2.4 GHz 802.11b/g ·20 MHz: 3 802.11n ·20 MHz: 3 ·40 MHz: 1 5 GHz 802.11a ·20 MHz: 5 802.11n ·20 MHz: 5 ·40 MHz: 2 Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status
Channel Rates	802.11b: 1, 2, 5.5, and 11 Mbit/s
	802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
	802.11n data rate:2.4 GHz and 5 GHz
	GI2 = 800 ns			GI = 400 ns
	20 MHz (Mbit/s)	40 MHz (Mbit/s)		20 MHz (Mbit/s)		40 MHz (Mbit/s)
	6.5 @ MCS10	13.5 @ MCS0		7.2 @ MCS0		15 @ MCS0
	13 @ MCS1	27 @ MCS1		14.4 @ MCS1		30 @ MCS1
	19.5 @ MCS2	40.5 @ MCS2		21.7 @ MCS2		45 @ MCS2
	26 @ MCS3	54 @ MCS3		28.9 @ MCS3		60 @ MCS3
	39 @ MCS4	81 @ MCS4		43.3 @ MCS4		90 @ MCS4
	52 @ MCS5	108 @ MCS5		57.8 @ MCS5		120 @ MCS5
	58.5 @ MCS6	121.5 @ MCS6		65 @ MCS6		135 @ MCS6
	65 @ MCS7	135 @ MCS7		72.2 @ MCS7		150 @ MCS7
	13 @ MCS8	27 @ MCS8		14.4 @ MCS8		30 @ MCS8
	26 @ MCS9	54 @ MCS9		28.9 @ MCS9		60 @ MCS9
	39 @ MCS10	81 @ MCS10		43.3 @ MCS10		90 @ MCS10
	52 @ MCS11	108 @ MCS11		57.8 @ MCS11		120 @ MCS11
	78 @ MCS12	162 @ MCS12		86.7 @ MCS12		180 @ MCS12
	104 @ MCS13	216 @ MCS13		115.6 @ MCS13		240 @ MCS13
	117 @ MCS14	243 @ MCS14		130 @ MCS14		270 @ MCS14
	130 @ MCS15	270 @ MCS15		144.4 @ MCS15		300 @ MCS15
	Note: Modulation Coding Scheme (MCS) index determines: Spatial flow quantity Modulation Coding rate Data rate Guard Interval (GI) indicates the period in nanoseconds the radio listens for between packets
Receiver Sensitivity	2.4 GHz 802.11b (CCK) -96 dBm @ 1 Mbit/s -91 dBm @ 2 Mbit/s -92 dBm @ 5.5 Mbit/s -88 dBm @ 11 Mbit/s		2.4 GHz 802.11g (Non-HT20) -91 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -89 dBm @ 12 Mbit/s -86 dBm @ 18 Mbit/s -83 dBm @ 24 Mbit/s -80 dBm @ 36 Mbit/s -76 dBm @ 48 Mbit/s -74 dBm @ 54 Mb/s		2.4 GHz 802.11n (HT20) -91 dBm @ MCS0 -88 dBm @ MCS1 -86 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -74 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -88 dBm @ MCS9 -86 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15		2.4 GHz 802.11n (HT40) -88 dBm @ MCS0 -85 dBm @ MCS1 -83 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -85 dBm @ MCS9 -82 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15
	5 GHz 802.11a (Non-HT20) -89 dBm @ 6 Mbit/s -88 dBm @ 9 Mbit/s -86 dBm @ 12 Mbit/s -83 dBm @ 18 Mbit/s -80 dBm @ 24 Mbit/s -77 dBm @ 36 Mbit/s -73 dBm @ 48 Mbit/s -71 dBm @ 54 Mbit/s		5 GHz 802.11n (HT20) -90 dBm @ MCS0 -85 dBm @ MCS1 -84 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -88 dBm @ MCS8 -88 dBm @ MCS9 -85 dBm @ MCS10 -82 dBm @ MCS11 -79 dBm @ MCS12 -74 dBm @ MCS13 -73 dBm @ MCS14 -71 dBm @ MCS15		5 GHz 802.11n (HT40) -85 dBm @ MCS0 -82 dBm @ MCS1 -79 dBm @ MCS2 -75 dBm @ MCS3 -72 dBm @ MCS4 -68 dBm @ MCS5 -66 dBm @ MCS6 -64 dBm @ MCS7 -87 dBm @ MCS8 -84 dBm @ MCS9 -81 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -71 dBm @ MCS13 -70 dBm @ MCS14 -68 dBm @ MCS15
