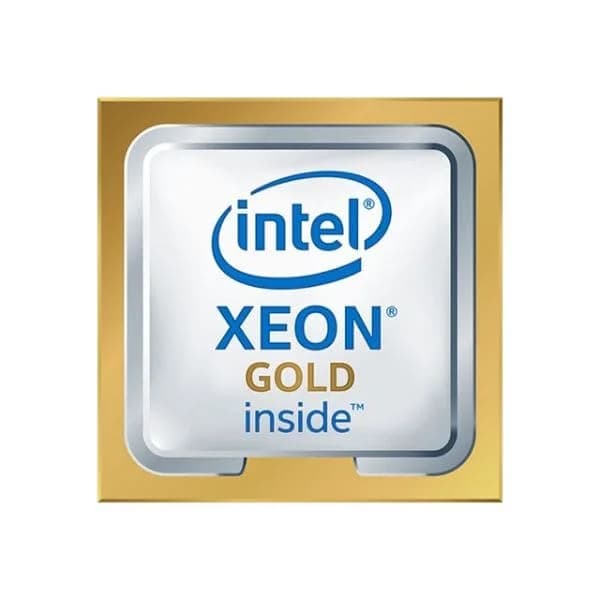

Name: SVRWS XP CASCADE LAKE SP 20C 6230T 2.1G 27.5M 125W - MM#999FW4
Brand: Intel
SKU: CD8069504283704
Availability: OutOfStock
Rating: 4.2 (5 reviews)

Question 1

What are the key specifications of the Intel Xeon Cascade Lake SP 6230T (MM#999FW4)?

Accepted Answer

The Intel Xeon Cascade Lake SP 6230T features 20 cores and 40 threads, 2.1 GHz base frequency (up to 3.9 GHz turbo), 27.5 MB L3 cache, 125 W TDP, and uses the LGA 3647 socket.

Question 2

How many cores and threads does the Cascade Lake SP 6230T provide?

Accepted Answer

It provides 20 physical cores and 40 logical threads via Intel Hyper-Threading Technology.

Question 3

What are the base and maximum turbo frequencies of this processor?

Accepted Answer

The base clock is 2.1 GHz, with Intel Turbo Boost 2.0 raising single-core speeds up to 3.9 GHz.

Question 4

What is the size of the L3 cache on the 6230T?

Accepted Answer

This CPU includes a shared 27.5 MB L3 cache to accelerate data access across cores.

Question 5

What is the thermal design power (TDP) of the 6230T?

Accepted Answer

The processor has a TDP of 125 W, balancing performance and power efficiency.

Question 6

Which socket is required for the Cascade Lake SP 6230T?

Accepted Answer

It requires the Intel LGA 3647 socket for server motherboards.

Question 7

What memory types and maximum capacity are supported by this CPU?

Accepted Answer

It supports six-channel DDR4-2933 MHz memory, up to 1 TB per socket when fully populated.

Question 8

Does the 6230T support Intel Hyper-Threading Technology?

Accepted Answer

Yes, it supports Hyper-Threading, allowing 40 simultaneous threads.

Question 9

Is Intel Turbo Boost Technology available on the 6230T?

Accepted Answer

Yes, it features Intel Turbo Boost 2.0, automatically increasing clock speeds under load.

Question 10

How many PCI Express lanes does the 6230T offer?

Accepted Answer

It provides up to 48 PCIe 3.0 lanes for high-bandwidth I/O expansion.

Question 11

What virtualization technologies are supported by this processor?

Accepted Answer

It includes Intel VT-x, VT-d and Intel VT-c for hardware-assisted virtualization and I/O optimization.

Question 12

Which workloads is the Cascade Lake SP 6230T optimized for?

Accepted Answer

It is optimized for virtualization, cloud infrastructures, data analytics and enterprise-class application servers.

Question 13

Is the 6230T suitable for high-density data center deployments?

Accepted Answer

Yes, its 125 W TDP and efficient power/performance characteristics make it ideal for rack-optimized, high-density environments.

Question 14

What process technology is used to manufacture the 6230T?

Accepted Answer

The CPU is manufactured on Intel’s 14 nm++ process node for improved performance and efficiency.

Question 15

How does the 6230T differ from the standard Xeon Gold 6230?

Accepted Answer

The 6230T shares 20 cores/40 threads and 27.5 MB cache with the Gold 6230 but features a lower 125 W TDP (vs 150 W) and slightly reduced sustained turbo for enhanced energy efficiency.

Question 16

When was the Cascade Lake SP 6230T launched and is it available now?

Accepted Answer

Intel launched the 6230T in Q3 2019, and it remains widely available through server OEMs and distribution channels.

Question 17

What security features are integrated into the 6230T?

Accepted Answer

It incorporates Intel SGX, AES-NI, Intel OS Guard, and Boot Guard for hardware-based encryption and platform protection.

	CD8069504283704	CM8068403379312	BX80634E52470V2	CM8068403362510	BX80635E52680V2
Product Type	Processors	Processors	Processors	Processors	Processors
Brand	Intel	Intel	Intel	Intel	Intel
Series	Intel Core	Intel Core	Intel Xeon	Intel Core	Intel Xeon
Category	Desktop	Desktop	Server	Desktop	Server
Max Memory Support	128 GB	128 GB	512 GB	128 GB	512 GB
Memory Type Support	DDR4 & DDR5	DDR4	N/A	DDR4 & DDR5	N/A
Generation	Intel 13th Gen	Intel 11th Gen	N/A	Intel 12th Gen	N/A
Architecture	Raptor Lake	Rocket Lake	N/A	Alder Lake	N/A
ECC Support	No	No	Yes	No	Yes
Security Features	None	SGX	TXT	None	None
CPU Socket	LGA 1700	LGA 1200	N/A	LGA 1700	N/A
Instruction Set Extensions	AVX2	AVX2	AVX	AVX2	AVX
Virtualization Support	Intel VT-x / Intel VT-d	Intel VT-x	Intel VT-x	Intel VT-x / Intel VT-d	Intel VT-x
Cores	16	8	10	12	10
Threads	24	16	20	20	20
Base Clock	3.4	3.8	2.4 GHz	3.6	2.8
Max Boost Clock	5.4	5.0	2.6 GHz	5.0	3.6
Overclocking Support	Yes	Yes	No	Yes	No
L2 Cache	16	8	2.5 MB	12	2.5
L3 Cache	30	24	25 MB	20	25
TDP	125W	125W	95W	125W	115W
Integrated Graphics	Intel UHD Graphics 770	Intel UHD Graphics 730	None	Intel UHD Graphics 770	None
Graphics Base Frequency	350	350	N/A	350	N/A
Graphics Max Dynamic Frequency	1400	1300	N/A	1300	N/A
Memory Channels	Dual	Dual	Quad	Dual	Quad
PCIe Version	PCIe 5.0	PCIe 4.0	PCIe 3.0	PCIe 5.0	PCIe 3.0
Unlocked	Yes	Yes	No	Yes	No
Cooler Included	No	No	No	No	No
Use Case	Gaming / Workstation	Gaming	Server	Gaming	Server
Product Name	Intel Core i7-13700K	Intel Core i7-11700K	Intel Xeon E5-2470 v2	Intel Core i7-12700K Processor	Intel Xeon Processor E5-2680 v2
Height	N/A	0.165 inches	N/A	N/A	N/A
Width	N/A	1.48 inches	N/A	N/A	N/A
Depth	N/A	1.48 inches	N/A	N/A	N/A
Weight	N/A	N/A	N/A	N/A	N/A
