Name: CE6850U-48S6Q-HI-B
Brand: Huawei
Price: 11832.00 USD
Availability: InStock

Overview Of CE6850U-48S6Q-HI-B

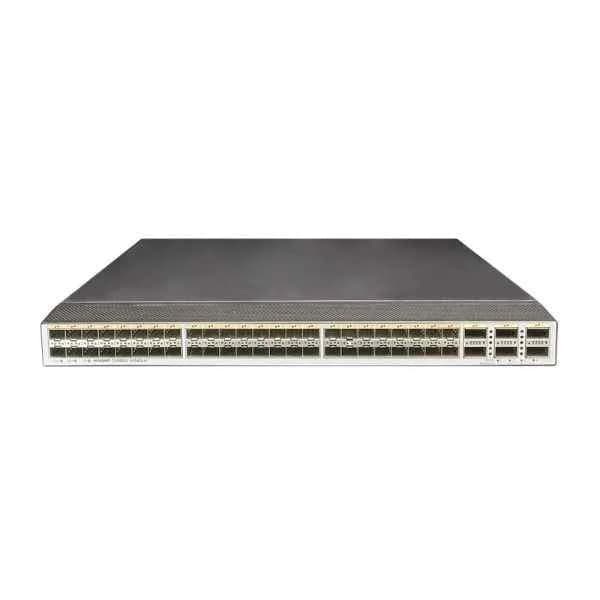

HUAWEI CE6850U-48S6Q-HI-B Overview

The Huawei CE6850U-48S6Q-HI-B is a high-performance data center switch designed for cloud computing, big data, and virtualization. It provides 48 SFP+ ports and 6 QSFP+ uplinks, offering advanced Layer 2 and Layer 3 switching with ultra-low latency. This switch is ideal for high-density, large-scale enterprise networks that require efficient, scalable, and energy-efficient solutions.

HUAWEI CE6850U-48S6Q-HI-B Features

Feature	Description
48 x 10GE SFP+ Ports	Provides high-speed 10GE ports for data-intensive environments.
6 x 40GE QSFP+ Uplinks	High-bandwidth uplink ports for network scalability and improved bandwidth.
Advanced Layer 2/3 Switching	Supports advanced protocols like OSPF, BGP, and MPLS for optimized traffic management.
High Switching Capacity	Delivers a switching capacity of 2.56 Tbps for seamless data forwarding.
Low Latency	Ultra-low latency for high-performance data transfer in critical applications.
Energy-Efficient Design	Optimized for low power consumption, reducing overall operational costs.
Stacking Support	Supports stacking of up to 16 switches for simplified management and greater scalability.
IPv6 Ready	Fully IPv6 compatible for future-proof networking solutions.
Enhanced Security	Features advanced security protocols like ACLs, 802.1X, and DHCP Snooping.
Modular Power Supply	Supports modular and redundant power supplies for reliable and continuous operation.
Advanced QoS	Provides Quality of Service (QoS) features to manage and prioritize network traffic.

Recommended Products for HUAWEI CE6850U-48S6Q-HI-B

Category	Part Number	Description
Router	Huawei AR2204-27GE	High-performance enterprise router with scalable networking capabilities.
Switch	Huawei S5735-L24P4X-A	24 GE ports and 4 10GE uplinks for enhanced enterprise networking performance.
Switch	Huawei S6720-54C-EI-48S-DC	54-port switch with high-performance Layer 3 routing and security features.
Power Supply	PWR-7201-AC	720W AC Power Supply providing reliable power management for high-density setups.
Power Supply	PWR-115W-AC	115W AC Power Supply suitable for smaller enterprise networks.

Specification Of CE6850U-48S6Q-HI-B

CE6850U-48S6Q-HI-B Datasheet

Specification	Details
Model	Huawei CE6850U-48S6Q-HI-B
Switching Capacity	2.56 Tbps
Forwarding Rate	720 Mpps
Ports	48 x 10GE SFP+, 6 x 40GE QSFP+
Power Supply	Modular AC/DC power supplies
Dimensions (W x D x H)	442 mm x 600 mm x 43.6 mm
Weight	10.5 kg
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
VLAN Support	Supports up to 4,096 VLANs
MAC Address Table	128K entries
Latency	Less than 1 µs
Packet Buffer	12 MB
Stacking Support	Supports stacking of up to 16 switches
QoS Features	8 queues per port, traffic shaping, and prioritization
IPv6 Support	Full IPv6 compatibility
Security Features	ACLs, 802.1X, DHCP Snooping, Dynamic ARP Inspection
Energy Efficiency	Optimized for low power consumption
Management	CLI, Web-based interface, SNMP, RMON
Certifications	CE, FCC, RoHS
Warranty	Limited Lifetime Warranty
Cooling System	Modular fan trays for enhanced cooling
