Explosion-proof design inspires confidence in hazardous areas.
DS-2DF6223-CX(W316L)
Original Stock
Ready to Ship

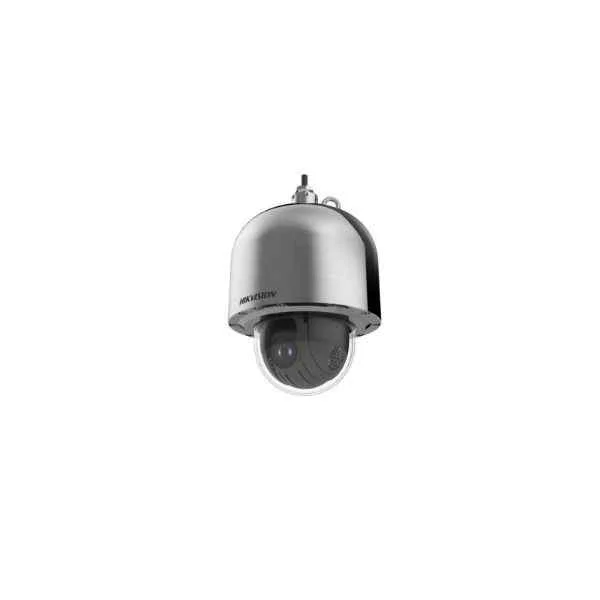

6-inch 23x Explosion-proof Network Speed Dome
FEATURED DEAL
Name:
DS-2DF6223-CX(W316L)
- Description:
- 6-inch 23x Explosion-proof Network Speed Dome
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Hikvision
- Condition:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
DS-2DF6223-CX(W316L) Overview
DS-2DF6223-CX(W316L) is a high-performance IP turret camera featuring a 4MP resolution paired with a varifocal lens, ensuring detailed imaging and flexible zoom control. It employs a 1/2.8" CMOS sensor that delivers clear visuals even under low light conditions, while its infrared night vision extends up to 30m for reliable performance in complete darkness.
The camera offers H.265+ video compression and supports 2-way audio, providing seamless communication and efficient bandwidth usage. With connectivity options such as PoE and Wi-Fi, ONVIF compliance for interoperability, local storage via a MicroSD slot (up to 128 GB), and an IP67 weather rating, DS-2DF6223-CX(W316L) is ideal for indoor retail, perimeter protection, license plate recognition, and warehouse surveillance.
DS-2DF6223-CX(W316L) price is is available on request. Get immediate quote.
Request bulk order quote for DS-2DF6223-CX(W316L) for additional pricing. Browse the full Hikvision Explosion-Proof Series Network Cameras series or explore all Hikvision products.
DS-2DF6223-CX(W316L) Specifications
- Product Type
- Security Camera
- Camera Type
- Turret
- Technology
- IP Camera
- Resolution
- 4MP
- Lens Type
- Varifocal
- Smart Features
- Motion Detection
- Mounting Type
- Wall
- Color
- Black
- Use Case
- Indoor / Retail / Perimeter Protection / Warehouse
- Focal Length
- 2.7–13.5mm
- Image Sensor
- 1/2.8" CMOS
- Frame Rate
- 30 FPS
- Infrared Night Vision
- 30m
- Low Light Technology
- Starlight
- Day/Night Mode
- True Day/Night (ICR)
- Video Compression
- H.265+
- Audio Support
- 2-Way Audio
- Storage Option
- MicroSD Slot
- Max Storage Capacity
- 128 GB
- Power Type
- PoE
- Weather Rating
- IP67
- Vandal Resistance
- N/A
- ONVIF Compliant
- Yes
- Product Name
- DS-2DF6223-CX(W316L)
- Height
- 4.0 inches
- Width
- 3.0 inches
- Depth
- 3.0 inches
- Weight
- 1.0 lbs
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| DS-2DF6223-CX(W316L) |  DS-2XE6025G0-I(S)(M) |  DS-2XE6422FWD-IZH(R)S |  DS-2DB4236I-CWX |  DS-2DB4223I-CX | |
|---|---|---|---|---|---|
| Product Type | Security Camera | Security Camera | Security Camera | Security Camera | Security Camera |
| Camera Type | Turret | Bullet | Bullet | Turret | Bullet |
| Technology | IP Camera | IP Camera | IP Camera | IP Camera | IP Camera |
| Resolution | 4MP | 2MP | 4MP | 8MP | 2MP |
| Lens Type | Varifocal | Fixed | Fixed | Motorized | Fixed |
| Smart Features | Motion Detection | Motion Detection | Motion Detection | Motion Detection | Motion Detection |
| Mounting Type | Wall | Wall | Wall | Wall | Wall |
| Color | Black | Black | Black | Black | Black |
| Use Case | Indoor / Retail / Perimeter Protection / Warehouse | Indoor / Retail / Office Security / Perimeter Protection / Warehouse | Retail | Indoor, Retail, Perimeter Protection, Warehouse | Perimeter Protection |
| Focal Length | 2.7–13.5mm | 4mm | 4mm | 2.7–13.5mm | 4mm |
| Image Sensor | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Night Vision | 30m | 30m | 30m | 30m | 30m |
| Low Light Technology | Starlight | EXIR | EXIR | EXIR | Starlight |
| Day/Night Mode | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.265+ | H.265+ | H.265 | H.265 | H.265 |
| Audio Support | 2-Way Audio | Built-in Mic | No Audio | 2-Way Audio | Audio Input |
| Storage Option | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot |
| Max Storage Capacity | 128 GB | 128 GB | 128 GB | 128 GB | 128 GB |
| Power Type | PoE | PoE | PoE | PoE | PoE |
| Weather Rating | IP67 | IP67 | IP67 | IP67 | IP67 |
| Vandal Resistance | N/A | N/A | None | N/A | N/A |
| ONVIF Compliant | Yes | Yes | Yes | Yes | Yes |
| Product Name | DS-2DF6223-CX(W316L) | DS-2XE6025G0-I(S)(M) | DS-2XE6422FWD-IZH(R)S | DS-2DB4236I-CWX | DS-2DB4223I-CX |
| Height | 4.0 inches | 4 inches | 3.7 in | 4.5 inches | N/A |
| Width | 3.0 inches | 3 inches | 2.8 in | 3.7 inches | N/A |
| Depth | 3.0 inches | 2 inches | 2.8 in | 3.7 inches | N/A |
| Weight | 1.0 lbs | 1.5 lbs | 1.2 lbs | 2.2 lbs | N/A |
Reviews & Ratings
G
George Patel
5
Smooth zoom and stable imaging.
H
Hugo Martinez
5
Built extremely solid for industrial use.
I
Imran Nazir
5
Reliable performance in extreme conditions.
J
Julio Perez
4
Specialized but very dependable camera.
Questions & Answers
What is the DS-2DF6223-CX(W316L) explosion-proof network speed dome?
The DS-2DF6223-CX(W316L) is a 6-inch explosion-proof PTZ camera featuring 23× optical zoom, designed for hazardous environments and network surveillance.
Which hazardous locations is this speed dome certified for?
It carries ATEX Zone 1/21 and IECEx certifications, making it suitable for Zone 1 gas and Zone 21 dust environments.
What zoom range does the 23× lens cover?
The 23× optical zoom covers a focal length range of 4.8 mm to 110 mm, providing detailed imaging from wide-angle to telephoto.
How is low-light performance handled?
Equipped with a high-sensitivity 1/2.8″ CMOS sensor and Smart IR technology, it delivers clear imagery down to 0.005 lux.
What environmental conditions can it withstand?
Built with an IP68/IP69K and NEMA 4X housing, it resists dust, high-pressure washdown, salt spray and temperatures from -40 °C to 60 °C.
Which network protocols are supported?
It supports ONVIF, HTTP, HTTPS, RTP/RTSP, TCP/IP, UDP, ICMP, DHCP, NTP and IPv4/IPv6 for seamless integration.
Does it support Power over Ethernet (PoE)?
Yes, it supports PoE+ (802.3at) for simplified installation and reliable power delivery over a single cable.
What remote control options are available?
You can control PTZ functions and view live streams via web interface, Hik-Connect, or third-party VMS over standard network protocols.
How does it handle explosion-proof requirements?
The W316L stainless steel housing and internal purge system meet stringent explosion-proof standards for gas and dust ignition safety.
What mounting options exist?
Standard mounting options include ceiling, wall and column adapters. Specialized brackets are available for pipelines and offshore structures.
What video formats and resolutions does it deliver?
It streams up to 1080p@60fps in H.265+/H.264+/MJPEG, offering efficient bandwidth use and flexible recording.
How do I integrate it with existing CCTV systems?
Simply add it via ONVIF or RTSP in your VMS, configure IP settings, and assign RTSP or multicast streams for seamless integration.
What maintenance is required?
Minimal maintenance is needed. Clean the dome cover periodically and verify seals to ensure explosion-proof integrity.
What warranty and support are provided?
It includes a two-year manufacturer warranty and access to 24/7 technical support through our global service network.
Can it operate in marine or offshore environments?
Yes, its salt-spray-resistant stainless steel housing and IP69K rating make it ideal for harsh marine and offshore conditions.
Where can I purchase mounting accessories and spare parts?
Authorized distributors and our online store offer mounting brackets, junction boxes, power supplies and replacement domes.
