Combines panoramic overview with powerful PTZ zoom effectively.
DS-2DP1636ZIX-D236
Original Stock
Ready to Ship

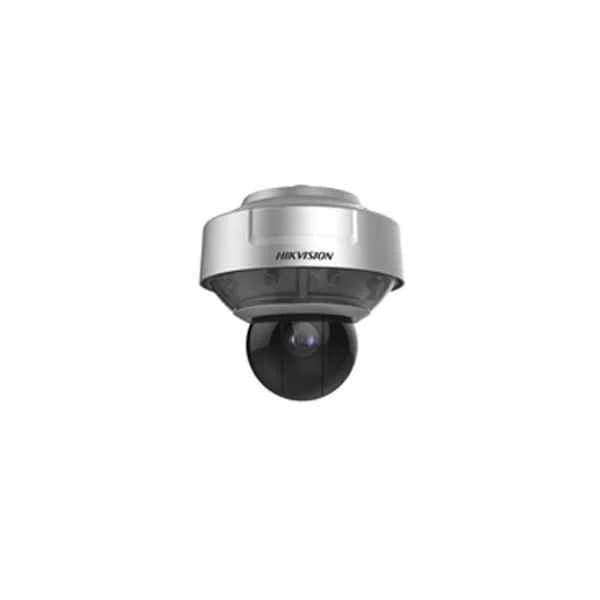

PanoVu Series 360° Panoramic + PTZ Camera (5mm)
FEATURED DEAL
Name:
DS-2DP1636ZIX-D236
- Description:
- PanoVu Series 360° Panoramic + PTZ Camera (5mm)
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Hikvision
- Condition:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
DS-2DP1636ZIX-D236 Overview
DS-2DP1636ZIX-D236 is an IP turret security camera offering 4MP resolution paired with a motorized lens for precise zoom control and adjustable viewing angles. It utilizes a 1/2.8" CMOS sensor with H.265+ video compression, delivering clear images both day and night with IR capabilities up to 30m, and supports 2-way audio for seamless communication.
Designed for versatile connectivity through PoE, DS-2DP1636ZIX-D236 is ONVIF compliant and features local storage via a MicroSD slot, making it ideal for indoor retail environments, perimeter defense, license plate recognition, and warehouse surveillance. Its robust design is enhanced by an IP67 weather rating, ensuring reliable performance in varied conditions.
DS-2DP1636ZIX-D236 price is is available on request. Get immediate quote.
Request bulk order quote for DS-2DP1636ZIX-D236 for additional pricing. Browse the full Hikvision Panovu Series Network Cameras series or explore all Hikvision products.
DS-2DP1636ZIX-D236 Specifications
- Product Type
- Security Camera
- Camera Type
- Turret
- Technology
- IP Camera
- Resolution
- 4MP
- Lens Type
- Motorized
- Smart Features
- ANPR
- Mounting Type
- Ceiling
- Color
- Black
- Use Case
- Retail
- Focal Length
- 2.7–13.5mm
- Image Sensor
- 1/2.8" CMOS
- Frame Rate
- 30 FPS
- Infrared Night Vision
- 30m
- Low Light Technology
- Starlight
- Day/Night Mode
- True Day/Night (ICR)
- Video Compression
- H.265+
- Audio Support
- 2-Way Audio
- Storage Option
- MicroSD Slot
- Max Storage Capacity
- 128 GB
- Power Type
- PoE
- Weather Rating
- IP67
- Vandal Resistance
- None
- ONVIF Compliant
- Yes
- Product Name
- DS-2DP1636ZIX-D236
- Height
- 4.5 inches
- Width
- 3.2 inches
- Depth
- 3.5 inches
- Weight
- 2.1 lbs
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| DS-2DP1636ZIX-D236 |  DS-2PT3122IZ-DE3 |  DS-2PT3306IZ-DE3 |  DS-2CD6D24FWD-IZH |  DS-2CD6924F-ISNFC | |
|---|---|---|---|---|---|
| Product Type | Security Camera | Security Camera | Security Camera | Security Camera | Security Camera |
| Camera Type | Turret | Turret | Bullet | Bullet | Bullet |
| Technology | IP Camera | IP Camera | IP Camera | IP Camera | IP Camera |
| Resolution | 4MP | 2MP | 2MP | 4MP | 4MP |
| Lens Type | Motorized | Fixed | Fixed | Fixed | Fixed |
| Smart Features | ANPR | N/A | Motion Detection | Motion Detection | ANPR |
| Mounting Type | Ceiling | Wall | Wall | Wall | Wall |
| Color | Black | Black | Black | Black | Black |
| Use Case | Retail | Retail | Perimeter Protection | Retail / Perimeter Protection / Warehouse | Indoor / Retail / Perimeter Protection / Warehouse |
| Focal Length | 2.7–13.5mm | 4mm | 4mm | 2.8mm | 2.8mm |
| Image Sensor | 1/2.8" CMOS | 1/3" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Night Vision | 30m | 30m | 30m | 30m | 30m |
| Low Light Technology | Starlight | IR | EXIR | IR | EXIR |
| Day/Night Mode | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.265+ | H.265 | H.265+ | H.265+ | H.265+ |
| Audio Support | 2-Way Audio | Built-in Mic | No Audio | No Audio | Audio Input |
| Storage Option | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot |
| Max Storage Capacity | 128 GB | 64 GB | 64 GB | 128 GB | 128 GB |
| Power Type | PoE | PoE | PoE | PoE | PoE |
| Weather Rating | IP67 | IP67 | IP67 | IP67 | IP67 |
| Vandal Resistance | None | None | IK10 | N/A | N/A |
| ONVIF Compliant | Yes | Yes | Yes | Yes | Yes |
| Product Name | DS-2DP1636ZIX-D236 | DS-2PT3122IZ-DE3 | DS-2PT3306IZ-DE3 | DS-2CD6D24FWD-IZH | DS-2CD6924F-ISNFC |
| Height | 4.5 inches | 3.5 inches | 6.5 inches | 3.1 inches | 4.5 inches |
| Width | 3.2 inches | 2.7 inches | 3.1 inches | 2.2 inches | 3.5 inches |
| Depth | 3.5 inches | 2.5 inches | 3.1 inches | 2.2 inches | 3.5 inches |
| Weight | 2.1 lbs | 1.2 lbs | 1.8 lbs | 1.8 lbs | 1.8 lbs |
Reviews & Ratings
L
Leonard Fischer
5
Excellent situational awareness for large outdoor areas.
G
Gordon Blake
5
Smooth transitions between panoramic and zoomed views.
J
Julian North
5
Reliable performance for complex security environments.
M
Matthew Caldwell
5
Reduces camera count while maintaining coverage.
Questions & Answers
What viewing angles and zoom capabilities does the DS-2DP1636ZIX-D236 offer?
This PanoVu camera provides 360° seamless panoramic coverage with a 5 mm lens and a 36× optical zoom PTZ module (5–180 mm), enabling both broad-area monitoring and long-distance detail capture.
What resolutions and frame rates are supported by this camera?
The panoramic module streams up to 5 MP (2592×1944) at 30 fps, while the PTZ module delivers up to 2 MP (1920×1080) at 30 fps, ensuring smooth, high-definition video.
How does the day/night function work on the DS-2DP1636ZIX-D236?
An infrared‐cut filter and built-in IR LEDs enable automatic day/night switching, delivering clear color images by day and high-contrast B/W footage up to 100 m in low-light conditions.
Is the DS-2DP1636ZIX-D236 suitable for outdoor installations?
Yes. It carries an IP66 weather-proof and IK10 vandal-resistant rating, making it robust against rain, dust, and impact for reliable outdoor surveillance.
What power options are available for this PanoVu camera?
The camera supports 12 V DC input and PoE + (802.3at), allowing flexible deployment with a single Ethernet cable for both power and data.
Which video compression standards does the DS-2DP1636ZIX-D236 use?
It supports H.265+, H.265, H.264+, and H.264 codecs, delivering up to 50 % bandwidth and storage savings with H.265+ compared to standard H.264.
Does the camera support smart analytics and motion detection?
Yes. Built-in analytics include tripwire, intrusion, face detection, heat mapping, and object classification for proactive event alerts and forensic search.
How can I store video recordings locally?
An onboard MicroSD/SDHC/SDXC slot (up to 256 GB) enables edge recording, scheduled or event-triggered, ensuring continuous coverage even if the network drops.
Can I integrate this camera with third-party VMS platforms?
Yes. It is ONVIF Profile S and G compliant and works seamlessly with Hikvision’s iVMS-4200 as well as leading third-party VMS solutions.
Which network protocols and interfaces does it support?
The camera offers 10/100 Mbps Ethernet, TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, NTP, and QoS, ensuring broad compatibility with network infrastructures.
How can I access live view and playback remotely?
Use Hik-Connect or iVMS-4500 mobile apps and a standard web browser to view live streams and recordings from anywhere with secure, encrypted connections.
What are the operating temperature and environmental limits?
Rated for –40 °C to +65 °C (–40 °F to +149 °F) and 0–95 % RH (non-condensing), it withstands extreme climates for consistent performance.
What mounting options are available for installation?
The DS-2DP1636ZIX-D236 supports wall-, ceiling- and pendant-mount brackets (sold separately), providing flexible placement in any surveillance scenario.
How much network bandwidth does the camera consume?
At maximum resolution, a single stream requires about 5 Mbps with H.265+; dual-stream and analytics may increase total usage to 8–10 Mbps under peak activity.
What dimension and weight specifications should I plan for?
The unit measures 280 × 315 × 154 mm and weighs approximately 4.1 kg, so ensure your mount or junction box can support its size and mass.
How do I perform firmware updates and configuration?
Use the Hikvision SADP tool or web-based interface to upload firmware, adjust network settings, configure analytics, and manage users with granular access controls.
