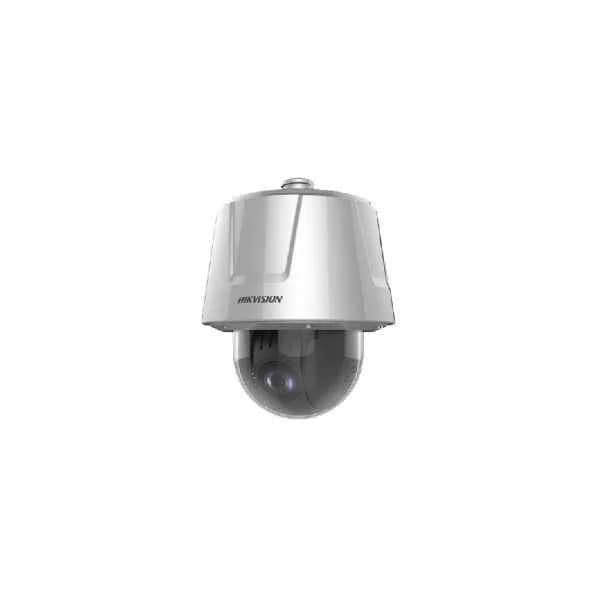

DS-2DT6223-AELY

Specification Of DS-2DT6223-AELY

DS-2DT6223-AELY Specification

DS-2DT6223-AELY Specification

• Lens
• FOV59.8° to 3.0° (Wide-Tele)
• Zoom SpeedApprox. 4.4 s (Optical Wide-Tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.5 to F3.4
• Focal Length5.9 to 135.7 mm, 23 optical zoom

• Image
• Sub-Stream50Hz: 25fps (704576, 352288, 176144); 60Hz: 30fps(704480, 352240, 176120)
• Max. Resolution1920 1080
• Main Stream50Hz: 25fps (19201080, 1280960, 1280720); 60Hz: 30fps(19201080, 1280960, 1280720)
• Third Stream50Hz: 25fps (19201080, 1280960, 1280720, 704576, 352288, 176144)60Hz: 30fps (19201080, 1280960, 1280720, 704480, 352240, 176120)

• Compression Standard
• SVCYes

• Camera Module
• Image Sensor1/1.8" progressive scan CMOS
• Min. IlluminationColor: 0.002 Lux @(F1.5, AGC ON),B/W: 0.0002 Lux @(F1.5, AGC ON)
• White BalanceAuto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
• Shutter Time1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16
• Privacy Mask24 programmable privacy masks; optional multiple colors and mosaics
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB
• Rapid FocusNo

• PTZ
• Movement Range (Pan)360° endless
• Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
• Movement Range (Tilt)From -10° to 90°
• Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
• Proportional ZoomYes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 patterns, with the recording time not less than 10 minutes per pattern
• Power-off MemoryYes
• Park ActionPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan
• Scheduled TaskPreset/Patrol/Pattern/Auto scan/Tilt scan/Random scan/Frame scan/Panorama scan/Dome reboot/Dome adjust/Aux output

]
