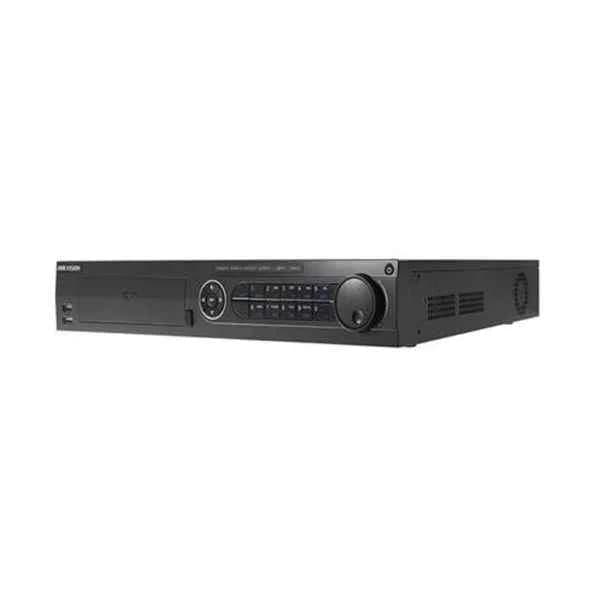

DS-7716NI-E4

DS-7716NI-E4 Specification

Video/Audio Input

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1kΩ)

IP video input

16-ch

Network

Remote connection

128

Incoming bandwidth

160Mbps

Outgoing bandwidth

80Mbps

Video/Audio Output

HDMI/VGA output

1-ch, resolution:

1920 1080P /60Hz, 1600 1200 /60Hz, 1280 1024 /60Hz, 1280 720 /60Hz, 1024 768 /60Hz

Recording Resolution

6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Frame Rate

Main stream: 50 fps (P) / 60 fps (N)

Sub-stream: 50 fps (P) / 60 fps (N)

Decoding

Capability

16-ch@4CIF, 12-ch@720P, 6-ch@1080P

Live view / Playback

6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk

SATA

4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs

Capacity

Up to 6TB capacity for each HDD

External Interface

Network Interface

2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces

USB Interface

Front panel: 2 USB 2.0

Rear panel: 1 USB 3.0

Alarm In

16-ch

Alarm Out

4-ch

General

Power Supply

100~240VAC

Consumption (without hard disk and POE)

‰¤ 20W

Working Temperature

-10 oC ~ +55 oC (+14 oF~ + 131 oF)

Working Humidity

10 % ~ 90 %

Chassis

19-inch rack-mounted 1.5U chassis

Dimensions

445 390 70mm (17.5 15.3 2.8 inch)
