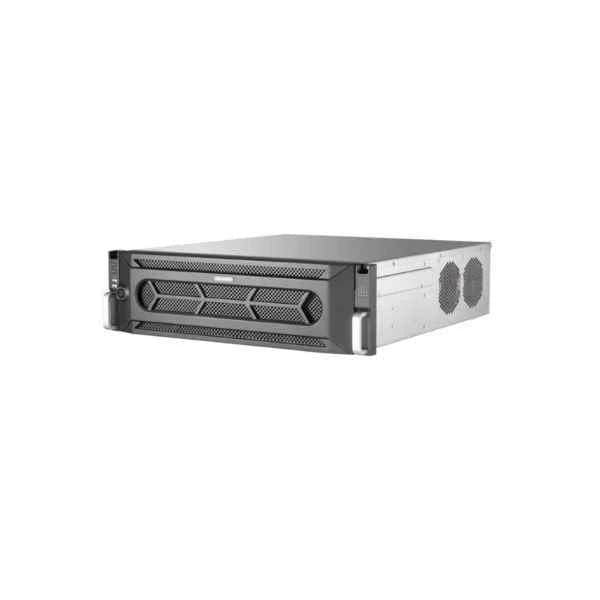

DS-9000AI-S16-D

Specification Of DS-9000AI-S16-D

DS-9000AI-S16-D Specification

DS-9000AI-S16-D Specification

• System
• ProcessorQuad-Core Intel® Xeon® Processor E3 V5 Series
• Memory8GB DDR4. ECC parity. Extendable up to 64 GB
• Operating systemUbuntu Linux is installed by default. Microsoft Windows, including Windows 7E,,Windows 10, and Windows Server 2012 R2 can be installed

• Externalinterface
• USB interfaceFront panel: 2 USB 2.0; Rear panel: 2 USB 3.0
• LAN4 RJ45 10M/100M/1000M self-adaptive Ethernet interface
• Serial interface1 RS-485 (full-duplex);1 Keyboard;1 RS-232,
• Two-way audio interface1-ch, RCA (2.0 Vp-p, 1 K„¦)
• Alarm Input / Output16/8

• Storage
• SATA interface16 3.5-inch HDDs are connectable. Hot swapping
• CapacityUp to 10 TB for each HDD
• eSATA1 eSATA interface ;2 mini SAS interface (optional),

• Server board
• Video cardIntel® HD Graphics P530
• System diskIndustrial-level SSD with 128 GB capacity
• Video output2 HDMI interface with resolution up to 4K;,1 VGA interface with resolution up to 1080p,HDMI 1 and VGA simultaneous output mode is enabled by default.
• Audio input/output2 RCA interface. One for audio input and one for audio output
• SATA interfaceFour 2.5-inch HDDs are connectable

• Storageboard
• InstallationPluggable HDD tray. Hot swapping
• RAIDRAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• ProcessorDual-Core Intel Processor,
• Operation systemEmbedded Linux
• IPC video input128-ch
• Incoming/outgoingbandwidth576/512Mbps
• TLS outgoingbandwidth128 Mbps, or 64 Mbps (when RAID is enabled),
• Decoding formatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
• Video resolution12MP/8MP/7MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/Q,CIF
• Synchronous playback16-ch
• CapabilityH.264, H.264+, H.265, and H.265+ stream: 20@1080p;,MPEG4 and MJPEG: 10@1080p

• Otherparameter
• Working humidity10% to 90% RH (no freezing and no condensation)
• Storage temperature-10 °C to +70 °C (+14 °F to +158 °F)
• Storage humidity5% to 90% RH (no freezing and no condensation)

• Hardware
• StructurePluggable HDD trays with no-cable design and dual-board structure (server board,and storage board) realize effective task and storage management.
• BezelFrosted aluminum alloy bezel. Hot swapping
• Multi-functional mounting earsIntegrates status indicators, functional buttons, USB interfaces, and handles.,Supports one-key muting
• FanRedundant dual-ball bearing fan. Hot swapping and smart speed adjusting
• Power supplyRedundant power supply module meets the Intel CRPS (Common Redundant,Power Supply) standard. 100 to 240 VAC, 550 W wide-range power input
• Guide railExternal guide rail for installing device into a rack

• Video/Audio output
• HDMI interfaceTwo independent HDMI outputs, resolution: 4K (4096x2160), 4K,(3840x2160)/30Hz, 2K (2560x1440)/60Hz, 1080p (1920x1080)/60Hz, UXGA,(1600x1200)/60Hz, SXGA (1280x1024)/60Hz, 720p (1280x720)/60Hz, XGA,(1024x768)/60Hz
• Audio output1-ch, RCA (2.0 Vp-p, 1 K„¦)
• VGA interface1-ch, resolution: 1080p (1920x1080)/60Hz, UXGA (1600x1200)/60Hz, SXGA (1280x1024)/60Hz, 720p (1280x 720)/60Hz, XGA (1024x768)/60Hz

• General
• Consumption(without hard disk)‰¤ 350 W
• Working temperature-10 °C to +70 °C (+14 °F to +158 °F)
• Working humidity5% to 90% RH (no freezing and no condensation)
• Dimensions (W D H)487 560 133 mm (19.2 22.0 5.2 inch),
• Weight (without hard disk)‰¤ 20 Kg (44.1 lb)
• Chassis3U chassis of thick galvanized steel,

]
