E1MG-CWDM80-1490-C Overview

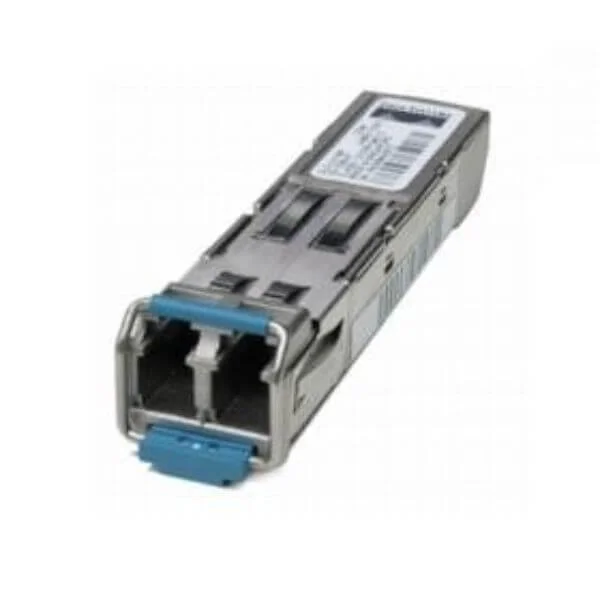

E1MG-CWDM80-1490-C is an SFP optical transceiver that supports a 1G data rate using an LC connector. Designed for long-range transmission, this module employs CWDM technology to achieve distances up to 80 km over single-mode fiber, and it supports Ethernet protocols.
Engineered with a compact form factor and standard physical dimensions, E1MG-CWDM80-1490-C is ideally suited for deployment in data centers, enterprise networks, and telecom applications. Its robust design ensures reliable performance in varied operating conditions, making it a trusted solution for high-performance fiber connectivity.
E1MG-CWDM80-1490-C price is is available on request. Get immediate quote.
Request bulk order quote for E1MG-CWDM80-1490-C for additional pricing. Browse the full Brocade Networking Compatible Sfp Cwdm series or explore all Orm products.
E1MG-CWDM80-1490-C Specifications
- Product Type
- Transceiver
- Form Factor
- SFP
- Data Rate
- 1G
- Connector Type
- LC
- Wavelength
- 1490 nm
- Transmission Distance
- Long-Range
- Fiber Type
- Single-mode
- Max Distance
- 80 km
- Supported Protocols
- Ethernet
- Network Interface
- Fiber
- Power Consumption
- N/A
- Operating Temperature
- 0 to 70°C
- Storage Temperature
- -40 to 85°C
- Input Voltage
- 3.3V
- Compatibility
- Cisco / Juniper / Huawei / Arista
- Product Name
- E1MG-CWDM80-1490-C
- Height
- N/A
- Width
- N/A
- Depth
- N/A
- Weight
- N/A
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| E1MG-CWDM80-1490-C |  E1MG-CWDM80-1530-C |  E1MG-CWDM80-1570-C |  E1MG-CWDM80-1470-C |  E1MG-CWDM80-1610-C | |
|---|---|---|---|---|---|
| Product Type | Transceiver | Transceiver | Transceiver | Transceiver | Transceiver |
| Form Factor | SFP | SFP | SFP | SFP | SFP+ |
| Data Rate | 1G | 1G | 1G | 10G | 10G |
| Connector Type | LC | LC | LC | LC | LC |
| Wavelength | 1490 nm | 1530 nm | 1570 nm | 1470 nm | 1610 nm |
| Transmission Distance | Long-Range | Extended-Range | Extended-Range | Long-Range | Long-Range |
| Fiber Type | Single-mode | Single-mode | Single-mode | Single-mode | Single-mode |
| Max Distance | 80 km | 80 km | 80 km | 80 km | 80 km |
| Supported Protocols | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Network Interface | Fiber | Ethernet | Fiber | Fiber | Fiber |
| Power Consumption | N/A | 1.5W | N/A | 3.5W | 3.6W |
| Operating Temperature | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
| Storage Temperature | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C |
| Input Voltage | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Compatibility | Cisco / Juniper / Huawei / Arista | Cisco, Juniper, Huawei, Arista | Cisco, Juniper, Huawei, Arista | N/A | Cisco / Juniper / Huawei / Arista |
| Product Name | E1MG-CWDM80-1490-C | E1MG-CWDM80-1530-C | E1MG-CWDM80-1570-C | E1MG-CWDM80-1470-C | E1MG-CWDM80-1610-C |
| Height | N/A | N/A | N/A | N/A | 0.30 inches |
| Width | N/A | N/A | N/A | N/A | 0.55 inches |
| Depth | N/A | N/A | N/A | N/A | 1.38 inches |
| Weight | N/A | N/A | N/A | N/A | 0.11 lbs |
Reviews & Ratings
T
Tiny Montgomery
5
Professional 1490nm performance. Significant fiber savings for regional projects.
J
Jacob Sinclair
4
Consistent 1G speeds at 1490nm. ZR-grade sensitivity is excellent.
F
Fred Sterling
5
Flawless 1490nm deployment. Rock-solid stability and seamless integration.
I
Ishmael Rhodes
4
Solid signal integrity. Immediate recognition as native Brocade hardware.
Q
Queequeg Vane
5
Carrier-class ZR optics. Rock-solid connectivity for long-haul backbones.
Questions & Answers
What is the E1MG-CWDM80-1490-C SFP optic?
The E1MG-CWDM80-1490-C is a CWDM SFP transceiver module designed for 80 km transmission at 1490 nm wavelength with an LC connector, fully compatible with Brocade switches.
Which switches and routers is this CWDM SFP compatible with?
This module is interoperable with Brocade, Cisco, Juniper, HP and other CWDM-compliant switches and routers that support 1490 nm SFP optics.
What is the maximum transmission distance of this module?
The E1MG-CWDM80-1490-C supports single-mode fiber transmission up to 80 km under standard conditions.
What data rate does the E1MG-CWDM80-1490-C support?
This CWDM SFP optic supports data rates up to 1.25 Gbps, making it ideal for Gigabit Ethernet and Fibre Channel applications.
What type of fiber connector does this module use?
The transceiver uses a duplex LC connector for reliable single-mode fiber connections.
What wavelength does the module operate at?
The module operates at a central wavelength of 1490 nm, compliant with the CWDM ITU-T G.694.2 grid.
Does the E1MG-CWDM80-1490-C support digital diagnostics monitoring?
Yes, it features Digital Diagnostics Monitoring (DDM) for real-time measurement of optical power, temperature, voltage, and laser bias current.
Is this SFP transceiver hot-swappable?
Yes, the E1MG-CWDM80-1490-C is fully hot-swappable, allowing installation or removal without powering down your network device.
What operating temperature range does it support?
The module operates reliably between 0 °C and 70 °C (32 °F to 158 °F) for commercial environments.
What standards and protocols does this CWDM SFP comply with?
It complies with SFP MSA, IEEE 802.3z, ITU-T G.694.2 for CWDM, and RoHS environmental directives.
How do I install the E1MG-CWDM80-1490-C transceiver?
To install, power down the port (if required), insert the SFP into the SFP slot until it clicks, and then connect your LC fiber patch cable.
How can I verify that the module is working correctly?
Check link LED status on your switch or router, and use the DDM feature to confirm optical power and module temperature readings.
What is the typical power consumption of this SFP module?
The typical power consumption is under 1 W, making it energy-efficient for high-density deployments.
Does the E1MG-CWDM80-1490-C come with a warranty?
Yes, it includes a one-year limited warranty against manufacturing defects and performance issues.
Is the transceiver compliant with environmental regulations?
Yes, the module is RoHS-compliant and free of lead, mercury, and other restricted substances.
How do I troubleshoot link failure with this CWDM SFP?
Verify fiber integrity, clean LC connectors, confirm correct wavelength pairing, and check DDM readings for optical power levels.
