How do I install the E8KE-X-101-24XGE-SFP module?

Power down the chassis, align the card with two adjacent sub-slots, slide it firmly into place, tighten the captive screws, and power the unit back on.

What does 1/2-wide designation mean for this flexible card?

The 1/2-wide form factor indicates the card occupies two adjacent sub-slots, offering higher port density in a single line-card slot.

Does the module support hot-swapping?

No, this card requires the chassis to be powered down before insertion or removal to ensure proper firmware initialization.

What is the maximum switching throughput per port?

Each port delivers up to 1 Gbps full-duplex, with aggregate switching capacity of 48 Gbps across all 24 ports.

What are the power and cooling requirements?

The card draws 25 W nominal power and must be installed in a chassis with front-to-back airflow and redundant fans.

Which management features are supported?

It supports SNMP, CLI, Web GUI, and RMON for performance monitoring, VLAN, QoS, and port security configurations.

What environmental specifications apply to this card?

Operating temperature ranges from 0 °C to 45 °C, relative humidity 5%–90% non-condensing, compliant with RoHS and NEBS Level 3.

Can I use this card for long-reach fiber applications?

Yes, with appropriate single-mode SFP transceivers, it supports distances up to 80 km for long-reach links.

What warranty and support are available?

The module includes a one-year limited hardware warranty and 24×7 technical support with optional extended service plans.

What typical use cases suit the 24XGE-SFP card?

Ideal for data center top-of-rack aggregation, campus backbones, and carrier Ethernet deployments requiring high-density fiber ports.

How do I order replacement or additional cards?

Contact your authorized reseller with SKU E8KE-X-101-24XGE-SFP and specify the quantity and service level you require.

FEATURED DEAL

Name:

E8KE-X-101-24XGE-SFP

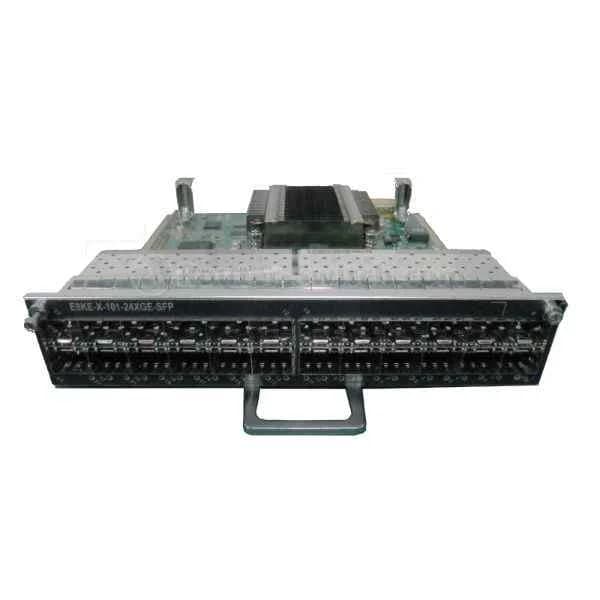

Description:: 24-Port 100/1000Base-X-SFP Flexible Card(P101,1/2wide,Occupy two sub-slots)
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Huawei
GTIN:: 886598034937
Condition:
Warranty:: 3
List Price:: $7,688.54
Price:: $3,382.9556% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

e8ke-x-101-24xge-sfp 24-port 100/1000base-x-sfp flexible card(p101,1/2wide,occupy two sub-slots)

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

E8KE-X-101-24XGE-SFP

24-Port 100/1000Base-X-SFP Flexible Card(P101,1/2wide,Occupy...

$7,688.54 $3,382.9556% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

E8KE-X-101-24XGE-SFP Overview

E8KE-X-101-24XGE-SFP is a high-performance network module designed for 10Gbps connectivity, featuring 24 SFP+ ports that deliver reliable high-speed data transmission. This Ethernet module is engineered for use in servers, routers, and switches, supporting standard TCP/IP protocols and ensuring compatibility with major network infrastructures from vendors such as Cisco, Juniper, Arista, Dell, and HP.

E8KE-X-101-24XGE-SFP offers a modular design that simplifies installation within modern data centers and enterprise networking environments. With its proven form factor, efficient power consumption, and support for advanced features like auto-negotiation, jumbo frames, and quality of service (QoS), this module is an ideal solution for upgrading server network interfaces and expanding high-speed network capacity.

E8KE-X-101-24XGE-SFP price is $3,382.95, a 56% saving from the Huawei list price of $7,688.54. E8KE-X-101-24XGE-SFP is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for E8KE-X-101-24XGE-SFP for additional pricing. Browse the full Data Center Firewall Modules series or explore all Huawei products.

E8KE-X-101-24XGE-SFP Specifications

Width: 17.5 inches
Height: 1.75 inches
Depth: 10 inches
Weight: 3 lbs
Power Consumption: 50W
Expansion Slots: N/A
Interface Ports: SFP+
Form Factor: Modular
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Connector Type: SFP+
Product Type: Network Module / Network Card
Supported Protocols: TCP/IP
Max Speed: 10Gbps
Supported Features: Auto-negotiation / Jumbo Frames / QoS
Data Rate: 10Gbps
Module Type: SFP+
Compatibility: Cisco / Juniper / Arista / Dell / HP
Product Name: E8KE-X-101-24XGE-SFP

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	E8KE-X-101-24XGE-SFP	FWCD00EFGF01	E8KE-X-LPUF-101	FWCD0LPUND01	SPU-X3-20-O-E8KE
Product Type	Network Module / Network Card	Network Card	Network Card	Network Card	Network Module / Network Card
Module Type	SFP+	Fibre Channel	Ethernet	Fibre Channel	SFP+
Data Rate	10Gbps	10Gbps	10G	10Gbps	10G
Connector Type	SFP+	SFP+	SFP+	SFP+	SFP+
Supported Protocols	TCP/IP	Fibre Channel	TCP/IP	Fibre Channel	TCP/IP
Form Factor	Modular	PCIe	PCIe	PCIe	Modular
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V / 5V	3.3V
Compatibility	Cisco / Juniper / Arista / Dell / HP	Cisco / Dell / HP	Cisco, Dell, HP	Dell / HP	Cisco / Juniper / Arista / Dell / HP
Max Speed	10Gbps	10Gbps	10Gbps	10Gbps	10Gbps
Supported Features	Auto-negotiation / Jumbo Frames / QoS	N/A	Auto-negotiation, Wake-on-LAN, Jumbo Frames, QoS	Auto-negotiation / Jumbo Frames / QoS	Auto-negotiation / Wake-on-LAN / Jumbo Frames / QoS
Power Consumption	50W	N/A	15W	7W	N/A
Interface Ports	SFP+	SFP+	Ethernet	Fibre Channel	SFP+
Expansion Slots	N/A	PCIe	PCIe	NIM	N/A
Product Name	E8KE-X-101-24XGE-SFP	FWCD00EFGF01 Fibre Channel Card	E8KE-X-LPUF-101 High Performance Ethernet Module	FWCD0LPUND01 Fibre Channel Accelerator Card	SPU-X3-20-O-E8KE High-Speed Network Module
Height	1.75 inches	N/A	1.5 inches	1.0 inches	N/A
Width	17.5 inches	N/A	3.4 inches	4.4 inches	N/A
Depth	10 inches	N/A	0.6 inches	0.5 inches	N/A
Weight	3 lbs	N/A	0.5 lbs	1.2 lbs	N/A

Reviews & Ratings

Oliver Benson

24-port SFP card delivers stable gigabit connectivity.

Muneeb Raza

Reliable for aggregation use.

Jasper Holt

Ports remained stable under load.

Naeem Siddiq

Easy deployment.

Chris Nolan

Consistent performance.

Faisal Karim

Meets network requirements.

Questions & Answers

What is the E8KE-X-101-24XGE-SFP Flexible Card?

The E8KE-X-101-24XGE-SFP is a 24-port 100/1000Base-X SFP flexible card designed for high-density fiber connectivity in enterprise and data center switches.

Which chassis models support the E8KE-X-101-24XGE-SFP module?

This module is compatible with the P101 series chassis that accept 1/2-wide line cards and provide two adjacent sub-slots for installation.

What port speeds does the 24XGE-SFP card support?

Each of the 24 ports supports both 100 Mbps and 1 Gbps speeds with auto-negotiation and SFP transceiver modules.

Which SFP transceivers are compatible with this card?

The card supports standard IEEE-compliant 100FX, 1000SX/LX/BX, and CWDM/DWDM SFP transceivers for multimode and single-mode applications.

Related Searches Data Center Firewall Modules

FWCD00L1XX01 FWCD00EFGF01 E8KE-X-LPUF-101 E8KE-X-40-4X10GE-XFP E8KE-X-21-4X10GE-XFP E8KE-X-101-5X10GE-SFP+E8KE-X-101-4X10GE-SFP+SPU-X8X16-B E8KE-X-101-1X40GE-CFP SPU-X8X16-20-O-E8KE SPU-X3-B SPU-X3-20-O-E8KE SPC-IPS-20 SPC-20-O-E8KE FWCD0LPUND01 FWCD0LPUKD01

E8KE-X-101-24XGE-SFP Overview

E8KE-X-101-24XGE-SFP Specifications

Width

17.5 inches

Height

1.75 inches

Depth

10 inches

Weight

3 lbs

Power Consumption

50W

Expansion Slots

N/A

Interface Ports

SFP+

Form Factor

Modular

Operating Temperature

0 to 70°C

Storage Temperature

-40 to 85°C

Input Voltage

3.3V

Connector Type

SFP+

Product Type

Network Module / Network Card

Supported Protocols

TCP/IP

Max Speed

10Gbps

Supported Features

Auto-negotiation / Jumbo Frames / QoS

Data Rate

10Gbps

Module Type

SFP+

Compatibility

Cisco / Juniper / Arista / Dell / HP

Product Name

E8KE-X-101-24XGE-SFP

Product Comparison Table

	E8KE-X-101-24XGE-SFP	FWCD00EFGF01	E8KE-X-LPUF-101	FWCD0LPUND01	SPU-X3-20-O-E8KE
Product Type	Network Module / Network Card	Network Card	Network Card	Network Card	Network Module / Network Card
Module Type	SFP+	Fibre Channel	Ethernet	Fibre Channel	SFP+
Data Rate	10Gbps	10Gbps	10G	10Gbps	10G
Connector Type	SFP+	SFP+	SFP+	SFP+	SFP+
Supported Protocols	TCP/IP	Fibre Channel	TCP/IP	Fibre Channel	TCP/IP
Form Factor	Modular	PCIe	PCIe	PCIe	Modular
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V / 5V	3.3V
Compatibility	Cisco / Juniper / Arista / Dell / HP	Cisco / Dell / HP	Cisco, Dell, HP	Dell / HP	Cisco / Juniper / Arista / Dell / HP
Max Speed	10Gbps	10Gbps	10Gbps	10Gbps	10Gbps
Supported Features	Auto-negotiation / Jumbo Frames / QoS	N/A	Auto-negotiation, Wake-on-LAN, Jumbo Frames, QoS	Auto-negotiation / Jumbo Frames / QoS	Auto-negotiation / Wake-on-LAN / Jumbo Frames / QoS
Power Consumption	50W	N/A	15W	7W	N/A
Interface Ports	SFP+	SFP+	Ethernet	Fibre Channel	SFP+
Expansion Slots	N/A	PCIe	PCIe	NIM	N/A
Product Name	E8KE-X-101-24XGE-SFP	FWCD00EFGF01 Fibre Channel Card	E8KE-X-LPUF-101 High Performance Ethernet Module	FWCD0LPUND01 Fibre Channel Accelerator Card	SPU-X3-20-O-E8KE High-Speed Network Module
Height	1.75 inches	N/A	1.5 inches	1.0 inches	N/A
Width	17.5 inches	N/A	3.4 inches	4.4 inches	N/A
Depth	10 inches	N/A	0.6 inches	0.5 inches	N/A
Weight	3 lbs	N/A	0.5 lbs	1.2 lbs	N/A

Questions & Answers

What is the E8KE-X-101-24XGE-SFP Flexible Card?

The E8KE-X-101-24XGE-SFP is a 24-port 100/1000Base-X SFP flexible card designed for high-density fiber connectivity in enterprise and data center switches.

Which chassis models support the E8KE-X-101-24XGE-SFP module?

This module is compatible with the P101 series chassis that accept 1/2-wide line cards and provide two adjacent sub-slots for installation.

What port speeds does the 24XGE-SFP card support?

Each of the 24 ports supports both 100 Mbps and 1 Gbps speeds with auto-negotiation and SFP transceiver modules.

Which SFP transceivers are compatible with this card?

The card supports standard IEEE-compliant 100FX, 1000SX/LX/BX, and CWDM/DWDM SFP transceivers for multimode and single-mode applications.
