Name: S7706 Basic Engine POE Bundle(Including PoE Assembly Chassis,SRUA Main Board*1,800W AC Power*2,2200W AC Power*1,POE Interface Card*2,2-Port 10GBASE-X Interface Card(EA,XFP)*1)
Brand: Huawei
SKU: ES1B06SACA0P
Rating: 4.7 (6 reviews)

Question 1

What is the ES1B06SACA0P - S7706 Basic Engine POE Bundle?

Accepted Answer

The ES1B06SACA0P – S7706 Basic Engine POE Bundle is a high-performance network engine kit that includes a PoE assembly chassis, SRUA main board, two 800W AC power supplies, one 2200W AC power supply, two PoE interface cards and a 2-port 10GBASE-X interface card.

Question 2

Which power supplies are included in this POE bundle?

Accepted Answer

This bundle provides redundancy and high capacity with two 800W AC modules and one 2200W AC module, delivering up to 3800W of total power.

Question 3

How many PoE interface cards come with the S7706 bundle?

Accepted Answer

The S7706 Basic Engine POE Bundle includes two PoE interface cards for high-density Power over Ethernet deployments.

Question 4

What is the function of the SRUA main board?

Accepted Answer

The SRUA main board is the core processing unit that handles system logic, traffic forwarding and feature management within the S7706 chassis.

Question 5

What capabilities does the 2-port 10GBASE-X interface card provide?

Accepted Answer

The 2-port 10GBASE-X card delivers two independent 10GbE fiber connections via SFP+ or XFP modules for high-speed uplink or aggregation links.

Question 6

What is the total PoE power budget of the S7706 bundle?

Accepted Answer

The total PoE power budget is determined by the installed AC modules. With 3800W available, you can allocate up to 3800W for PoE powered devices.

Question 7

Which PoE standards are supported by this bundle?

Accepted Answer

This bundle supports IEEE 802.3af, 802.3at and 802.3bt standards, delivering up to 90W per port on compatible interface cards.

Question 8

How do I install the S7706 Basic Engine POE Bundle?

Accepted Answer

Mount the PoE chassis in a standard 19-inch rack, insert the SRUA board and interface cards into their slots, connect the AC power modules and power up the unit.

Question 9

What form factor does the PoE assembly chassis use?

Accepted Answer

The PoE assembly chassis is a 2U rack-mountable enclosure designed for enterprise and data-center environments.

Question 10

What cooling and thermal design does the chassis employ?

Accepted Answer

The chassis features front-to-back airflow with redundant fans for efficient heat dissipation in high-density PoE deployments.

Question 11

Which management interfaces are available on the S7706 engine?

Accepted Answer

Management options include a web GUI, CLI via console/SSH, and SNMP v2/v3 for seamless integration into network management systems.

Question 12

Is the S7706 bundle compatible with third-party PoE devices?

Accepted Answer

Yes, the S7706 Basic Engine POE Bundle adheres to industry standards IEEE 802.3af/at/bt, ensuring compatibility with compliant IP cameras, access points and VoIP phones.

Question 13

What environmental specifications apply to this PoE bundle?

Accepted Answer

The S7706 bundle operates between 0°C and 45°C with up to 90% non-condensing humidity, meeting typical data-center requirements.

Question 14

What certifications does the ES1B06SACA0P hold?

Accepted Answer

This product is CE, FCC and RoHS compliant, and it meets UL safety standards for enterprise network equipment.

Question 15

How can I extend my warranty and support for the S7706 bundle?

Accepted Answer

You can purchase extended hardware warranties and software support contracts through our authorized service partners or your account representative.

Question 16

What are the key use cases for the S7706 Basic Engine POE Bundle?

Accepted Answer

It’s ideal for powering and managing high-density PoE deployments such as IP surveillance, wireless LAN aggregations and VoIP telephony in campus or data-center networks.

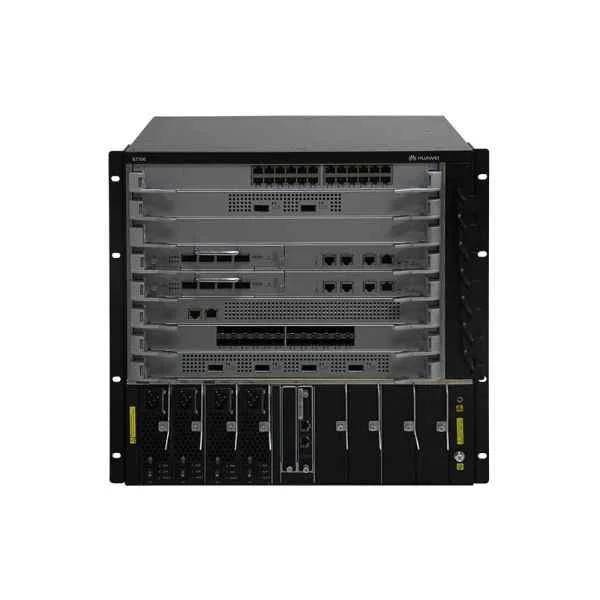

	ES1B06SACA0P	ES0B00770600	ES0ZB12ACS00	Huawei S7712 PoE Chassis with 2800W AC Power, 12200W AC Power, 2*POE Interface Card (ES1Z12SPAZ00)	Huawei S7706 non-PoE Chassis with 2SRUA, 2AC Power (ES0Z1B06ACS0)
Depth	11 inches	12 inches	16.2 inches	N/A	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Flash Memory	64 MB	64 MB	256 MB	N/A	N/A
Form Factor	Rack-mount	Rack-mount	Rack-mount	Chassis	Chassis
Height	1.75 inches	1 inches	3.5 inches	N/A	N/A
IOS	IP Services	LAN Base	IP Services	IP Services	N/A
Interface Ports	10/100/1000	10/100/1000	10/100/1000	10/100/1000	N/A
Layer Supported	Layer 2	Layer 2 / Layer 3	Layer 2 / Layer 3	Layer 2 / Layer 3	Layer 2 / Layer 3
Manageable	Managed	Managed	Managed	Managed	Managed
Manufacturer Part Number	ES1B06SACA0P	ES0B00770600	ES0ZB12ACS00	Huawei S7712 PoE Chassis with 2800W AC Power, 12200W AC Power, 2*POE Interface Card (ES1Z12SPAZ00)	Huawei S7706 non-PoE Chassis with 2SRUA, 2AC Power (ES0Z1B06ACS0)
Media Type Supported	Twisted Pair / Fiber	Twisted Pair / Fiber	Combo	Twisted Pair / Fiber	N/A
Memory	256 MB	256 MB	512 MB	N/A	N/A
Number of Downlink Ports	24 Ports	24 Ports	24 Ports	N/A	N/A
Number of Ethernet Ports	24–48 Ports	24–48 Ports	24–48 Ports	N/A	N/A
POE Support	POE+	POE+	POE+	POE+	Non POE
Port/Expansion Slot Details	2 expansion slots	N/A	Supports up to 4 expansion slots for additional modules	2 POE Interface Card slots	N/A
Power Consumption	150W	150W	350 W	N/A	N/A
Power Source	AC Power Supply	Redundant Power Supply / AC Power Supply	Redundant Power Supply / AC Power Supply	AC Power Supply	Redundant Power Supply
Product Name	Enterprise Series Switch ES1B06SACA0P	Enterprise Series Switch ES0B00770600	Catalyst ES0ZB12ACS00 Enterprise Switch	Huawei S7712 PoE Chassis with 2800W AC Power, 12200W AC Power, 2*POE Interface Card (ES1Z12SPAZ00)	Huawei S7706 non-PoE Chassis with 2SRUA, 2AC Power (ES0Z1B06ACS0)
Product Type	Switch	Switch	Switch	Switch	Switch
Rack Units	1 RU	1 RU	2 RU	4 RU	4 RU
Redundant Power Supply Supported	Yes	Yes	Yes	Yes	Yes
SFP Ports	4 SFP Ports	4 SFP Ports	12 SFP Ports	N/A	N/A
Switching Capacity	128 Gbps	56 Gbps	320 Gbps	N/A	N/A
Switching Capacity with Stacking	256 Gbps	112 Gbps	640 Gbps	N/A	N/A
Uplink Configuration	10G	1G	10G	1G / 10G / 40G	N/A
Weight	8 lbs	7 lbs	28 lbs	N/A	N/A
Width	17.5 inches	17 inches	17.5 inches	N/A	N/A
