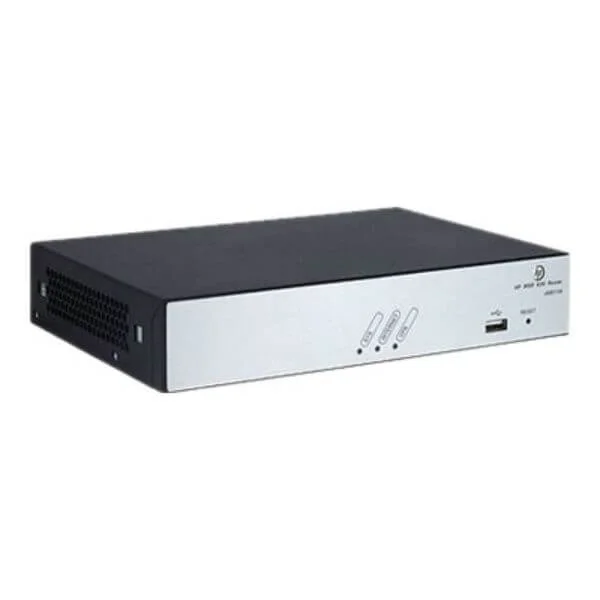

JG514B

Specification Of JG514B

General
Device Type	Router - 4-port switch (integrated)
Enclosure Type	Desktop
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance	Throughput: up to 300 Kpps | Encryption throughput: up to 160 Mbps
Capacity	IPv4 routing table entries: 10000 | IPv6 routing table entries: 5000 | VPN tunnels: up to 100 | IPv4 forwarding table entries: 10000 | IPv6 forwarding table entries: 5000
Network / Transport Protocol	TCP/IP, L2TP, RSVP, NTP, PPPoE
Routing Protocol	OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, TFTP, CLI
Encryption Algorithm	Triple DES, MD5, AES, TLS
Authentication Method	RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features	Firewall protection, DHCP support, NAT support, VPN support, BOOTP support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, port isolation
Compliant Standards	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, EN55024, EN55022 Class B, ICES-003 Class B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 300 386, CAN/CSA-C22.2 No. 60950-1
Processor	1 x 533 MHz
RAM	256 MB DDR3 SDRAM
Flash Memory	128 MB
Expansion / Connectivity
Interfaces	LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | Serial: 1 x | USB: 1 x
Power
Power Device	External power adapter
Power Consumption Operational	24 Watt
Miscellaneous
Pricing Type	Remarketed
Dimensions & Weight
Width	11.8 in
Depth	7.9 in
Height	1.7 in
Weight	5.95 lbs
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	5 - 90% (non-condensing)
