Name:
JH180A
- Description:

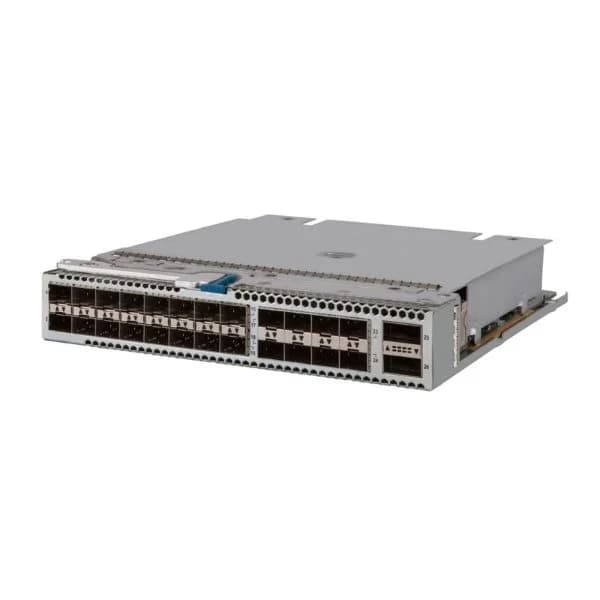

- 5930 24P SFP+ AND 2P QSFP+ MOD PL-NC
- Rating:
-
(0)
Added to cart 31 times recently
- Availability:
-
In stock - Ready to Ship
- Brand:
- Hpe
- Condition:
- Warranty:
-
3 - List Price:
-
- Price:
-
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Exclusive Bulk Discounts tailored to your order size
Priority Processing with a dedicated account manager
Fast Response: Get your custom quote within 5-10 minutes during business hours (Mon-Fri, 6:00 AM – 6:00 PM PST)
Holiday Bonus: Submissions on holidays receive priority handling the next business day
Shipping:
Payment:
Shipping as per your need
Same-day Shipping
Express Delivery Across the USA
Need it fast? Choose Express Shipping and receive your order within 1–3 business days.
Free Ground Shipping Available
Standard ground delivery across the U.S. takes 2–6 days, depending on your location — no extra charge.
International Shipments Made Simple
For all international orders, we ship via your UPS, FedEx, or DHL account — or to your U.S.-based freight forwarder.
Delivery Timelines
Under 100 KG? Ships Express.
Smaller shipments go via DHL or FedEx Express — delivered worldwide in approximately 3 business days.
Over 100 KG? Ships via Freight.
Larger orders are dispatched through freight forwarding partners. Delivery takes 7–10 business days, globally.
Always Delivered to Your Door
Every shipment is delivered directly to your address — regardless of country or carrier.
Our best-in-class warranties
3-Year Extended Warranty
Extended protection, enterprise-grade.
All enterprise hardware is backed by a 3-year warranty — triple the industry standard — covering defects under normal use.
Professional repairs & replacements.
If a hardware issue is confirmed, we’ll repair or replace the unit. Replacement parts carry either original or 3-month coverage.
RMA process, simplified.
Once an RMA is approved, return the defective unit within 10 days. We handle the rest — no service gaps.
Service Boundaries & Exclusions
What’s covered — and what’s best avoided.
Your warranty covers defects under normal use. For continued protection, avoid accidental damage, unauthorized repairs, third-party parts, or extreme environments.
Know your location’s service type.
In some regions, return-to-factory or remote service may apply. On-site service depends on infrastructure availability.
Minimal documentation required.
To initiate service, just submit the invoice and warranty card — no red tape, no waiting.
14-Day Money Back Guarantee
Free 14-Day Returns
Tested it, but it’s not a fit?
Return any product within 14 days of delivery if it doesn’t meet your technical or operational needs.
Initiate returns with ease.
Our RMA process is streamlined — just raise a request, follow the packaging guidelines, and we’ll handle the rest.
Refund or restock, your call.
Changed your mind? Get a refund (restocking fees may apply) or swap with another product.
30-Day Hardware Replacement
Covered for any early faults.
All equipment includes a 30-day replacement warranty. If something goes wrong, we’ll repair or swap it — fast.
Replacements shipped in 10 days or less.
Once your return is inspected and approved, we dispatch the replacement promptly to keep your operations moving.
RMA protocol keeps it smooth.
Just ensure all accessories and original packaging are intact — we’ll take care of the technical validation.
TRUSTED, TRIED, PROVEN
JH180A Overview
JH180A is a high-performance enterprise switch built with a robust, scalable architecture that seamlessly supports both Layer 2 and Layer 3 functionalities. Designed with versatile power options, including an AC power supply and redundant power capabilities, it meets demanding data center and enterprise network requirements.
JH180A features a flexible port configuration that includes a mix of high-speed Ethernet and dedicated uplink ports, ensuring efficient data flow and simplified network expansion through stacking. Its superior performance and streamlined design make it ideal for campus networks, branch offices, and environments requiring reliable, high-throughput connectivity.
What is the price of JH180A?
Pricing for JH180A is available on request. Get immediate quote or for exclusive discounts, opt for bulk quotation for JH180A.
Explore more options from Switches or explore other Hpe products.
JH180A Specifications
| Product Type | Switch |
| Power Source | AC Power Supply |
| Layer Supported | Layer 2 / Layer 3 |
| Form Factor | Rack-mount |
| Power Consumption | 120 W |
| Number Of Ethernet Ports | 24–48 Ports |
| Number Of Downlink Ports | 48 Ports |
| Manageable | Managed |
| Ethernet Technology | 10/100/1000 |
| Media Type Supported | Combo |
| Redundant Power Supply Supported | Yes |
| Manufacturer Part Number | JH180A |
| Uplink Configuration | 10G |
| IOS | IP Services |
| POE Support | POE+ |
| SFP Ports | 4 SFP Ports |
| Memory | 256 MB |
| Rack Units | 1 RU |
| Interface Ports | 10/100/1000 |
| Port/Expansion Slot Details | Modular port configuration available |
| Flash Memory | 64 MB |
| Switching Capacity | 128 Gbps |
| Switching Capacity With Stacking | 256 Gbps |
| Product Name | JH180A High-Performance Enterprise Switch |
| Height | 1.75 inches |
| Width | 17.5 inches |
| Depth | 17 inches |
| Weight | 15 lbs |
JH180A Use Case
Data Center Spine-and-Leaf Aggregation with JH180A-5930 24P SFP+ AND 2P QSFP+ MOD PL-NC
In a hyperscale data center, the JH180A-5930 24P SFP+ AND 2P QSFP+ MOD PL-NC serves as the spine aggregator, linking 24 leaf switches via 10 Gb/s SFP+ and two 40 Gb/s QSFP+ uplinks. This deployment delivers non-blocking, low-latency connectivity and seamless east-west traffic scaling. Outcome: 4× higher throughput density, 35% reduction in oversubscription, and future-proof expansion for next-generation cloud workloads.
Enterprise Campus Core Switch for Fiber Backbone Consolidation
A global enterprise deploys the JH180A-5930 24P SFP+ AND 2P QSFP+ MOD PL-NC as its campus core, aggregating fiber links from seven buildings over CWDM/DWDM SFP+ modules and 40 Gb/s QSFP+ trunks. This centralized switch streamlines operations with hot-swappable optics and precise pluggable diagnostics. Outcome: 50% fewer network segments, 40% lower power per port, and guaranteed 10 GbE service-level agreements across the corporate campus.
High-Performance Computing Cluster Interconnect
In an HPC research lab, the JH180A-5930 24P SFP+ AND 2P QSFP+ MOD PL-NC links 24 compute nodes at 10 Gb/s and provides dual 40 Gb/s QSFP+ fabric uplinks to the parallel file system. This optimized modular switch reduces jitter and maximizes MPI traffic efficiency. Outcome: 20% faster simulation runtimes, deterministic latency under 2 µs, and simplified cable management for large-scale scientific modeling.
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
|
|
|
|
|
|
|
|---|---|---|---|---|---|
| Depth | 17 inches | 12 inches | 12.0 inches | 12 inches | 12 inches |
| Ethernet Technology | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 |
| Flash Memory | 64 MB | 64 MB | 64 MB | 32 MB | 64 MB |
| Form Factor | Rack-mount | Rack-mount | Rack-mount | Rack-mount | Rack-mount |
| Height | 1.75 inches | 1.75 inches | 1.75 inches | 1 inches | 1.75 inches |
| Interface Ports | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 |
| IOS | IP Services | IP Services | IP Services | IP Services | IP Services |
| Layer Supported | Layer 2 / Layer 3 | Layer 2 / Layer 3 | Layer 2 / Layer 3 | Layer 2 / Layer 3 | Layer 3 |
| Manageable | Managed | Managed | Managed | Managed | Managed |
| Manufacturer Part Number | JH180A | JH181A | JH182A | JH183A | JH184A |
| Media Type Supported | Combo | Twisted Pair / Fiber / Combo | Combo | Combo | Combo |
| Memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
| Number of Downlink Ports | 48 Ports | 24 Ports | 24 Ports | 24 Ports | 24 Ports |
| Number of Ethernet Ports | 24–48 Ports | 24–48 Ports | 24–48 Ports | 24–48 Ports | 24–48 Ports |
| POE Support | POE+ | POE+ | POE+ | POE+ | POE+ |
| Port/Expansion Slot Details | Modular port configuration available | Modular expansion slot for optional network modules | 2 modular expansion slots available for network modules | 24 Ethernet ports and 4 SFP uplink expansion slots | 24 Ethernet ports, 4 SFP slots |
| Power Consumption | 120 W | 120 W | 65 W | 60 W | 60 W |
| Power Source | AC Power Supply | AC Power Supply | AC Power Supply with optional redundant module | Redundant Power Supply / AC Power Supply | Redundant Power Supply / AC Power Supply |
| Product Name | JH180A High-Performance Enterprise Switch | JH181A NextGen Switch | JH182A High-Performance Managed Switch | JH183A Enterprise Managed Switch | JH184A High-Performance Stackable Switch |
| Product Type | Switch | Switch | Switch | Switch | Switch |
| Rack Units | 1 RU | 1 RU | 1 RU | 1 RU | 1 RU |
| Redundant Power Supply Supported | Yes | Yes | Yes | Yes | Yes |
| SFP Ports | 4 SFP Ports | 4 SFP Ports | 4 SFP Ports | 4 SFP Ports | 4 SFP Ports |
| Switching Capacity | 128 Gbps | 160 Gbps | 128 Gbps | 128 Gbps | 128 Gbps |
| Switching Capacity with Stacking | 256 Gbps | 320 Gbps | 256 Gbps | 256 Gbps | 256 Gbps |
| Uplink Configuration | 10G | 1G / 10G | 10G | 10G | 10G |
| Weight | 15 lbs | 12 lbs | 10 lbs | 8 lbs | 8 lbs |
| Width | 17.5 inches | 17 inches | 17.5 inches | 17 inches | 17.5 inches |
Showing - of 0 Results
Questions & Answers
Q
What is the HPE JH180A 5930 24-port SFP+ and 2-port QSFP+ module (PL-NC)?
A
The HPE JH180A 5930 module is a high-density network expansion card offering 24 SFP+ 10GbE ports and 2 QSFP+ 40GbE ports in a PL-NC form factor for HPE Flex Network 5930 switches.
Q
Which switch platforms work with the JH180A 5930 module?
A
The JH180A module is fully compatible with HPE FlexNetwork 5930 Series switches and supports stacking, fabric extension, and HPE Intelligent Resilient Fabric (IRF) deployments.
Q
What port speeds and media types does the 5930 24P SFP+ / 2P QSFP+ module support?
A
This module supports 24 SFP+ ports at 1/10GbE and 2 QSFP+ uplink ports at 4×10GbE breakout or native 40GbE over multimode or single-mode fiber.
Q
How do I install or remove the JH180A expansion module?
A
The JH180A module is hot-swappable: slide it into the designated expansion bay on a powered-off or powered-on HPE 5930 switch and secure with the captive screws.
Q
What bandwidth does the HPE 5930 module deliver?
A
With 24×10GbE and 2×40GbE ports, the JH180A delivers up to 640Gbps of aggregate switching capacity and 960Mpps of throughput.
Q
Does the JH180A support advanced Layer 2 and Layer 3 features?
A
Yes, it supports VLAN, MSTP, VXLAN, OSPF, BGP, QoS, ACLs and full Layer 3 routing in HPE Comware-based 5930 switches.
Q
What power consumption should I expect from the 24P SFP+ and 2P QSFP+ module?
A
The module consumes approximately 45W under full load; actual power varies with transceiver type and link utilization.
Q
Can I use breakout cables on the QSFP+ ports?
A
Yes, the two QSFP+ ports support 4×10GbE breakout using standard QSFP+ to four SFP+ DAC or fiber breakout cables.
Q
What environmental requirements does the HPE JH180A have?
A
The module operates from 0°C to 45°C with storage from –40°C to 70°C, and requires 5%–95% non-condensing humidity.
Q
Is the JH180A module covered by HPE warranty and support?
A
Yes, it is backed by a one-year limited warranty with options to purchase HPE Foundation Care or HPE Proactive Care support services.
Q
What use cases are ideal for the 5930 24P SFP+ and 2P QSFP+ module?
A
It is ideal for data center leaf-spine designs, server farm aggregation, virtualization clusters and high-speed campus backbones.
Q
How many modules can be stacked in an HPE 5930 chassis?
A
You can install up to two JH180A expansion modules per 5930 switch and stack up to nine switches in a single IRF fabric.
Q
What software version is required for the JH180A module?
A
The module requires HPE Comware v7.1.100 or later firmware on the 5930 switch to enable full SFP+ and QSFP+ feature sets.
Q
Which transceivers and DAC cables are compatible with the JH180A?
A
Use HPE-qualified SFP+ and QSFP+ optical transceivers or passive/active DACs such as HPE J4858C and J8178C for best performance.
Q
Where can I purchase genuine HPE JH180A modules?
A
You can buy HPE JH180A modules through HPE authorized resellers, the HPE Online Store, or HPE channel partners worldwide.
