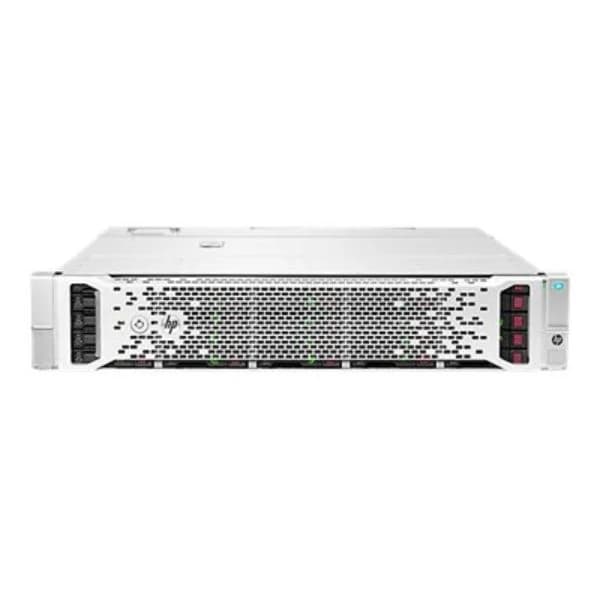

HP D3700 300GB 12G 10K SAS SC 7.5TB Bndl
FEATURED DEAL
Name:
M0S83A
- Description:
- HP D3700 300GB 12G 10K SAS SC 7.5TB Bndl
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Hpe
- Condition:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
M0S83A Overview
M0S83A is a high-performance SAN storage system featuring an 8‐bay drive enclosure that supports a comprehensive range of drive types including SATA HDD, SAS HDD, SATA SSD, and NVMe SSD, delivering a total storage capacity of up to 1 PB. It offers robust RAID support with RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 configurations, all powered by an Intel Xeon 8‐core processor paired with 16 GB of pre-installed DDR4 memory that can be expanded to 64 GB.
M0S83A comes equipped with versatile connectivity options such as USB 3.2 and 10GbE Ethernet ports, along with dedicated Fibre Channel support for seamless network integration. Designed with expansion support, redundant 750W power supplies, and active cooling for optimal thermal management, this storage solution is ideally suited for SMB backup, enterprise data centers, virtualization environments, and media server applications.
M0S83A price is is available on request. Get immediate quote.
Request bulk order quote for M0S83A for additional pricing. Browse the full Hpe Nas Storeeasy Storages series or explore all Hpe products.
M0S83A Specifications
- Width
- 17
- Depth
- 28
- Height
- 3.5
- Form Factor
- Rackmount
- Hot-Swap Support
- Yes
- Power Supply
- Redundant
- Cooling
- Active
- Virtualization Ready
- Yes
- Power Supply Wattage
- 750W
- LAN Ports
- 4
- RAID Support
- RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10
- Weight
- 40
- RAM Type
- DDR4
- Max RAM Capacity
- 64 GB
- Product Type
- Storage System
- Storage Type
- SAN
- Supported Drive Types
- Mixed
- Max Supported Capacity
- 1 PB
- CPU Type
- Intel Xeon
- CPU Cores
- 8
- Installed RAM
- 16 GB
- Network Ports
- 10GbE
- USB Ports
- USB 3.2
- Expansion Support
- Yes
- Operating System
- Custom OS
- Snapshot Support
- Yes
- Cloud Sync Support
- Yes
- iSCSI Support
- Yes
- Surveillance Support
- No
- Use Case
- Enterprise Data Center
- Bay Count
- 8-bay
- Product Name
- M0S83A Enterprise SAN Storage System
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| M0S83A |  QK703A |  E7W31A |  M0S80A |  Q2P72A | |
|---|---|---|---|---|---|
| Product Type | Storage System | Storage System | Storage System | Storage System | Storage System |
| Storage Type | SAN | NAS | NAS | NAS | SAN |
| Form Factor | Rackmount | Rackmount | Rackmount | Rackmount | Rackmount |
| Bay Count | 8-bay | 12-bay | 8-bay | 8-bay | 12-bay |
| Supported Drive Types | Mixed | Mixed | SATA HDD / SAS HDD / SATA SSD / NVMe SSD | SATA HDD / SAS HDD / SATA SSD / NVMe SSD | Mixed |
| Hot-Swap Support | Yes | Yes | Yes | Yes | Yes |
| Max Supported Capacity | 1 PB | 256 TB | 512 TB | 512 TB | 1 PB |
| RAID Support | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 |
| CPU Type | Intel Xeon | Intel Xeon | Intel Xeon | Intel Xeon | Intel Xeon |
| CPU Cores | 8 | 8 | 8 | 8 | 8 |
| Installed RAM | 16 GB | 16 GB | 16 GB | 16 GB | 16 GB |
| Max RAM Capacity | 64 GB | 64 GB | 64 GB | 64 GB | 64 GB |
| RAM Type | DDR4 | ECC DDR4 | DDR4 | ECC DDR4 | ECC DDR4 |
| Network Ports | 10GbE | 10GbE | 10GbE | 1GbE | 10GbE |
| LAN Ports | 4 | 4 | 2 | 2 | 4 |
| USB Ports | USB 3.2 | USB 3.2 | USB 3.2 | USB 3.0 | USB 3.2 |
| Expansion Support | Yes | Yes | Yes | Yes | Yes |
| Cooling | Active | Redundant Fan | Active | Active | Redundant Fan |
| Power Supply | Redundant | Redundant | Redundant | Redundant | Redundant |
| Power Supply Wattage | 750W | 750W | 350W | 750W | 750W |
| Operating System | Custom OS | Custom OS | Custom OS | Custom OS | Custom OS |
| Snapshot Support | Yes | Yes | Yes | Yes | Yes |
| Cloud Sync Support | Yes | Yes | Yes | Yes | Yes |
| Virtualization Ready | Yes | Yes | Yes | Yes | Yes |
| iSCSI Support | Yes | Yes | Yes | Yes | Yes |
| Surveillance Support | No | No | No | No | No |
| Use Case | Enterprise Data Center | Enterprise Data Center | Enterprise Data Center | SMB / Enterprise Data Center / Virtualization / Media Server | Enterprise Data Center |
| Product Name | M0S83A Enterprise SAN Storage System | QK703A High-Performance Storage System | E7W31A Storage Appliance | M0S80A | Q2P72A Storage System |
| Height | 3.5 | 1.7 inches | 4.5 inches | 3.5 inches | 4 inches |
| Width | 17 | 17.3 inches | 17.5 inches | 17.5 inches | 17 inches |
| Depth | 28 | 25.0 inches | 28 inches | 28 inches | 28 inches |
| Weight | 40 | 35 lbs | 45 lbs | 45 lbs | 30 lbs |
Reviews & Ratings
N
Nathan Ford
5
Reliable option for performance tiers.
J
Julian Knight
5
Stable disk operation.
O
Owen Mercer
4
Good expansion choice.
P
Patrick Sloan
5
Worked well.
Questions & Answers
What does the HP D3700 300GB 12G 10K SAS SC 7.5TB Bundle include?
The HP D3700 300GB 12G 10K SAS SC 7.5TB Bundle includes one HP D3700 2U disk enclosure and twenty-five 300 GB 12 Gb/s 10,000 RPM SAS Small Form Factor drives, providing a total raw capacity of 7.5 TB.
How many drives can the HP D3700 enclosure accommodate?
The HP D3700 enclosure supports up to 25 front-loading 2.5-inch hot-pluggable SAS drives for high-density storage.
What connectivity options does the HP D3700 support?
The HP D3700 offers two external mini-SAS HD (SFF-8644) 12 Gb/s ports for direct attachment to compatible Smart Array controllers.
Which RAID levels are supported on the D3700 bundle?
When paired with an HP Smart Array controller, the D3700 supports RAID 0, 1, 5, 6, 10, 50, and 60 for flexible data protection and performance.
Can I expand capacity beyond 7.5 TB with the D3700?
Yes. You can daisy-chain up to four D3700 enclosures per Smart Array controller for a maximum of 100 drives and expanded capacity.
Is the HP D3700 bundle hot-swappable?
Yes. All drives and dual power supplies are hot-pluggable, enabling non-disruptive replacements and maintenance.
Which HP Smart Array controllers are compatible with the D3700?
The HP D3700 is compatible with Smart Array controllers such as P440, P840, and P24400, supporting 12 Gb/s SAS connectivity.
What management software is included for the D3700?
The bundle includes HP Smart Storage Administrator for intuitive setup, monitoring, and firmware updates via a web-based interface.
What operating systems does the HP D3700 support?
The D3700 is certified for Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise, and VMware ESXi for broad compatibility.
What are the physical dimensions and weight of the D3700 enclosure?
The D3700 measures 88.1 mm (H) x 441 mm (W) x 585 mm (D) and weighs approximately 24 kg when fully populated.
What is the typical power consumption of the D3700 bundle?
Typical idle power draw is 175 W; maximum power consumption under full load is 325 W, with dual 460 W redundant power supplies.
Does the HP D3700 come with redundant power supplies?
Yes. The D3700 includes two hot-pluggable 460 W power supplies configured for full redundancy to ensure continuous uptime.
How do I install and configure the HP D3700 bundle?
Mount the D3700 in a 19" rack, connect SAS cables to your Smart Array controller, power on, then configure volumes via the HP Smart Storage Administrator.
Can the D3700 bundle be used for virtualization workloads?
Yes. With 12 Gb/s SAS throughput and 10K RPM drives, the D3700 delivers the IOPS and capacity required for virtual machine storage.
What warranty and support options are available for the D3700 bundle?
The HP D3700 bundle includes a one-year limited warranty, with optional HP Care Pack upgrades for up to five years of coverage.
Is the HP D3700 bundle suitable for hybrid flash and HDD configurations?
Yes. While the bundle ships with 10K SAS drives, the D3700 supports mixed drive types, including SSDs, for tiered storage deployments.
