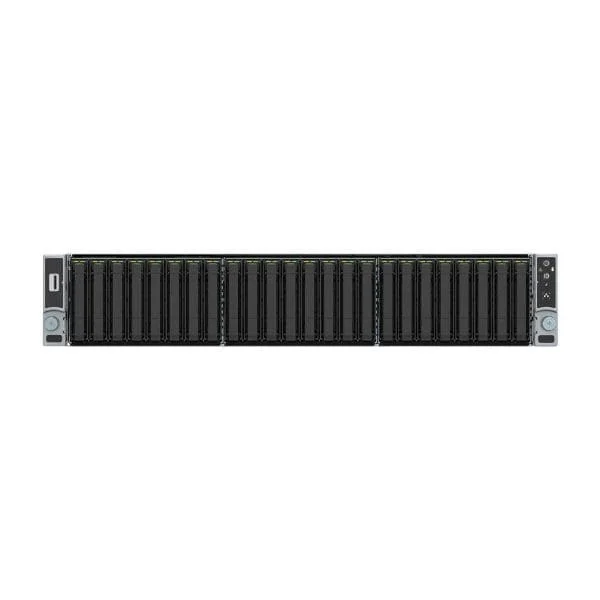

M50CYP2UR312

Specification Of M50CYP2UR312

General
Type	Server
Product Form Factor	Rack-mountable - 2U
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Internal Bays Qty	2
Hot-Swap Bays Qty	12

Processor / Chipset
CPU	No CPU
Max CPU Qty	2
CPU Upgradability	Upgradable
CPU Socket	Socket P4
Chipset Type	Intel C621A

RAM
Installed Size	0 GB / 12 TB (max)
Technology	DDR4 SDRAM
Form Factor	DIMM 288-pin
Slots	32 (Total)
Features	Load-Reduced DIMM (LRDIMM)

Hard Drive
Type	No HDD

Storage Controller
Type	RAID
RAID Level	RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage
Type	No optical drive

Monitor
Monitor Type	None.

Networking
Remote Management Protocol	IPMI 2.0
Remote Management Controller	Intel Baseboard Management Controller (BMC)
Features	Intel Advanced Management Technology

Expansion / Connectivity
Bays	12 (total) / 12 (free) x hot-swap 3.5"
Interfaces	4 x USB 3.0 (1 front, 3 rear) - 1 x USB 2.0 - 2 x serial

Miscellaneous
Included Accessories	Front I/O panel assembly, 16 x DIMM slot blanks, Chassis with Quick Reference Label affixed to top cover, 12 x 3.5" hot-swap drive carriers, Intel Server Board M50CYP2SBSTD, 2U server airduct, 2 x processor carrier clips, 2U Hot-swap backplane spare CYPHSBP2312, 6 x 2U fan kit CYPFAN2UKIT
Cables Included	I2C cable - Power splitter cable

Power
Device Type	Power supply
Installed Qty	0

Manufacturer Warranty
Service & Support	Limited warranty - 3 years

Dimensions & Weight
Width	71.2 cm
Depth	43.9 cm
Height	8.9 cm
