Does the N1524P support IEEE 802.3at and 802.3af standards?

Yes, the N1524P is fully compliant with IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) standards for universal device compatibility.

Can I stack multiple N1524P switches?

Yes, up to six N1524P switches can be stacked using the integrated stacking ports for unified management, single-IP configuration, and 160 Gb/s stack bandwidth.

What is the airflow direction in the N1524P?

The N1524P uses front-to-back (I/O to PSU) airflow to optimize cooling in rack-mount environments.

What power supply configuration does the N1524P use?

The switch includes a fixed internal AC power supply with auto-sensing 100–240 VAC input for global deployment.

How do I manage the N1524P?

Management is via Dell’s intuitive GUI, CLI over SSH/Telnet, SNMP v1/v2c/v3, RMON, and a RESTful API for automation.

What security features are built into the N1524P?

The N1524P offers 802.1X port authentication, DHCP snooping, dynamic ARP inspection, IP source guard, access control lists (ACLs) and RADIUS/TACACS+ support.

What is the switching capacity and throughput?

It delivers 128 Gb/s switching capacity and up to 95.2 Mpps forwarding performance to handle demanding network traffic.

Does the N1524P support advanced Layer 3 routing?

It supports static routing, RIP v1/v2 and limited Layer 3 features, ideal for small networks requiring basic inter-VLAN routing.

What environmental specifications should I know?

Operating temperature ranges from 0 °C to 40 °C, with 10%–90% non-condensing humidity, suitable for standard data-center racks.

What mounting options are available for the N1524P?

The switch ships with rack-mount ears and hardware for 1U 19-inch rack installation or desktop placement using optional rubber feet.

What warranty and support does Dell offer for the N1524P?

Dell provides a limited lifetime warranty on hardware plus 1-year Advanced Exchange Service, with upgradeable ProSupport options.

Which management protocols does the N1524P support?

It supports SNMP v1/2c/3, RMON, LLDP, LLDP-MED, sFlow, and IEEE 802.1AB for automated topology discovery and monitoring.

FEATURED DEAL

Name:

N1524P

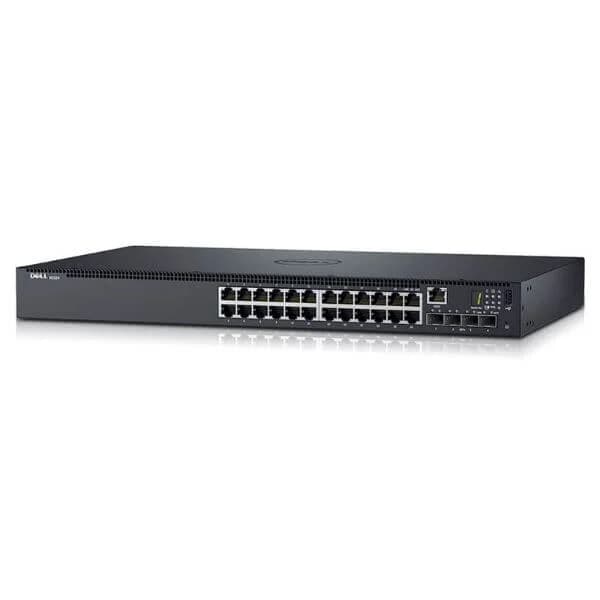

Name: Dell Networking N1524P, PoE+, 24x 1GbE + 4x 10GbE SFP+ Fixed port, stack, airflow from IO to PSU, AC
Brand: Dell
SKU: N1524P
Rating: 4.2 (5 reviews)

Description:: Dell Networking N1524P, PoE+, 24x 1GbE + 4x 10GbE SFP+ Fixed port, stack, airflow from IO to PSU, AC
Rating:: 4.2(5)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Dell
GTIN:: 818254455510
Condition:

Get a Quote

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

n1524p dell networking n1524p, poe+, 24x 1gbe + 4x 10gbe sfp+ fixed port, stack, airflow from io to psu, ac

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

N1524P

Dell Networking N1524P, PoE+, 24x 1GbE + 4x 10GbE SFP+ Fixed...

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

N1524P Overview

N1524P is a high-performance enterprise switch engineered with a robust, modular architecture that supports both Layer 2 and Layer 3 routing. It incorporates flexible power options—including an AC power supply with redundant capability—to ensure continuous operation, and it is designed to meet the demands of modern networking environments with excellent scalability and stacking features.

N1524P delivers a versatile mix of 24 PoE-enabled Ethernet ports and 4 SFP uplink slots, making it ideal for data centers, campus networks, and critical infrastructure settings. Its advanced port configuration, reliable performance, and ease of management provide a seamless solution for networks that require both high bandwidth and future-proof scalability.

N1524P price is is available on request. Get immediate quote.

Request bulk order quote for N1524P for additional pricing. Browse the full Dell Networking N1500 Switches series or explore all Dell products.

N1524P Specifications

Product Type: Switch
Power Source: Redundant Power Supply / AC Power Supply
Layer Supported: Layer 2 / Layer 3
Form Factor: Rack-mount
Power Consumption: 75 W
Number of Ethernet Ports: 12–24 Ports
Number of Downlink Ports: 24 Ports
Manageable: Managed
Ethernet Technology: 10/100/1000
Media Type Supported: Combo
Redundant Power Supply Supported: Yes
Manufacturer Part Number: N1524P
Uplink Configuration: 10G
IOS: LAN Base
POE Support: POE+
SFP Ports: 4 SFP Ports
Memory: 256 MB
Rack Units: 1 RU
Interface Ports: 10/100/1000
Port/Expansion Slot Details: 24 PoE-enabled Ethernet ports and 4 SFP uplink slots
Flash Memory: 64 MB
Switching Capacity: 128 Gbps
Switching Capacity with Stacking: 256 Gbps
Product Name: N1524P PoE+ Gigabit Switch
Height: 1.75 inches
Width: 17.5 inches
Depth: 11 inches
Weight: 15 lbs

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	N1524P	N1548	N1548P	N1524
Depth	11 inches	12 inches	12 inches	12 inches
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Flash Memory	64 MB	64 MB	64 MB	256 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	1.75 inches	1.75 inches	1 inches	1 inch
IOS	LAN Base	LAN Lite	LAN Base	IP Lite
Interface Ports	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Layer Supported	Layer 2 / Layer 3	Layer 2	Layer 2	Layer 2 / Layer 3
Manageable	Managed	Managed	Managed	Managed
Manufacturer Part Number	N1524P	N1548	N1548P	N1524
Media Type Supported	Combo	Twisted Pair	Twisted Pair	Combo
Memory	256 MB	256 MB	256 MB	512 MB
Number of Downlink Ports	24 Ports	48 Ports	48 Ports	24 Ports
Number of Ethernet Ports	12–24 Ports	24–48 Ports	24–48 Ports	24–48 Ports
POE Support	POE+	POE	POE+	POE+
Port/Expansion Slot Details	24 PoE-enabled Ethernet ports and 4 SFP uplink slots	48 Gigabit Ethernet ports, 4 SFP uplink ports	Fixed configuration with integrated PoE and uplink module	24 Gigabit Ethernet ports with 4 SFP uplink ports
Power Consumption	75 W	75 W	50 W	150W
Power Source	Redundant Power Supply / AC Power Supply	AC Power Supply	AC Power Supply	Redundant Power Supply / AC Power Supply
Product Name	N1524P PoE+ Gigabit Switch	Cisco Catalyst N1548	N1548P PoE Managed Switch	N1524 High-Performance Stackable Switch
Product Type	Switch	Switch	Switch	Switch
Rack Units	1 RU	1 RU	1 RU	1 RU
Redundant Power Supply Supported	Yes	No	No	Yes
SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports
Switching Capacity	128 Gbps	104 Gbps	104 Gbps	52 Gbps
Switching Capacity with Stacking	256 Gbps	208 Gbps	208 Gbps	104 Gbps
Uplink Configuration	10G	1G	1G	1G / 10G
Weight	15 lbs	18 lbs	20 lbs	15 lbs
Width	17.5 inches	17.5 inches	17.5 inches	17 inches

Reviews & Ratings

Trevor Simmons

PoE power delivery is consistent. Phones and access points run without issues.

Shahzaib Ali

Stacking and PoE worked out of the box. Very convenient.

Luca Romano

Reliable switch for mixed data and power workloads.

Dennis Fowler

Clean airflow design and solid performance.

Imtiaz Ahmed

Good choice for office networks needing PoE.

Questions & Answers

What is the Dell Networking N1524P switch?

The Dell Networking N1524P is a fixed-port, Layer 2 Ethernet switch with 24 PoE+ 1 GbE ports and 4 10 GbE SFP+ uplinks designed for small to medium enterprise networks.

How many PoE+ ports does the N1524P support?

The N1524P provides 24 IEEE 802.3at/af PoE+ ports, delivering up to 30 W per port for IP phones, wireless access points, and cameras.

What uplink options are available on the N1524P?

It features 4 fixed 10 GbE SFP+ uplink ports for high-speed aggregation and expansion to core switches or data center fabrics.

What is the maximum PoE power budget?

The switch offers a total PoE+ power budget of 370 W, enabling simultaneous support for high-powered end devices.

Related Searches Dell Networking N1500 Switches
