Name:

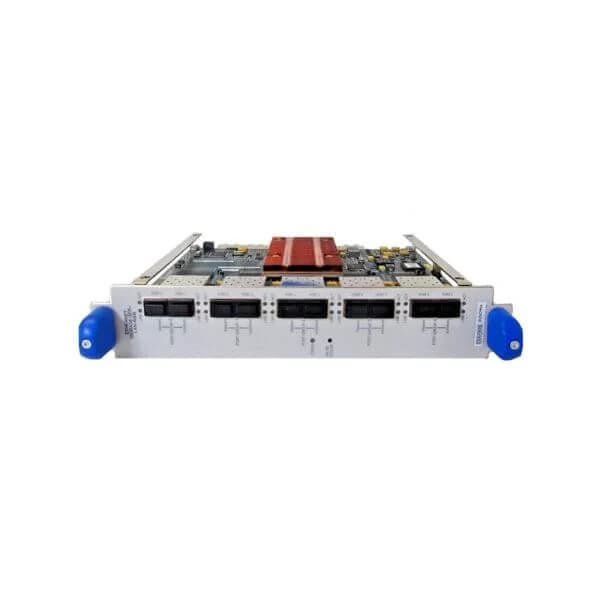

PD-5-10XGE-SFPP
- Description:
- Type 4 PIC with dual mode operation. 5 (line-rate) 10GE ports or 10 (oversubscribed) 10GE ports. With SFP+ optical transceivers sold separately
- Rating:
-
(0)
Added to cart 22 times recently
- Availability:
-
In stock - Ready to Ship
- Brand:
- Juniper
- Condition:
- GTIN:
- 660169704296
- Warranty:
-
3 - List Price:
-
- Price:
-
Quantity:
1
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Exclusive Bulk Discounts tailored to your order size
Priority Processing with a dedicated account manager
Fast Response: Get your custom quote within 5-10 minutes during business hours (Mon-Fri, 6:00 AM – 6:00 PM PST)
Holiday Bonus: Submissions on holidays receive priority handling the next business day
Shipping:
Payment:
Shipping as per your need
Same-day Shipping
Express Delivery Across the USA
Need it fast? Choose Express Shipping and receive your order within 1–3 business days.
Free Ground Shipping Available
Standard ground delivery across the U.S. takes 2–6 days, depending on your location — no extra charge.
International Shipments Made Simple
For all international orders, we ship via your UPS, FedEx, or DHL account — or to your U.S.-based freight forwarder.
Delivery Timelines
Under 100 KG? Ships Express.
Smaller shipments go via DHL or FedEx Express — delivered worldwide in approximately 3 business days.
Over 100 KG? Ships via Freight.
Larger orders are dispatched through freight forwarding partners. Delivery takes 7–10 business days, globally.
Always Delivered to Your Door
Every shipment is delivered directly to your address — regardless of country or carrier.
Our best-in-class warranties
3-Year Extended Warranty
Extended protection, enterprise-grade.
All enterprise hardware is backed by a 3-year warranty — triple the industry standard — covering defects under normal use.
Professional repairs & replacements.
If a hardware issue is confirmed, we’ll repair or replace the unit. Replacement parts carry either original or 3-month coverage.
RMA process, simplified.
Once an RMA is approved, return the defective unit within 10 days. We handle the rest — no service gaps.
Service Boundaries & Exclusions
What’s covered — and what’s best avoided.
Your warranty covers defects under normal use. For continued protection, avoid accidental damage, unauthorized repairs, third-party parts, or extreme environments.
Know your location’s service type.
In some regions, return-to-factory or remote service may apply. On-site service depends on infrastructure availability.
Minimal documentation required.
To initiate service, just submit the invoice and warranty card — no red tape, no waiting.
14-Day Money Back Guarantee
Free 14-Day Returns
Tested it, but it’s not a fit?
Return any product within 14 days of delivery if it doesn’t meet your technical or operational needs.
Initiate returns with ease.
Our RMA process is streamlined — just raise a request, follow the packaging guidelines, and we’ll handle the rest.
Refund or restock, your call.
Changed your mind? Get a refund (restocking fees may apply) or swap with another product.
30-Day Hardware Replacement
Covered for any early faults.
All equipment includes a 30-day replacement warranty. If something goes wrong, we’ll repair or swap it — fast.
Replacements shipped in 10 days or less.
Once your return is inspected and approved, we dispatch the replacement promptly to keep your operations moving.
RMA protocol keeps it smooth.
Just ensure all accessories and original packaging are intact — we’ll take care of the technical validation.
TRUSTED, TRIED, PROVEN
PD-5-10XGE-SFPP Overview
PD-5-10XGE-SFPP is a high-performance 10-Gigabit Ethernet network module featuring SFP+ connectivity designed for seamless integration with routers, switches, and servers. It supports a 10G data rate over a compact Small Form-factor Pluggable design, ensuring fast, reliable connectivity for high-speed networks and data center applications.
Engineered for expanding network capacity and upgrading server interfaces, this module complies with TCP/IP protocols and offers plug-and-play installation. Its ruggedized design and compatibility with industry-leading platforms make PD-5-10XGE-SFPP a robust solution for critical networking environments where performance and reliability are essential.
What is the price of PD-5-10XGE-SFPP?
Pricing for PD-5-10XGE-SFPP is available on request. Get immediate quote or for exclusive discounts, opt for bulk quotation for PD-5-10XGE-SFPP.
Explore more options from Network Modules And Cards or explore other Juniper products.
PD-5-10XGE-SFPP Specifications
| Product Type | Network Module |
| Module Type | SFP+ |
| Data Rate | 10G |
| Connector Type | SFP+ |
| Supported Protocols | TCP/IP, Ethernet |
| Form Factor | Small Form-factor Pluggable |
| Operating Temperature | 0 to 70°C |
| Storage Temperature | -40 to 85°C |
| Input Voltage | 3.3V |
| Compatibility | Cisco, Juniper, Arista, Dell, HP |
| Max Speed | 10Gbps |
| Supported Features | Auto-negotiation, Jumbo Frames, Energy Efficient Ethernet |
| Power Consumption | N/A |
| Interface Ports | SFP+ |
| Expansion Slots | N/A |
| Product Name | PD-5-10XGE-SFPP |
| Height | N/A |
| Width | N/A |
| Depth | N/A |
| Weight | N/A |
PD-5-10XGE-SFPP Use Case
Accelerate Spine-Leaf Data Center Fabric with PD-5-10XGE-SFPP-Type 4 PIC
In a high-density enterprise data center, network architects deploy the PD-5-10XGE-SFPP-Type 4 PIC in dual-mode to support 5 line-rate 10-Gigabit Ethernet links for east-west traffic or scale out to 10 oversubscribed 10GE ports. SFP+ optical transceivers (sold separately) enable hot-swappable connectivity to top-of-rack switches. The result is deterministic throughput, simplified port management and 2× higher spine-leaf aggregate capacity, delivering sub-microsecond latency and predictable performance under peak loads.
Optimize Service-Provider Edge Aggregation with Scalable 10GE Port Density
Telecom and MSP edge POPs leverage the PD-5-10XGE-SFPP-Type 4 PIC to aggregate customer circuits: five line-rate 10GE uplinks for SLA-driven enterprise customers or ten oversubscribed 10GE ports for mixed-demand broadband services. With SFP+ optical transceivers sold separately, operators achieve flexible port allocation, lower CapEx per gigabit and seamless migration from copper to fiber. The outcome is optimized oversubscription ratios, reduced fiber exhaust and improved margin on edge‐to‐core backhaul.
Enable High-Performance Cloud Interconnect and Storage Clustering
Cloud service providers and HPC clusters integrate the PD-5-10XGE-SFPP-Type 4 PIC in dual-mode to deliver dedicated line-rate 10GE links for storage replication or scale to ten oversubscribed ports for mixed tenant traffic. Using high-grade SFP+ optical transceivers (sold separately), this PIC ensures low-jitter, high-availability connectivity between compute racks and object storage arrays. Customers benefit from predictable I/O throughput, minimized packet loss and streamlined optical inventory for elastic scaling.
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
|
|
|
|
|
|
|---|---|---|---|---|---|
| Compatibility | Cisco, Juniper, Arista, Dell, HP | Cisco / Juniper / Arista / Dell / HP | Cisco / Juniper / Dell / HP | Cisco / Juniper / Arista / Dell / HP | Cisco, Juniper, Arista, Dell, HP |
| Connector Type | SFP28 | CFP | SFP+ | RJ-45 | SFP+ |
| Data Rate | 20Gbps | 100G | 10G | 10Gbps | 10G |
| Depth | N/A | N/A | 7.8 inches | 0.5 inches | N/A |
| Expansion Slots | N/A | N/A | N/A | N/A | N/A |
| Form Factor | Modular | N/A | PCIe | PCIe | Small Form-factor Pluggable |
| Height | N/A | N/A | 1.5 inches | 1.5 inches | N/A |
| Input Voltage | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Interface Ports | SFP | Ethernet | SFP+ | Ethernet | SFP+ |
| Max Speed | 20Gbps | 100Gbps | 10Gbps | 10Gbps | 10Gbps |
| Module Type | SFP28 | Ethernet | Ethernet Module | Ethernet | SFP+ |
| Operating Temperature | 0 to 70°C | -40 to 85°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
| Power Consumption | 8W | 15W | 15W | 15W | N/A |
| Product Name | MIC-MACSEC-20GE | PF-1CGE-CFP | PKG-T640-S 10Gbps Ethernet Module | T4K-RED-BNDL | PD-5-10XGE-SFPP |
| Product Type | Network Module / Network Card | Network Module / CFP Transceiver | Network Module / Network Card | Network Module / Network Card | Network Module |
| Storage Temperature | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C |
| Supported Features | Auto-negotiation, Jumbo Frames, QoS | N/A | Auto-negotiation / Jumbo Frames / QoS | Auto-negotiation, Wake-on-LAN, Jumbo Frames, QoS | Auto-negotiation, Jumbo Frames, Energy Efficient Ethernet |
| Supported Protocols | TCP/IP | TCP/IP | TCP/IP | TCP/IP, iSCSI | TCP/IP, Ethernet |
| Weight | N/A | N/A | 0.8 lbs | 0.75 lbs | N/A |
| Width | N/A | N/A | 3.4 inches | 3.0 inches | N/A |
Showing - of 0 Results
Questions & Answers
Q
What is the PD-5-10XGE-SFPP Type 4 PIC with dual mode operation?
A
The PD-5-10XGE-SFPP Type 4 PIC is a modular interface card for Juniper routers offering dual mode operation, allowing either 5 line-rate 10GE ports or 10 oversubscribed 10GE ports for flexible bandwidth management.
Q
How many 10GE ports does the PD-5-10XGE-SFPP support?
A
It supports 5 full-bandwidth 10GE ports in line-rate mode or 10 oversubscribed 10GE ports in oversubscription mode.
Q
What is dual mode operation on the PD-5-10XGE-SFPP?
A
Dual mode lets you configure the PIC for either 5 line-rate 10GE ports with full throughput or 10 oversubscribed 10GE ports with a 2:1 oversubscription ratio via software.
Q
Are SFP+ optical transceivers included with the PD-5-10XGE-SFPP?
A
No, SFP+ optical transceivers are sold separately and must be ordered to populate the 10GE ports.
Q
Which SFP+ transceivers are compatible with the PD-5-10XGE-SFPP?
A
The module supports Juniper-approved SFP+ transceivers including SR, LR, ER, and CWDM variants for fiber runs up to 80 km.
Q
How do I install the PD-5-10XGE-SFPP in my Juniper router?
A
Use the PIC’s hot-swap capability to insert it into an available Type 4 slot, secure the handle, then verify installation with show chassis hardware and show interfaces commands.
Q
What is the aggregate bandwidth of the PD-5-10XGE-SFPP?
A
In line-rate mode it delivers up to 50 Gbps aggregate; in oversubscribed mode it offers up to 100 Gbps aggregate with a 2:1 ratio.
Q
What is the power consumption of the PD-5-10XGE-SFPP?
A
Typical power consumption is 25 W and can reach up to 30 W depending on the installed SFP+ transceivers.
Q
Does the PD-5-10XGE-SFPP support hot-swapping?
A
Yes. The PIC is hot-swappable, allowing insertion or removal without powering down the router.
Q
What oversubscription ratio is available in dual mode?
A
The oversubscribed mode provides a 2:1 ratio, enabling 10 GE interfaces to share bandwidth for cost-effective scaling.
Q
Which Juniper platforms support the PD-5-10XGE-SFPP?
A
It is supported on MX2000, MX240, MX480, MX960 and PTX Series routers equipped with Type 4 PIC slots.
Q
What is the typical latency on the PD-5-10XGE-SFPP 10GE ports?
A
Latency is typically under 3 microseconds per packet, ensuring low-latency performance for demanding applications.
Q
Can the PD-5-10XGE-SFPP be used in service provider networks?
A
Yes. Its high port density and dual mode flexibility make it ideal for both service provider and enterprise edge deployments.
Q
What form factor does the PD-5-10XGE-SFPP use?
A
The module uses the Juniper Type 4 PIC form factor, fitting standard 1RU interface card slots in compatible routers.
Q
How can I troubleshoot link issues on PD-5-10XGE-SFPP ports?
A
Check SFP+ compatibility, verify optical power levels, inspect fiber integrity, and use show interfaces extensive to identify and resolve link errors.
