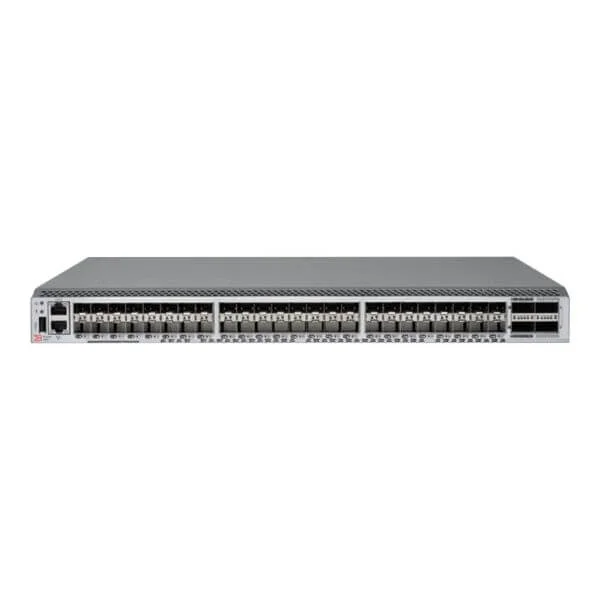

Q0U60A

Specification Of Q0U60A

General
Device Type	Switch - 48 ports - managed - with 48x 32 Gbps SWL SFP+ transceiver
Enclosure Type	Rack-mountable 1U
Subtype	Fibre Channel
Ports	48 x SFP+ + 4 x QSFP+
Performance	Aggregate bandwidth: 2 Tbps | Port-to-port latency: 700 ns
Capacity	Maximum frame size: 2112
Remote Management Protocol	SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI
Encryption Algorithm	SSL
Authentication Method	RADIUS, TACACS+, LDAP, DH-CHAP, FCAP
Features	ISL support, Syslog support, manageable, Quality of Service (QoS), Registered State Change Notification (RSCN) support, SFTP client, SFTP server, Fabric Shortest Path First (FSPF), Fabric-Device Management Interface (FDMI), Secure Copy (SCP), Role-Based Access Control (RBAC), Dynamic path selection (DPS), Reliable Commit Service (RCS), Simple Name Server (SNS), Fabric Performance Impact (FPI) monitoring, Slow Drain Device Quarantine (SDDQ), Dynamic Fabric Provisioning (DFP), Enhanced BB Credit Recovery
Expansion / Connectivity
Interfaces	48 x 32Gb Fibre Channel SFP+ | 4 x 32Gb Fibre Channel QSFP+ | 1 x 100Base-TX RJ-45 management | 1 x console RJ-45 management | 1 x USB Type A
Power
Power Device	Internal power supply - hot-plug
Installed Qty	2 (installed) / 2 (max)
Power Redundancy	Yes
Power Redundancy Scheme	1+1
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous
Cables Included	1 x serial cable
Rack Mounting Kit	Included
Software / System Requirements
Software Included	Advanced Fabric OS, Advanced Web Tools, Advanced Zoning
Dimensions & Weight
Width	17.3 in
Depth	14 in
Height	1.7 in
Weight	17.04 lbs
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 1 year - on-site
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85% (non-condensing)
Min Storage Temperature	-13 °F
Max Storage Temperature	158 °F
