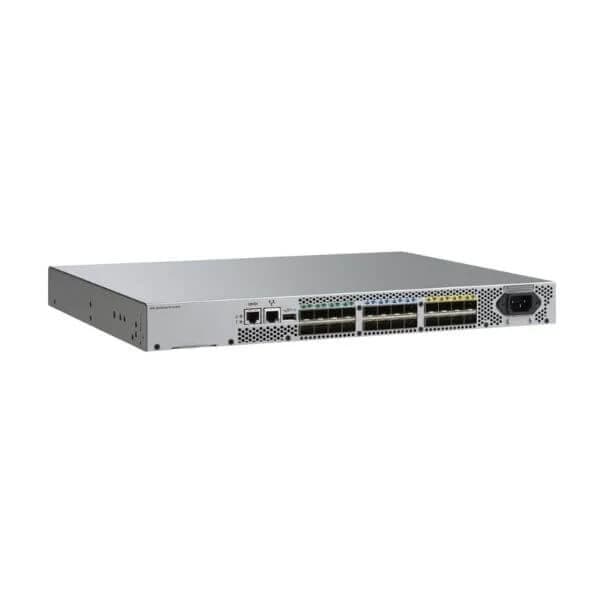

Q1H71B

Specification Of Q1H71B

General
Device Type	Switch - 24 ports - managed
Enclosure Type	Rack-mountable 1U
Subtype	Fibre Channel
Ports	8 x 32Gb Fibre Channel SFP+ + 16 x 32Gb Fibre Channel SFP+ Ports on Demand
Performance	Port-to-port latency: 900 ns
Capacity	Maximum frame size: 2112 | Frame buffers: 2000
Remote Management Protocol	SNMP 1, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SFTP
Encryption Algorithm	SSL
Authentication Method	RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, DH-CHAP, FCAP
Features	Full duplex capability, Syslog support, IP address filtering, firmware upgradable, Quality of Service (QoS), Registered State Change Notification (RSCN) support, Class of Service (CoS), Extended Fabric, Adaptive Networking, ISL Trunking, Fabric Shortest Path First (FSPF), Fabric-Device Management Interface (FDMI), Dynamic path selection (DPS), Reliable Commit Service (RCS), Simple Name Server (SNS), Fabric Performance Impact (FPI) monitoring, Slow Drain Device Quarantine (SDDQ), Dynamic Fabric Provisioning (DFP), Enhanced BB Credit Recovery, IP Security (IPSec) support, ingress rate limiting, traffic isolation zones, Monitoring and Alerting Policy Suite (MAPS), Flow Vision, SNS Read Diagnostics Parameter (RDP), Virtual Machine Identity (VMID) support
Status Indicators	Power, status
Expansion / Connectivity
Interfaces	8 x 32Gb Fibre Channel SFP+ | 16 x 32Gb Fibre Channel SFP+ Ports on Demand | 1 x serial (RS-232) | 1 x management (Gigabit LAN) | 1 x USB
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous
Cables Included	1 x serial cable
Rack Mounting Kit	Included
Software / System Requirements
Software Included	Advanced Fabric OS, Advanced Web Tools, Advanced Zoning
Dimensions & Weight
Width	16.9 in
Depth	12.1 in
Height	1.7 in
Weight	12.7 lbs
Manufacturer Warranty
Service & Support	Limited warranty - parts and labor - 3 years - on-site
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 85% (non-condensing)
Min Storage Temperature	-13 °F
Max Storage Temperature	158 °F
Humidity Range Storage	10 - 90% (non-condensing)
